#include "los_typedef.h"
#include "los_hwi.h"
#include "los_task.h"

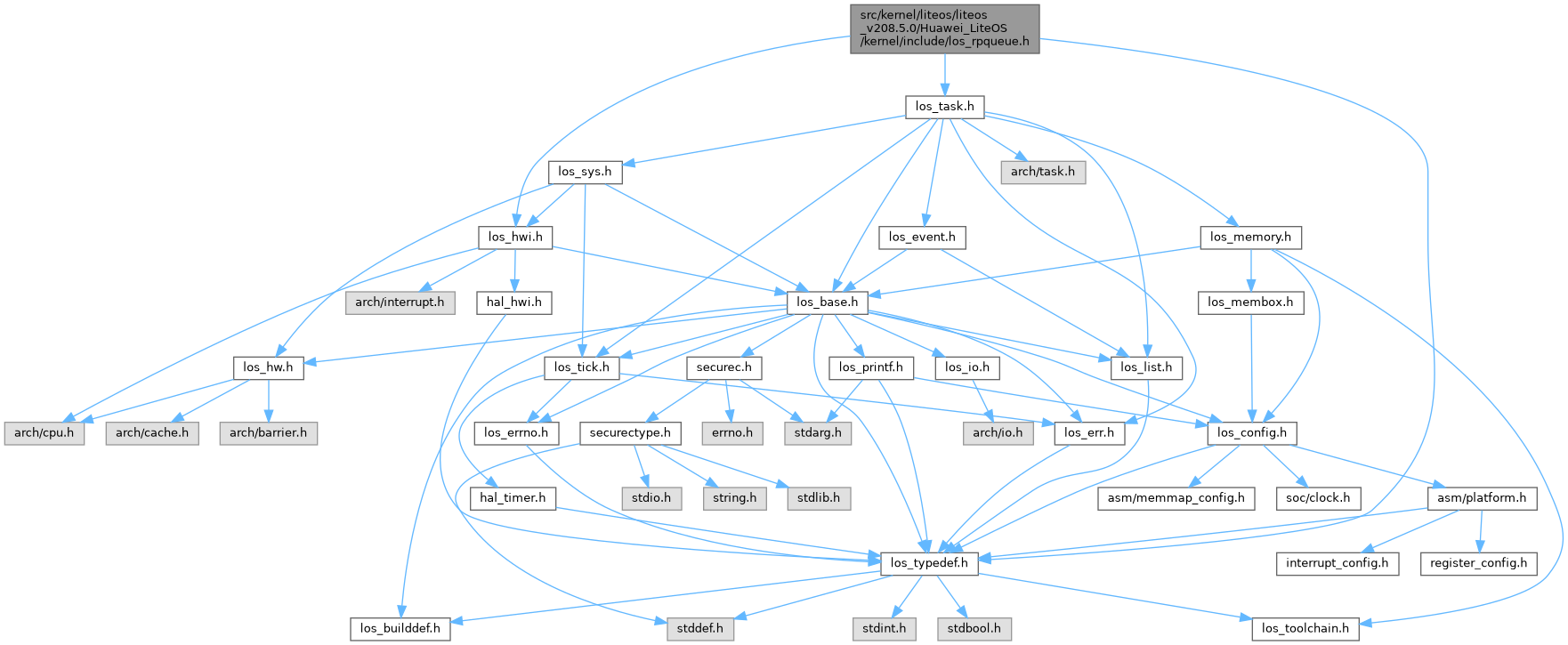

los_rpqueue.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	LOS_RPQUEUE_OPTION_SYNC_MSG_SEND 0x0001U

#define	LOS_RPQUEUE_ALIGN_SIZE 8U

#define	LOS_ERRNO_RPQUEUE_PTR_NULL LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x01)

#define	LOS_ERRNO_RPQUEUE_CB_DAMAGED LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x02)

#define	LOS_ERRNO_RPQUEUE_INVALID LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x03)

#define	LOS_ERRNO_RPQUEUE_WRITE_BUSY LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x04)

#define	LOS_ERRNO_RPQUEUE_BUF_EMPTY LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x05)

#define	LOS_ERRNO_RPQUEUE_BUF_NOT_ENOUGH LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x06)

#define	LOS_ERRNO_RPQUEUE_WRITE_ERROR LOS_ERRNO_OS_FATAL(LOS_MOD_RPQUEUE, 0x07)

#define	LOS_ERRNO_RPQUEUE_SIZE_TOO_SMALL LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x08)

#define	LOS_ERRNO_RPQUEUE_READ_LOCK LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x09)

#define	LOS_ERRNO_RPQUEUE_HEADER_DAMAGED LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x0A)

#define	LOS_ERRNO_RPQUEUE_INITED LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x0B)

#define	LOS_ERRNO_RPQUEUE_SIZE_TOO_LARGE LOS_ERRNO_OS_ERROR(LOS_MOD_RPQUEUE, 0x0C)

类型定义
typedef void(*	LosRpqueueCallback) (UINT8 cmd, UINT8 *data, UINT16 len)

函数
UINT32	LOS_RpqueueInit (void *queue, UINT32 size, UINT32 option)
	Rpqueue init.

UINT32	LOS_RpqueueMaxSendSizeGet (void queue, UINT16 maxSendSize)
	get Rpqueue current max send size.

UINT32	LOS_RpqueueSend (void queue, const UINT8 data, UINT16 len, const LosRpqueueSendCfg *cfg)
	Rpqueue send message.

UINT32	LOS_RpqueueRecv (void *queue, LosRpqueueCallback recvDataCb)
	Rpqueue data receive.

结构体

宏定义
