cali_accum_data.h 文件参考

#include "cali_outer_os_if.h"
#include "cali_outer_hal_if.h"

cali_accum_data.h 的引用(Include)关系图:

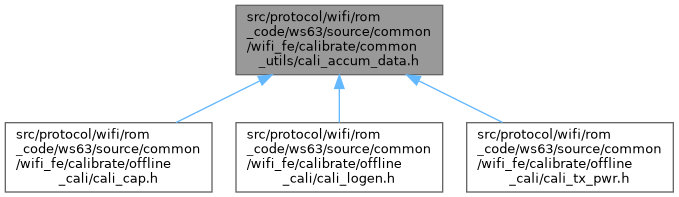

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	cali_accum_para_stru

宏定义
#define	HH503_CALI_ACCUM_INDEX_I   0x01
#define	HH503_CALI_ACCUM_INDEX_Q   0x02
#define	HAL_CALI_ACCUM_TIMES_MIN_SHIFT   8 /* 最小累加值 2^8 对应配置寄存器cfg_fb_pwr_calc_prd:0 */
#define	HH503_CALI_ACCUM_TIMES_DEBUG_SHIFT   8
#define	HH503_CALI_ACCUM_TIMES_DEBUG_CONFIG   (HH503_CALI_ACCUM_TIMES_DEBUG_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HH503_CALI_RXDC_ACCUM_TIMES_SHIFT   8
#define	HH503_CALI_RXDC_ACCUM_TIMES_CONFIG   (HH503_CALI_RXDC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HH503_CALI_TXDC_ACCUM_TIMES_SHIFT   9
#define	HH503_CALI_TXDC_ACCUM_TIMES_CONFIG   (HH503_CALI_TXDC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HH503_CALI_TX_POWER_ACCUM_TIMES_SHIFT   8
#define	HH503_CALI_TX_POWER_ACCUM_TIMES_CONFIG   (HH503_CALI_TX_POWER_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HAL_CALI_RC_ACCUM_TIMES_SHIFT   8
#define	HAL_CALI_RC_ACCUM_TIMES_CONFIG   (HAL_CALI_RC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HAL_CALI_LOGEN_ACCUM_TIMES_SHIFT   8
#define	HAL_CALI_LOGEN_ACCUM_TIMES_CONFIG   (HAL_CALI_LOGEN_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)
#define	HAL_CALI_LOGEN_ACCUM_DELAY   0
#define	HH503_CALI_ACCUM_LEN_AGC   31
#define	HH503_CALI_ACCUM_TIMES_AGC   0
#define	HH503_CALI_ACCUM_WAIT_TIMEOUT   1000
#define	HAL_CALI_HW_ALTX_ACCUM_DELAY   (0x200)
#define	HAL_CALI_HW_ALTX_ACCUM_TIMES_SHIFT   (0xB)
#define	HAL_CALI_HW_ALTX_ACCUM_TIMES_CONFIG   (HAL_CALI_HW_ALTX_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

函数
osal_void	cali_print_accum_data (const hal_device_stru *device)
osal_void	cali_report_one_accum (const hal_device_stru *device, cali_accum_para_stru *acc_param)
osal_void	cali_sum_accum_data (const hal_device_stru *device, osal_s32 *acc_i, osal_s32 *acc_q)
osal_s32	cali_get_acc_val_i (osal_void)
osal_s32	cali_get_acc_val_q (osal_void)
osal_void	cali_logen_get_accum_para (cali_accum_para_stru *accum_param)
osal_void	cali_txpwr_get_accum_para (cali_accum_para_stru *accum_param)
osal_void	cali_rc_get_accum_para (cali_accum_para_stru *accum_param)
osal_void	cali_hw_al_tx_report_one_accum (const hal_device_stru *device, cali_accum_para_stru *acc_param)

宏定义说明

HAL_CALI_ACCUM_TIMES_MIN_SHIFT

#define HAL_CALI_ACCUM_TIMES_MIN_SHIFT   8 /* 最小累加值 2^8 对应配置寄存器cfg_fb_pwr_calc_prd:0 */

HAL_CALI_HW_ALTX_ACCUM_DELAY

#define HAL_CALI_HW_ALTX_ACCUM_DELAY   (0x200)

HAL_CALI_HW_ALTX_ACCUM_TIMES_CONFIG

#define HAL_CALI_HW_ALTX_ACCUM_TIMES_CONFIG   (HAL_CALI_HW_ALTX_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HAL_CALI_HW_ALTX_ACCUM_TIMES_SHIFT

#define HAL_CALI_HW_ALTX_ACCUM_TIMES_SHIFT   (0xB)

HAL_CALI_LOGEN_ACCUM_DELAY

#define HAL_CALI_LOGEN_ACCUM_DELAY   0

HAL_CALI_LOGEN_ACCUM_TIMES_CONFIG

#define HAL_CALI_LOGEN_ACCUM_TIMES_CONFIG   (HAL_CALI_LOGEN_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HAL_CALI_LOGEN_ACCUM_TIMES_SHIFT

#define HAL_CALI_LOGEN_ACCUM_TIMES_SHIFT   8

HAL_CALI_RC_ACCUM_TIMES_CONFIG

#define HAL_CALI_RC_ACCUM_TIMES_CONFIG   (HAL_CALI_RC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HAL_CALI_RC_ACCUM_TIMES_SHIFT

#define HAL_CALI_RC_ACCUM_TIMES_SHIFT   8

HH503_CALI_ACCUM_INDEX_I

#define HH503_CALI_ACCUM_INDEX_I   0x01

HH503_CALI_ACCUM_INDEX_Q

#define HH503_CALI_ACCUM_INDEX_Q   0x02

HH503_CALI_ACCUM_LEN_AGC

#define HH503_CALI_ACCUM_LEN_AGC   31

HH503_CALI_ACCUM_TIMES_AGC

#define HH503_CALI_ACCUM_TIMES_AGC   0

HH503_CALI_ACCUM_TIMES_DEBUG_CONFIG

#define HH503_CALI_ACCUM_TIMES_DEBUG_CONFIG   (HH503_CALI_ACCUM_TIMES_DEBUG_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HH503_CALI_ACCUM_TIMES_DEBUG_SHIFT

#define HH503_CALI_ACCUM_TIMES_DEBUG_SHIFT   8

HH503_CALI_ACCUM_WAIT_TIMEOUT

#define HH503_CALI_ACCUM_WAIT_TIMEOUT   1000

HH503_CALI_RXDC_ACCUM_TIMES_CONFIG

#define HH503_CALI_RXDC_ACCUM_TIMES_CONFIG   (HH503_CALI_RXDC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HH503_CALI_RXDC_ACCUM_TIMES_SHIFT

#define HH503_CALI_RXDC_ACCUM_TIMES_SHIFT   8

HH503_CALI_TX_POWER_ACCUM_TIMES_CONFIG

#define HH503_CALI_TX_POWER_ACCUM_TIMES_CONFIG   (HH503_CALI_TX_POWER_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HH503_CALI_TX_POWER_ACCUM_TIMES_SHIFT

#define HH503_CALI_TX_POWER_ACCUM_TIMES_SHIFT   8

HH503_CALI_TXDC_ACCUM_TIMES_CONFIG

#define HH503_CALI_TXDC_ACCUM_TIMES_CONFIG   (HH503_CALI_TXDC_ACCUM_TIMES_SHIFT - HAL_CALI_ACCUM_TIMES_MIN_SHIFT)

HH503_CALI_TXDC_ACCUM_TIMES_SHIFT

#define HH503_CALI_TXDC_ACCUM_TIMES_SHIFT   9

函数说明

cali_get_acc_val_i()

osal_s32 cali_get_acc_val_i

(

osal_void

)

cali_get_acc_val_q()

osal_s32 cali_get_acc_val_q

(

osal_void

)

cali_hw_al_tx_report_one_accum()

osal_void cali_hw_al_tx_report_one_accum	(	const hal_device_stru *	device,
		cali_accum_para_stru *	acc_param
	)

cali_logen_get_accum_para()

osal_void cali_logen_get_accum_para

(

cali_accum_para_stru *

accum_param

)

cali_print_accum_data()

osal_void cali_print_accum_data

(

const hal_device_stru *

device

)

cali_rc_get_accum_para()

osal_void cali_rc_get_accum_para

(

cali_accum_para_stru *

accum_param

)

cali_report_one_accum()

osal_void cali_report_one_accum	(	const hal_device_stru *	device,
		cali_accum_para_stru *	acc_param
	)

cali_sum_accum_data()

osal_void cali_sum_accum_data	(	const hal_device_stru *	device,
		osal_s32 *	acc_i,
		osal_s32 *	acc_q
	)

cali_txpwr_get_accum_para()

osal_void cali_txpwr_get_accum_para

(

cali_accum_para_stru *

accum_param

)
