#include "hmac_radar_sensor.h"#include "math.h"#include "mac_resource_ext.h"#include "hal_radar_sensor_rom.h"#include "hmac_hook.h"#include "hmac_config.h"#include "hmac_power.h"#include "hmac_alg_notify.h"#include "hmac_vap.h"#include "hmac_ccpriv.h"#include "frw_util_notifier.h"#include "hal_mac_rom.h"#include "hal_phy.h"#include "hal_mac.h"#include "hal_rf.h"#include "cali_data.h"#include "cali_comp.h"#include "memory_config_common.h"#include "hmac_chan_mgmt.h"#include "hal_chan_mgmt.h"#include "hmac_feature_interface.h"#include "hal_rx_rom.h"#include "hal_device_fsm.h"

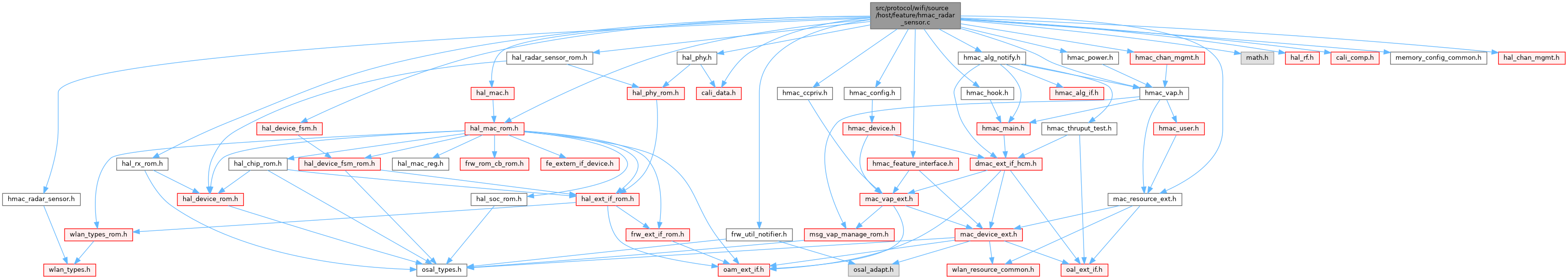

hmac_radar_sensor.c 的引用(Include)关系图:
结构体 | |
| struct | hmac_radar_sensor_info_stru |
| struct | hmac_radar_sensor_ppa_val_stru |
宏定义说明
◆ ADC_INPUT_VALUE
| #define ADC_INPUT_VALUE (4) |
◆ DAC_OUTPUT_VALUE
| #define DAC_OUTPUT_VALUE (-8) |
◆ DATA_LEN_TO_SIG_LEN_RATIO
| #define DATA_LEN_TO_SIG_LEN_RATIO 4 /* 4:数据长度转换采样点数比例,一个采样点4个字节 */ |
◆ DEVICE_SUPPORT_MAX_RX_NSS_NUM
| #define DEVICE_SUPPORT_MAX_RX_NSS_NUM 3 |
◆ DEVICE_SUPPORT_RX_NSS_NUM
| #define DEVICE_SUPPORT_RX_NSS_NUM 0 |
◆ MAX_RADAR_PERIOD
| #define MAX_RADAR_PERIOD 10000 /* 支持配置最大10ms的雷达周期，单位us */ |
◆ MAX_RADAR_SENSOR_CYCLE_CNT
| #define MAX_RADAR_SENSOR_CYCLE_CNT 3 /* 支持配置雷达循环次数最大为3次 */ |
◆ MAX_RADAR_SENSOR_PHY_CNT
| #define MAX_RADAR_SENSOR_PHY_CNT 32 /* 支持配置最大phy侧内部循环次数为32 */ |
◆ MAX_RADAR_WORK_MAX_CHAN
| #define MAX_RADAR_WORK_MAX_CHAN 13 |
◆ MAX_RADAR_WORK_MIN_CHAN
| #define MAX_RADAR_WORK_MIN_CHAN 1 |
◆ MAX_VGA_GAIN_VALUE
| #define MAX_VGA_GAIN_VALUE 30 |
◆ MIN_RADAR_PERIOD
| #define MIN_RADAR_PERIOD 1000 /* 支持配置最小1ms的雷达周期，单位us */ |
◆ MIN_RADAR_SENSOR_PHY_CNT
| #define MIN_RADAR_SENSOR_PHY_CNT 1 /* 支持配置最小phy侧内部循环次数为1 */ |
◆ MIN_VGA_GAIN_VALUE
| #define MIN_VGA_GAIN_VALUE (-2) |
◆ PA_CODE_VALUE
| #define PA_CODE_VALUE 15 |
◆ PPA_VALUE_CNT
| #define PPA_VALUE_CNT 10 |
◆ RADAR_MAX_VGA_DB
| #define RADAR_MAX_VGA_DB 24 |
◆ RADAR_RX_DC_COMP_SHIFT_BIT
| #define RADAR_RX_DC_COMP_SHIFT_BIT 8 |
◆ RADAR_RX_LPF_PWR
| #define RADAR_RX_LPF_PWR 3 |
◆ RADAR_SENSOR_MAX_DAC_GAIN
| #define RADAR_SENSOR_MAX_DAC_GAIN 3 |
◆ RADAR_SENSOR_MAX_LNA_GAIN
| #define RADAR_SENSOR_MAX_LNA_GAIN 7 |
◆ RADAR_SENSOR_MAX_LPF_GAIN
| #define RADAR_SENSOR_MAX_LPF_GAIN 7 |
◆ RADAR_SENSOR_MAX_PA_GAIN
| #define RADAR_SENSOR_MAX_PA_GAIN 255 |
◆ RADAR_SENSOR_MAX_PPA_GAIN
| #define RADAR_SENSOR_MAX_PPA_GAIN 65535 |
◆ RADAR_SENSOR_MAX_T1
| #define RADAR_SENSOR_MAX_T1 255 |
◆ RADAR_SENSOR_MAX_T2
| #define RADAR_SENSOR_MAX_T2 255 |
◆ RADAR_SENSOR_MAX_T3
| #define RADAR_SENSOR_MAX_T3 65535 |
◆ RADAR_SENSOR_MAX_T4
| #define RADAR_SENSOR_MAX_T4 255 |
◆ RADAR_SENSOR_MAX_VGA_GAIN
| #define RADAR_SENSOR_MAX_VGA_GAIN 31 |
◆ RADAR_SENSOR_RX_DELAY_160M
| #define RADAR_SENSOR_RX_DELAY_160M 1023 |
◆ RADAR_SENSOR_RX_DELAY_80M
| #define RADAR_SENSOR_RX_DELAY_80M 1023 |
◆ RADAR_SENSOR_RX_MEM_ADDR
| #define RADAR_SENSOR_RX_MEM_ADDR RADAR_SENSOR_RX_MEM_START |
◆ RADAR_SENSOR_TX_MEM_ADDR
| #define RADAR_SENSOR_TX_MEM_ADDR 0xA98000 |
◆ RADAR_TX_PWR
| #define RADAR_TX_PWR 11.5 |
◆ RADAR_VGA_REF_DB
| #define RADAR_VGA_REF_DB 32 |
◆ RX_MAX_RADAR_WAVEFORM_LEN
| #define RX_MAX_RADAR_WAVEFORM_LEN RADAR_SENSOR_RX_MEM_SIZE |
◆ THIS_FILE_ID
| #define THIS_FILE_ID OAM_FILE_ID_HMAC_RADAR_SENSOR_C |
◆ THIS_MOD_ID
| #define THIS_MOD_ID DIAG_MOD_ID_WIFI_HOST |
◆ TX_MAX_RADAR_WAVEFORM_LEN
| #define TX_MAX_RADAR_WAVEFORM_LEN (1024 * 2) |
函数说明
◆ hamc_radar_sensor_get_ppa_gain()
| osal_u16 hamc_radar_sensor_get_ppa_gain | ( | void | ) |
◆ hmac_radar_sensor_calc_t3()
| OSAL_STATIC osal_void hmac_radar_sensor_calc_t3 | ( | osal_u16 | radar_data_len, |
| osal_u8 | one_per_cnt, | ||
| osal_u16 * | t3 | ||
| ) |
◆ hmac_radar_sensor_calc_trx_chain()
| OSAL_STATIC osal_float hmac_radar_sensor_calc_trx_chain | ( | osal_u8 | lna_gain, |
| osal_u8 | vga_gain | ||
| ) |
◆ hmac_radar_sensor_cca_sw_opt()
◆ hmac_radar_sensor_clear_rx_mem()
| OSAL_STATIC osal_void hmac_radar_sensor_clear_rx_mem | ( | osal_void | ) |
◆ hmac_radar_sensor_clear_tx_mem()
| OSAL_STATIC osal_void hmac_radar_sensor_clear_tx_mem | ( | osal_void | ) |
◆ hmac_radar_sensor_complete_handle()
| OSAL_STATIC osal_s32 hmac_radar_sensor_complete_handle | ( | hmac_vap_stru * | hmac_vap, |
| frw_msg * | msg | ||
| ) |
◆ hmac_radar_sensor_config_ch_num()
◆ hmac_radar_sensor_config_freq()
| OSAL_STATIC osal_u32 hmac_radar_sensor_config_freq | ( | osal_void | ) |
◆ hmac_radar_sensor_config_mac()
| OSAL_STATIC osal_void hmac_radar_sensor_config_mac | ( | osal_u32 | radar_period, |
| osal_u16 | radar_data_len, | ||
| osal_u8 | one_per_cnt | ||
| ) |
◆ hmac_radar_sensor_config_phy()
| OSAL_STATIC osal_void hmac_radar_sensor_config_phy | ( | osal_u16 | radar_data_len, |
| osal_u8 | one_per_cnt, | ||
| osal_u8 | rx_nss | ||
| ) |
◆ hmac_radar_sensor_config_related_reg()
| OSAL_STATIC osal_void hmac_radar_sensor_config_related_reg | ( | osal_bool | is_on | ) |
◆ hmac_radar_sensor_config_rx_gain()
| osal_float hmac_radar_sensor_config_rx_gain | ( | osal_u8 | lna_gain, |
| osal_u8 | vga_gain, | ||
| osal_u16 | rx_dly_160m, | ||
| osal_u16 | rx_dly_80m | ||
| ) |
◆ hmac_radar_sensor_config_soc()
| OSAL_STATIC osal_u32 hmac_radar_sensor_config_soc | ( | osal_u8 * | waveform_data, |
| osal_u16 | waveform_len, | ||
| osal_u8 | one_per_cnt | ||
| ) |
◆ hmac_radar_sensor_deinit()
◆ hmac_radar_sensor_del_vap()
| OAL_STATIC osal_void hmac_radar_sensor_del_vap | ( | osal_void | ) |
◆ hmac_radar_sensor_disable()
| OSAL_STATIC osal_void hmac_radar_sensor_disable | ( | osal_void | ) |
◆ hmac_radar_sensor_enable()
| OSAL_STATIC osal_u32 hmac_radar_sensor_enable | ( | hmac_radar_sensor_cfg_stru * | data | ) |
◆ hmac_radar_sensor_get_debug_info()
| OSAL_STATIC hmac_radar_sensor_debug_stru * hmac_radar_sensor_get_debug_info | ( | osal_void | ) |
◆ hmac_radar_sensor_get_info()
| OSAL_STATIC hmac_radar_sensor_info_stru * hmac_radar_sensor_get_info | ( | osal_void | ) |
◆ hmac_radar_sensor_get_rx_mem_addr()
| OSAL_STATIC osal_u8 * hmac_radar_sensor_get_rx_mem_addr | ( | osal_void | ) |
◆ hmac_radar_sensor_get_tx_mem_addr()
| OSAL_STATIC osal_u8 * hmac_radar_sensor_get_tx_mem_addr | ( | osal_void | ) |
◆ hmac_radar_sensor_get_wifi_mode_info()
| radar_sensor_wifi_mode_t hmac_radar_sensor_get_wifi_mode_info | ( | osal_void | ) |
◆ hmac_radar_sensor_get_work_ch_num()
| OSAL_STATIC osal_u8 hmac_radar_sensor_get_work_ch_num | ( | osal_void | ) |
◆ hmac_radar_sensor_get_work_chan()
| OSAL_STATIC osal_u32 hmac_radar_sensor_get_work_chan | ( | osal_u8 * | channel_num | ) |
◆ hmac_radar_sensor_info_deinit()
| OSAL_STATIC osal_void hmac_radar_sensor_info_deinit | ( | osal_void | ) |
◆ hmac_radar_sensor_info_init()
| OSAL_STATIC osal_void hmac_radar_sensor_info_init | ( | osal_u16 | period_cycle_cnt | ) |
◆ hmac_radar_sensor_init()
◆ hmac_radar_sensor_one_subframe_start()
◆ hmac_radar_sensor_param_check()
| OSAL_STATIC osal_u32 hmac_radar_sensor_param_check | ( | hmac_radar_sensor_cfg_stru * | radar_sensor_cfg | ) |
◆ hmac_radar_sensor_register_handle_cb()
| osal_u32 hmac_radar_sensor_register_handle_cb | ( | radar_handle_cb | cb | ) |
◆ hmac_radar_sensor_scan_begin()
| OSAL_STATIC osal_bool hmac_radar_sensor_scan_begin | ( | osal_void * | notify_data | ) |
◆ hmac_radar_sensor_scan_end()
| OSAL_STATIC osal_bool hmac_radar_sensor_scan_end | ( | osal_void * | notify_data | ) |
◆ hmac_radar_sensor_set_report_disable_reason_fn()
| osal_void hmac_radar_sensor_set_report_disable_reason_fn | ( | report_radar_sensor_disable_reason_cb | cb | ) |
◆ hmac_radar_sensor_set_rx_dc_val()
| osal_u32 hmac_radar_sensor_set_rx_dc_val | ( | osal_u8 | rxdc_gain_lna_lvl_num, |
| osal_u8 | rxdc_gain_vga_lvl_num | ||
| ) |
◆ hmac_radar_sensor_set_rx_iq_val()
◆ hmac_radar_sensor_set_tx_dc_val()
| OSAL_STATIC osal_u32 hmac_radar_sensor_set_tx_dc_val | ( | osal_void | ) |
◆ hmac_radar_sensor_set_tx_iq_val()
| OSAL_STATIC osal_u32 hmac_radar_sensor_set_tx_iq_val | ( | osal_void | ) |
◆ hmac_radar_sensor_set_tx_power_val()
| OSAL_STATIC osal_u32 hmac_radar_sensor_set_tx_power_val | ( | osal_u16 * | atx_pwr_cmp | ) |
◆ hmac_radar_sensor_start()
| osal_s32 hmac_radar_sensor_start | ( | hmac_radar_sensor_cfg_stru * | radar_sensor_cfg | ) |
◆ hmac_set_tx_gain_info()
| OSAL_STATIC void hmac_set_tx_gain_info | ( | osal_u8 | lpf_gain, |
| osal_u8 | dac_gain, | ||
| osal_u8 | pa_gain, | ||
| osal_u16 | ppa_gain | ||
| ) |
◆ report_radar_sensor_disable_reason()
| OSAL_STATIC osal_void report_radar_sensor_disable_reason | ( | radar_sensor_disable_reason_enum_uint8 | reason | ) |
变量说明
◆ g_is_cb_registered
| OSAL_STATIC osal_bool g_is_cb_registered = OSAL_FALSE |
◆ g_radar_handle_cb
| OSAL_STATIC radar_handle_cb g_radar_handle_cb = 0 |
◆ g_radar_rx_mem
| uintptr_t g_radar_rx_mem = RADAR_SENSOR_RX_MEM_START |
◆ g_radar_sensor_info
| hmac_radar_sensor_info_stru g_radar_sensor_info |
◆ g_radar_tx_mem
| uintptr_t g_radar_tx_mem = 0xA98000 |
◆ g_report_radar_sensor_disable_reason
| OSAL_STATIC report_radar_sensor_disable_reason_cb g_report_radar_sensor_disable_reason = OSAL_NULL |
◆ g_wifi_mode_info
| OSAL_STATIC radar_sensor_wifi_mode_t g_wifi_mode_info = RADAR_SENSOR_WIFI_STA_MODE |
