#include "hal_soc_rom.h"
#include "hal_mac_rom.h"
#include "hal_phy_rom.h"
#include "oal_ext_if_rom.h"
#include "hal_ext_if_rom.h"
#include "wlan_types_rom.h"

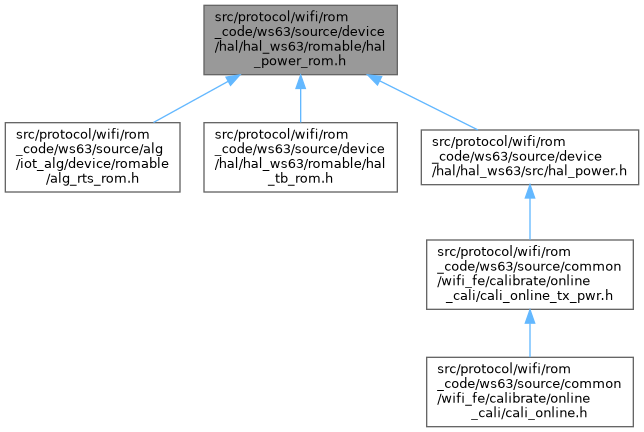

hal_power_rom.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	tpc_code_params_stru

struct	mcs_tx_pow_stru

宏定义
#define	HAL_NUM_OF_CUST_TXPOWER_SCALING_TABLE 1024 /* 协议速率查询表最大发射功率参数的个数 */

#define	HAL_INIT_NVM_MAX_TXPWR_BASE_2P4G 190 /* 基准最大发射功率初始值 0.1dbm */

#define	HAL_INIT_NVM_MAX_TXPWR_BASE_5G 170

#define	HAL_MAX_TXPOWER_MIN 130 /* 最大发送功率的最小有效值:130 13.0dbm */

#define	HAL_MAX_TXPOWER_MAX 238 /* 最大发送功率的最大有效值:238 23.8dbm */

#define	HH503_PHY_POWER_REF_2G_DEFAULT 0x14E8FC /* POWER REF 2G默认值取mt7对应值 */

#define	HH503_PHY_POWER_REF_5G_DEFAULT 0x0ce0f4

#define	HAL_TPC_CH_NUM 32 /* tpc_ch档位总计有32档 */

#define	HAL_PGA_STEP_NUM 64 /* PGA STEP档位总计有64档 */

#define	HAL_POWER_CHANGE_COEF 10 /* POWER转换系数 */

#define	HAL_POW_LPF_LUT_NUM 8 /* 筛选使用的LPF档位数目 */

#define	HAL_POW_DAC_LUT_NUM 4 /* 筛选使用的DAC档位数目 */

#define	HAL_POW_DIST_5G_TABLE_LEN 13 /* 5G档位增益分配表长度 */

#define	HAL_POW_DIST_2G_TABLE_LEN 16 /* 2G档位增益分配表长度 */

#define	HAL_RESP_POWER_REG_NUM 2

#define	hal_get_cfr_idx_from_tpc(tpc) ((osal_u8)(oal_get_bits((tpc), NUM_2_BITS, BIT_OFFSET_10)))

#define	hal_get_dpd_tpc_lv_ch0_from_tpc(tpc) ((osal_u8)(oal_get_bits((tpc), NUM_2_BITS, BIT_OFFSET_8)))

#define	hal_get_tpc_ch0_from_tpc(tpc) ((osal_u8)(oal_get_bits((tpc), NUM_8_BITS, BIT_OFFSET_0)))

类型定义
typedef osal_void(*	hh503_get_cali_param_set_tpc_cb) (hal_to_dmac_device_stru *hal_device, wlan_channel_band_enum_uint8 band, osal_u8 channel_idx)

typedef osal_void(*	hh503_tb_mcs_tx_power_cb) (wlan_channel_band_enum_uint8 band)

typedef osal_void(*	hh503_tb_tx_power_init_cb) (wlan_channel_band_enum_uint8 band)

typedef osal_void(*	hh503_set_tx_dscr_power_tpc_cb) (osal_u8 rate_idx, wlan_channel_band_enum_uint8 band, osal_s16 tx_power, tpc_code_params_stru *tpc_param)

typedef osal_void(*	hh503_pow_sw_initialize_tx_power_cb) (hal_to_dmac_device_stru *hal_device)

typedef osal_void(*	hh503_pow_initialize_tx_power_cb) (hal_to_dmac_device_stru *hal_device)

typedef osal_void(*	hh503_pow_init_vap_pow_code_cb) (hal_to_dmac_device_stru hal_device, hal_vap_pow_info_stru vap_pow_info, hal_pow_set_type_enum_uint8 type, const mac_channel_stru *channel)

typedef osal_void(*	fe_hal_sync_tpc_pow_rate_table_cb) (osal_u8 *data, osal_u16 data_len)

typedef osal_u16(*	fe_tpc_rate_pow_get_rate_tpc_code_cb) (osal_u8 band, osal_u8 protocol_mode, osal_u8 mcs, osal_u8 bw, osal_u8 pwr_lvl)

函数
osal_u32	hh503_rf_get_center_freq_chan_num (osal_u8 chan_number, wlan_channel_bandwidth_enum_uint8 bandwidth, osal_u8 *center_freq_chn)

osal_void	hh503_pow_init_vap_pow_code_ext (hal_to_dmac_device_stru hal_device, hal_vap_pow_info_stru vap_pow_info, hal_pow_set_type_enum_uint8 type, const mac_channel_stru *channel)

osal_void	hal_sync_tpc_config_device (hal_to_dmac_device_stru hal_device, osal_u8 data, osal_u16 data_len)

osal_void	hh503_pow_set_resp_tpc_code_to_pow_mode (hh503_tx_resp_phy_mode_reg_stru pow_code, const tpc_code_params_stru tpc_code)

osal_void	hh503_set_ack_cts_pow_code (hal_to_dmac_device_stru *hal_device, wlan_channel_band_enum_uint8 band, osal_u8 subband_idx, wlan_user_distance_enum_uint8 distance_idx)

osal_u8	hal_device_get_pow_base_idx (osal_u8 protocol_idx, osal_u8 cap_idx)

宏定义说明

◆ hal_get_cfr_idx_from_tpc

#define hal_get_cfr_idx_from_tpc ( tpc ) ((osal_u8)(oal_get_bits((tpc), NUM_2_BITS, BIT_OFFSET_10)))

◆ hal_get_dpd_tpc_lv_ch0_from_tpc

#define hal_get_dpd_tpc_lv_ch0_from_tpc ( tpc ) ((osal_u8)(oal_get_bits((tpc), NUM_2_BITS, BIT_OFFSET_8)))

◆ hal_get_tpc_ch0_from_tpc

#define hal_get_tpc_ch0_from_tpc ( tpc ) ((osal_u8)(oal_get_bits((tpc), NUM_8_BITS, BIT_OFFSET_0)))

◆ HAL_INIT_NVM_MAX_TXPWR_BASE_2P4G

#define HAL_INIT_NVM_MAX_TXPWR_BASE_2P4G 190 /* 基准最大发射功率初始值 0.1dbm */

◆ HAL_INIT_NVM_MAX_TXPWR_BASE_5G

#define HAL_INIT_NVM_MAX_TXPWR_BASE_5G 170

◆ HAL_MAX_TXPOWER_MAX

#define HAL_MAX_TXPOWER_MAX 238 /* 最大发送功率的最大有效值:238 23.8dbm */

◆ HAL_MAX_TXPOWER_MIN

#define HAL_MAX_TXPOWER_MIN 130 /* 最大发送功率的最小有效值:130 13.0dbm */

◆ HAL_NUM_OF_CUST_TXPOWER_SCALING_TABLE

#define HAL_NUM_OF_CUST_TXPOWER_SCALING_TABLE 1024 /* 协议速率查询表最大发射功率参数的个数 */

◆ HAL_PGA_STEP_NUM

#define HAL_PGA_STEP_NUM 64 /* PGA STEP档位总计有64档 */

◆ HAL_POW_DAC_LUT_NUM

#define HAL_POW_DAC_LUT_NUM 4 /* 筛选使用的DAC档位数目 */

◆ HAL_POW_DIST_2G_TABLE_LEN

#define HAL_POW_DIST_2G_TABLE_LEN 16 /* 2G档位增益分配表长度 */

◆ HAL_POW_DIST_5G_TABLE_LEN

#define HAL_POW_DIST_5G_TABLE_LEN 13 /* 5G档位增益分配表长度 */

◆ HAL_POW_LPF_LUT_NUM

#define HAL_POW_LPF_LUT_NUM 8 /* 筛选使用的LPF档位数目 */

◆ HAL_POWER_CHANGE_COEF

#define HAL_POWER_CHANGE_COEF 10 /* POWER转换系数 */

◆ HAL_RESP_POWER_REG_NUM

#define HAL_RESP_POWER_REG_NUM 2

◆ HAL_TPC_CH_NUM

#define HAL_TPC_CH_NUM 32 /* tpc_ch档位总计有32档 */

◆ HH503_PHY_POWER_REF_2G_DEFAULT

#define HH503_PHY_POWER_REF_2G_DEFAULT 0x14E8FC /* POWER REF 2G默认值取mt7对应值 */

◆ HH503_PHY_POWER_REF_5G_DEFAULT

#define HH503_PHY_POWER_REF_5G_DEFAULT 0x0ce0f4

类型定义说明

◆ fe_hal_sync_tpc_pow_rate_table_cb

typedef osal_void(* fe_hal_sync_tpc_pow_rate_table_cb) (osal_u8 *data, osal_u16 data_len)

◆ fe_tpc_rate_pow_get_rate_tpc_code_cb

typedef osal_u16(* fe_tpc_rate_pow_get_rate_tpc_code_cb) (osal_u8 band, osal_u8 protocol_mode, osal_u8 mcs, osal_u8 bw, osal_u8 pwr_lvl)

◆ hh503_get_cali_param_set_tpc_cb

typedef osal_void(* hh503_get_cali_param_set_tpc_cb) (hal_to_dmac_device_stru *hal_device, wlan_channel_band_enum_uint8 band, osal_u8 channel_idx)

◆ hh503_pow_init_vap_pow_code_cb

typedef osal_void(* hh503_pow_init_vap_pow_code_cb) (hal_to_dmac_device_stru *hal_device, hal_vap_pow_info_stru *vap_pow_info, hal_pow_set_type_enum_uint8 type, const mac_channel_stru *channel)

◆ hh503_pow_initialize_tx_power_cb

typedef osal_void(* hh503_pow_initialize_tx_power_cb) (hal_to_dmac_device_stru *hal_device)

◆ hh503_pow_sw_initialize_tx_power_cb

typedef osal_void(* hh503_pow_sw_initialize_tx_power_cb) (hal_to_dmac_device_stru *hal_device)

◆ hh503_set_tx_dscr_power_tpc_cb

typedef osal_void(* hh503_set_tx_dscr_power_tpc_cb) (osal_u8 rate_idx, wlan_channel_band_enum_uint8 band, osal_s16 tx_power, tpc_code_params_stru *tpc_param)

◆ hh503_tb_mcs_tx_power_cb

typedef osal_void(* hh503_tb_mcs_tx_power_cb) (wlan_channel_band_enum_uint8 band)

◆ hh503_tb_tx_power_init_cb

typedef osal_void(* hh503_tb_tx_power_init_cb) (wlan_channel_band_enum_uint8 band)

函数说明

◆ hal_device_get_pow_base_idx()

osal_u8 hal_device_get_pow_base_idx	(	osal_u8	protocol_idx,
		osal_u8	cap_idx
	)

◆ hal_sync_tpc_config_device()

osal_void hal_sync_tpc_config_device	(	hal_to_dmac_device_stru *	hal_device,
		osal_u8 *	data,
		osal_u16	data_len
	)

◆ hh503_pow_init_vap_pow_code_ext()

osal_void hh503_pow_init_vap_pow_code_ext	(	hal_to_dmac_device_stru *	hal_device,
		hal_vap_pow_info_stru *	vap_pow_info,
		hal_pow_set_type_enum_uint8	type,
		const mac_channel_stru *	channel
	)

◆ hh503_pow_set_resp_tpc_code_to_pow_mode()

osal_void hh503_pow_set_resp_tpc_code_to_pow_mode	(	hh503_tx_resp_phy_mode_reg_stru *	pow_code,
		const tpc_code_params_stru *	tpc_code
	)

◆ hh503_rf_get_center_freq_chan_num()

osal_u32 hh503_rf_get_center_freq_chan_num	(	osal_u8	chan_number,
		wlan_channel_bandwidth_enum_uint8	bandwidth,
		osal_u8 *	center_freq_chn
	)

◆ hh503_set_ack_cts_pow_code()

osal_void hh503_set_ack_cts_pow_code	(	hal_to_dmac_device_stru *	hal_device,
		wlan_channel_band_enum_uint8	band,
		osal_u8	subband_idx,
		wlan_user_distance_enum_uint8	distance_idx
	)
