#include "nv_notify.h"
#include "nv.h"
#include "errcode.h"

nv_storage.h 的引用(Include)关系图:

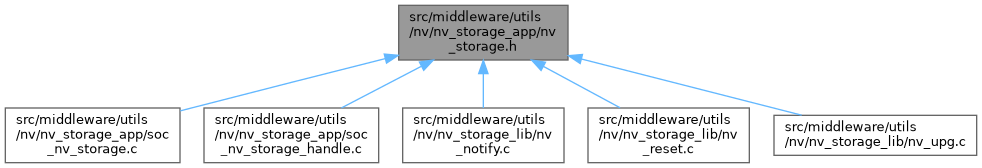

此图展示该文件直接或间接的被哪些文件引用了:

枚举
enum	nv_attributes_t { NV_ATTRIBUTE_NORMAL = 0x0 , NV_ATTRIBUTE_PERMANENT = 0x1 , NV_ATTRIBUTE_ENCRYPTED = 0x2 , NV_ATTRIBUTE_NON_UPGRADE = 0x4 }

函数
nv_direct_ctrl_t *	nv_direct_get_nv_ctrl (void)

errcode_t	uapi_nv_write_force (uint16_t key, const uint8_t *kvalue, uint16_t kvalue_length)

errcode_t	uapi_nv_delete_key (uint16_t key)

errcode_t	uapi_nv_update_key_attr (uint16_t key, nv_key_attr_t *attr, nv_storage_completed_callback func)

errcode_t	uapi_nv_get_key_attr (uint16_t key, uint16_t length, nv_key_attr_t attr)

bool	uapi_nv_is_stored (uint16_t key, uint16_t kvalue_length, const uint8_t *kvalue)
	compare a value associated with a specific key. CNcomment:检验特定NV的值 CNend

枚举类型说明

◆ nv_attributes_t

enum nv_attributes_t

KV key attribute flags A key with a normal or encrypted attribute can be set to a permanent attribute again. A key with a permanent attribute cannot be set to another attribute. Attribute 3 is considered to be both encrypted and permanent.

枚举值
NV_ATTRIBUTE_NORMAL
NV_ATTRIBUTE_PERMANENT
NV_ATTRIBUTE_ENCRYPTED
NV_ATTRIBUTE_NON_UPGRADE

函数说明

◆ nv_direct_get_nv_ctrl()

nv_direct_ctrl_t * nv_direct_get_nv_ctrl ( void )

◆ uapi_nv_delete_key()

errcode_t uapi_nv_delete_key ( uint16_t key )

Erase an stored value given its key

参数

key	key of the key to erase

返回: SOC_ERR_SUCCESS or an error code

◆ uapi_nv_get_key_attr()

errcode_t uapi_nv_get_key_attr	(	uint16_t	key,
		uint16_t *	length,
		nv_key_attr_t *	attr
	)

Get key information associated with a specific key

参数

key	key of the value to get
length	length of the current key
attr	The storage attributes of a key.

返回: SOC_ERR_SUCCESS or an error code

◆ uapi_nv_is_stored()

bool uapi_nv_is_stored	(	uint16_t	key,
		uint16_t	kvalue_length,
		const uint8_t *	kvalue
	)

compare a value associated with a specific key. CNcomment:检验特定NV的值 CNend

描述：: Check whether NV data has been stored. If the stored data is the same as the input parameter data,a success message is returned. CNcomment:检查NV数据是否已存储。如果存储的数据与入参数据相同，则返回成功 CNend

注意: None.

参数

key	[IN] The key to which the kvalue is associated. CNcomment:要检验的NV ID CNend
kvalue_length	[IN] Length of kvalue in bytes. CNcomment:要检验的NV长度 CNend
kvalue	[IN] The value to store.CNcomment:待进行对比的NV值 CNend

返回值

true	Success
false	Failure

依赖：

nv
nv.h

参见: None

◆ uapi_nv_update_key_attr()

errcode_t uapi_nv_update_key_attr	(	uint16_t	key,
		nv_key_attr_t *	attr,
		nv_storage_completed_callback	func
	)

Update the attributes of an existing key.

参数

key	key to associate make permanent
attr	Sets the storage attributes of a key.

返回: SOC_ERR_SUCCESS or an error code

注解: This key can not then be deleted or overwitten, and there is no mechanism to undo this

◆ uapi_nv_write_force()

errcode_t uapi_nv_write_force	(	uint16_t	key,
		const uint8_t *	kvalue,
		uint16_t	kvalue_length
	)

Force store a key value pair, even if the key has been set to permanent.

参数

key	key to associate kvalue to
kvalue	value to store
kvalue_length	length in bytes of kvalue

返回: SOC_ERR_SUCCESS or an error code
