#include <stdint.h>
#include "log_buffer_common.h"
#include "log_memory_section.h"

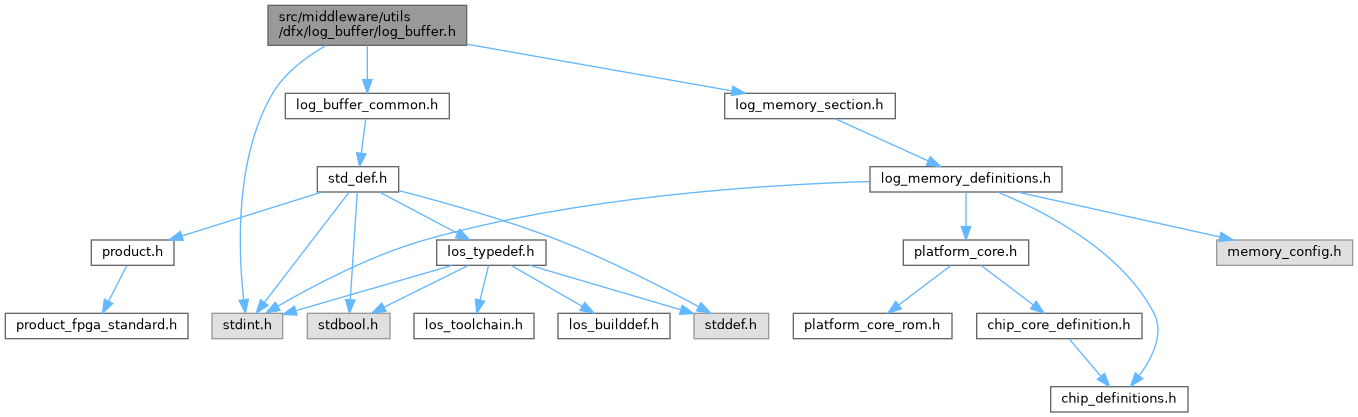

log_buffer.h 的引用(Include)关系图:

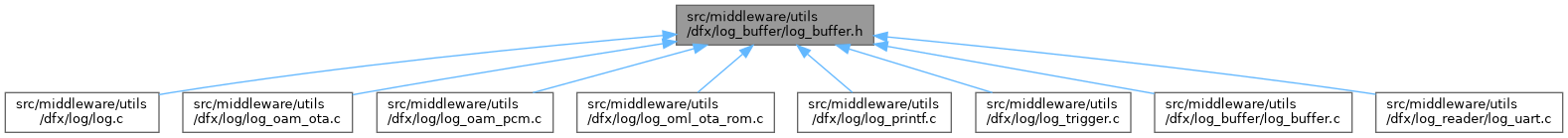

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	system_event_s_t

struct	chr_extend_data_t

宏定义
#define	CHR_VALUE_NULL 0

#define	CHR_VALUE_SHFIT_24BIT 24

#define	CHR_INFO1_SHFIT_16BIT 16

#define	CHR_INFO2_SHFIT_8BIT 8

#define	CHR_VALUE_MASK 0xff

#define	CHR_BUFFER_WL_RATIO 2

#define	CHR_EXTEND_PARAM_MAX_LEN 128

#define	chr_tws_value_group(EVENT, INFO1, INFO2, INFO3)

#define	chr_wear_value_group(EVENT, INFO1, INFO2, INFO3)

#define	EVENT_ID_BEGIN 943900000

#define	EVENT_ID_END 943999999

#define	get_event_id(id, info1) (EVENT_ID_BEGIN + (((id) << 8) \| (info1)))

类型定义
typedef struct system_event_s_t	system_error_s_t

枚举
enum	log_ret_t { LOG_RET_OK , LOG_RET_ERROR_IN_PARAMETERS , LOG_RET_ERROR_NOT_ENOUGH_SPACE , LOG_RET_ERROR_CORRUPT_SHARED_MEMORY , LOG_RET_ERROR_OVERFLOW }

enum	mass_data_ret_t { MASS_RET_OK , MASS_RET_ERROR_IN_PARAMETERS , MASS_RET_ERROR_NOT_ENOUGH_SPACE , MASS_RET_ERROR_CORRUPT_SHARED_MEMORY , MASS_MEM_COPY_FAIL , MASS_OVER_BUFFER_THD }

enum	mass_point_type_t { MASS_EVENT_POINT , MASS_ERROR_POINT , MASS_EVENT_POINT_EXTEND , MASS_ERROR_POINT_EXTEND }

enum	chr_type_t { CHR_DFT = 0x0 , CHR_UE_INT = 0x01 , CHR_UE_STR = 0x02 , CHR_UE_JSON = 0x03 , CHR_UE_BETA = 0x04 , CHR_END }

函数
void	log_buffer_init (log_memory_region_section_t logsec)
	Initialize the log buffer module to log in the given log memory region section.

void	chr_record_ue (uint8_t eid, uint8_t sub_eid, uint8_t code, uint32_t sub_code)
	record the system event

void	massdata_record_system_event (uint8_t event_id, uint8_t info1, uint8_t info2, uint32_t info3)
	record the system event.

void	massdata_record_system_error (uint8_t event_id, uint8_t info1, uint8_t info2, uint32_t info3)
	record the system error.

void	log_buffer_massdata_record_system_error_wear (uint8_t event_id, uint8_t info1, uint8_t info2, uint8_t info3)

void	mass_buffer_init (mass_data_memory_region_section_t sec)
	init the mass share mem.

uint32_t	mass_data_write_roll_buffer (const uint8_t *data, uint32_t length)
	write seg in the mass share mem.

uint32_t	massdata_triger_event (void)
	triger mass data to flush.

uint32_t	massdata_triger_queue (const uint8_t *pay_i, uint32_t type)
	triger mass data to flush by queue.

void	log_buffer_write (const log_buffer_header_t lb_header, const uint8_t buffer, bool *was_empty)
	Add data to the circular buffer with updating the write index.

log_ret_t	log_buffer_get_available_for_next_message (uint32_t *av)
	Get the available space for the next message

log_ret_t	compress_log_write (const uint8_t *data, uint32_t length)

void	log_buffer_record_system_event (uint32_t chr_event)
	Record chr event

void	log_buffer_record_system_error (uint32_t chr_error)
	Record chr error

void	massdata_record_system_info_with_extend (chr_extend_data_t *extend_data)
	Record chr info with extend parameter.
