#include "debug_print.h"
#include "securec.h"
#include "log_def.h"
#include "log_common.h"
#include "log_reg_dump.h"
#include "tcxo.h"
#include "non_os.h"
#include "log_oml_exception.h"
#include "los_task_pri.h"
#include "watchdog.h"
#include "watchdog_porting.h"
#include "uart.h"
#include "last_dump.h"
#include "last_dump_adapt.h"
#include "dfx_feature_config.h"

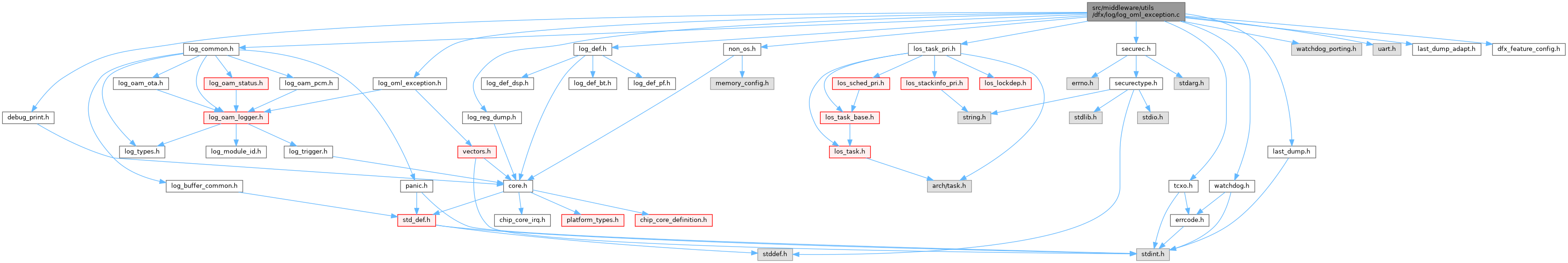

log_oml_exception.c 的引用(Include)关系图:

宏定义
#define	STACK_SIZE 3

#define	ONLY_ACORE_NUM 1

#define	GENERAL_REG_NUM 32

#define	DUMP_DELAY 6000ULL

#define	LOG_DELAY 2000ULL

函数
void	log_exception_dump (uint32_t irq_id, exc_context_t *exc_buf_addr)
	Invoked by exception to dump exception information.

void	log_exception_send_data (const uint8_t *data, uint16_t length)
	Dump the ram when hardfault or watchdog.

void	log_oml_dump_stack (void)
	Dump the current task stack when in systemfaults and watchdog timeout.

void	log_oml_memory_dump (void)
	Dump the whole rom when hardfault or watchdog.

void	log_oml_exception_info_send (uint32_t irq_id, const exc_context_t *exc_buf_addr)
	SDT interface to send SDT format fault message.

void	default_register_hal_exception_dump_callback (void)
	Register exception dump to fault interrupt.

宏定义说明

◆ DUMP_DELAY

#define DUMP_DELAY 6000ULL

◆ GENERAL_REG_NUM

#define GENERAL_REG_NUM 32

◆ LOG_DELAY

#define LOG_DELAY 2000ULL

◆ ONLY_ACORE_NUM

#define ONLY_ACORE_NUM 1

◆ STACK_SIZE

#define STACK_SIZE 3

函数说明

◆ default_register_hal_exception_dump_callback()

void default_register_hal_exception_dump_callback ( void )

Register exception dump to fault interrupt.

◆ log_exception_dump()

void log_exception_dump	(	uint32_t	irq_id,
		exc_context_t *	exc_buf_addr
	)

Invoked by exception to dump exception information.

参数

irq_id	Interrupt ID.
exc_buf_addr	Exception buff addr.

◆ log_exception_send_data()

void log_exception_send_data	(	const uint8_t *	data,
		uint16_t	length
	)

Dump the ram when hardfault or watchdog.

参数

addr	Dump ram start addr.
length	Dump ram length.

◆ log_oml_dump_stack()

void log_oml_dump_stack ( void )

Dump the current task stack when in systemfaults and watchdog timeout.

◆ log_oml_exception_info_send()

void log_oml_exception_info_send	(	uint32_t	irq_id,
		const exc_context_t *	exc_buf_addr
	)

SDT interface to send SDT format fault message.

参数

irq_id	Interrupt ID.
exc_buf_addr	Exception buff addr.

◆ log_oml_memory_dump()

void log_oml_memory_dump ( void )

Dump the whole rom when hardfault or watchdog.
