#include "oal_types.h"
#include "oal_list.h"
#include "oam_ext_if.h"
#include "frw_msg_rom.h"
#include "frw_ext_common_rom.h"

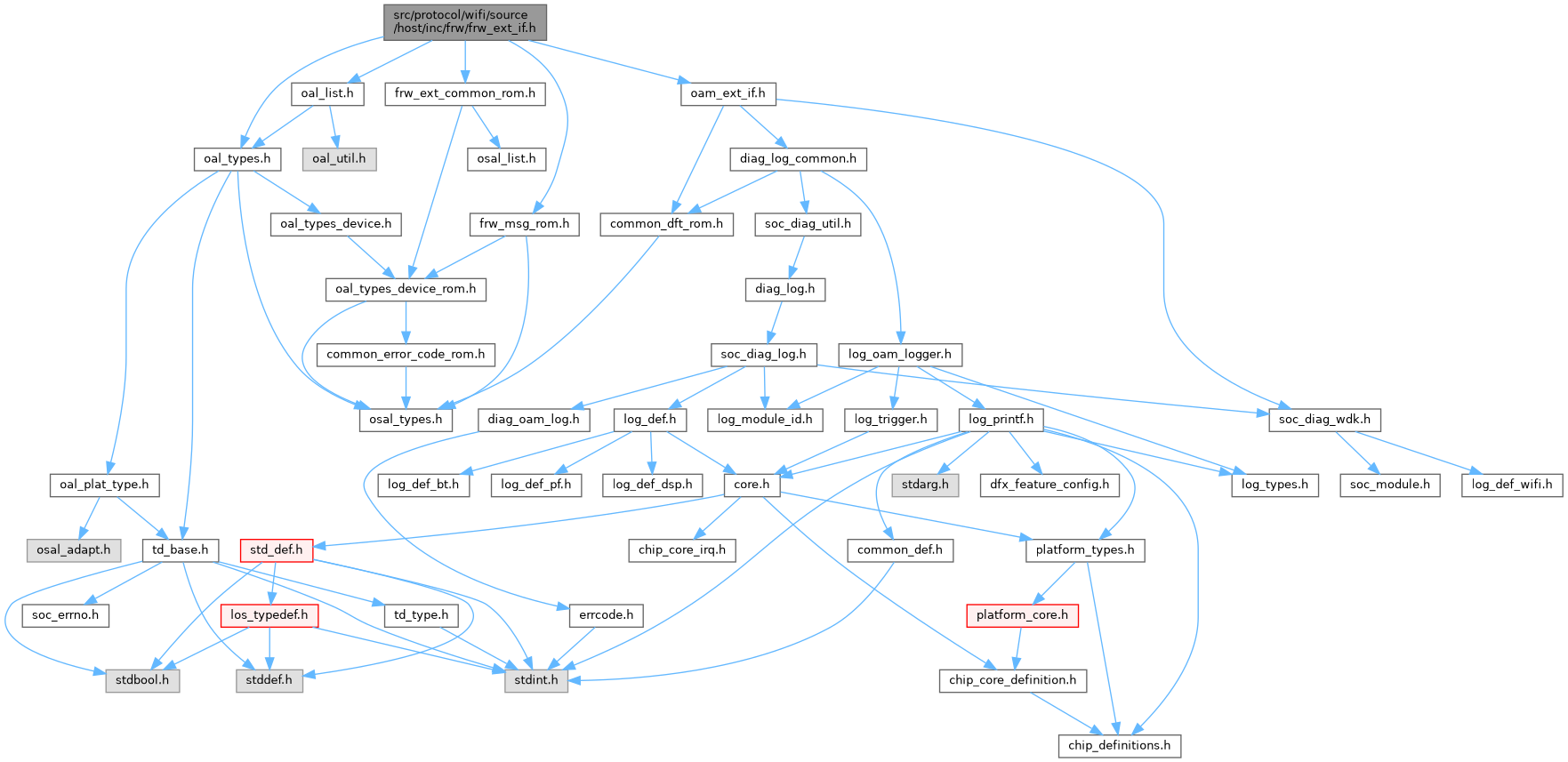

frw_ext_if.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

宏定义
#define	THIS_FILE_ID OAM_FILE_ID_FRW_EXT_IF_H

#define	FRW_TIMER_DEFAULT_TIME 10

#define	frw_timer_restart_timer(timeout, timeout_val, is_periodic) frw_timer_restart_timer_inner(timeout, timeout_val, is_periodic, THIS_FILE_ID, __LINE__)

#define	frw_destroy_timer_entry(timeout) frw_timer_destroy_timer(THIS_FILE_ID, __LINE__, timeout)

#define	frw_create_timer_entry(timeout, timeout_func, timeout_val, timeout_arg, is_periodic)

类型定义
typedef osal_u16	oam_module_id_enum_uint16

枚举
enum	oam_module_id_enum { OAM_MODULE_ID_ALL , OAM_MODULE_ID_WAL , OAM_MODULE_ID_HMAC , OAM_MODULE_ID_DMAC , OAM_MODULE_ID_HAL , OAM_MODULE_ID_OAM , OAM_MODULE_ID_OAL , OAM_MODULE_ID_FRW , OAM_MODULE_ID_ALG , OAM_MODULE_ID_PLAT , OAM_MODULE_ID_SDT , OAM_MODULE_ID_BUTT }

函数
osal_s32	frw_main_init_etc (osal_void)

osal_void	frw_main_exit_etc (osal_void)

osal_void	frw_main_destroy (osal_void)

osal_void	frw_set_init_state_etc (frw_init_enum_uint16 init_state)

frw_init_enum_uint16	frw_get_init_state_etc (osal_void)

osal_void	frw_event_process_all_event_etc (osal_ulong data)

osal_void	frw_timer_restart_timer_inner (frw_timeout_stru *timeout, osal_u32 timeout_val, oal_bool_enum_uint8 is_periodic, osal_u32 file_id, osal_u32 line)

osal_void	frw_timer_add_timer (frw_timeout_stru *timeout)

osal_void	frw_timer_create_timer_inner (osal_u32 file_id, osal_u32 line_num, frw_timeout_stru *timeout, osal_u32 time_val)

osal_void	frw_timer_stop_timer (frw_timeout_stru *timeout)

osal_void	frw_timer_delete_all_timer (osal_void)

osal_void	frw_timer_clean_timer (oam_module_id_enum_uint16 module_id)

osal_void	frw_timer_create_timer (osal_u32 file_id, osal_u32 line_num, frw_timeout_stru *timeout, osal_u32 time_val)

osal_void	frw_timer_destroy_timer (osal_u32 file_id, osal_u32 line_num, frw_timeout_stru *timeout)

宏定义说明

◆ frw_create_timer_entry

#define frw_create_timer_entry	(	timeout,
		timeout_func,
		timeout_val,
		timeout_arg,
		is_periodic
	)

值:

    do { \
        frw_init_timer(timeout, timeout_func, timeout_arg, is_periodic); \
        frw_timer_create_timer(THIS_FILE_ID, __LINE__, timeout, timeout_val); \
    } while (0)

◆ frw_destroy_timer_entry

#define frw_destroy_timer_entry ( timeout ) frw_timer_destroy_timer(THIS_FILE_ID, __LINE__, timeout)

◆ FRW_TIMER_DEFAULT_TIME

#define FRW_TIMER_DEFAULT_TIME 10

◆ frw_timer_restart_timer

#define frw_timer_restart_timer	(	timeout,
		timeout_val,
		is_periodic
	)	frw_timer_restart_timer_inner(timeout, timeout_val, is_periodic, THIS_FILE_ID, __LINE__)

◆ THIS_FILE_ID

#define THIS_FILE_ID OAM_FILE_ID_FRW_EXT_IF_H

类型定义说明

◆ oam_module_id_enum_uint16

typedef osal_u16 oam_module_id_enum_uint16

枚举类型说明

◆ oam_module_id_enum

enum oam_module_id_enum

枚举值
OAM_MODULE_ID_ALL
OAM_MODULE_ID_WAL
OAM_MODULE_ID_HMAC
OAM_MODULE_ID_DMAC
OAM_MODULE_ID_HAL
OAM_MODULE_ID_OAM
OAM_MODULE_ID_OAL
OAM_MODULE_ID_FRW
OAM_MODULE_ID_ALG
OAM_MODULE_ID_PLAT
OAM_MODULE_ID_SDT
OAM_MODULE_ID_BUTT

函数说明

◆ frw_event_process_all_event_etc()

osal_void frw_event_process_all_event_etc ( osal_ulong data )

extern

◆ frw_get_init_state_etc()

frw_init_enum_uint16 frw_get_init_state_etc ( osal_void )

extern

◆ frw_main_destroy()

osal_void frw_main_destroy ( osal_void )

extern

◆ frw_main_exit_etc()

osal_void frw_main_exit_etc ( osal_void )

extern

◆ frw_main_init_etc()

osal_s32 frw_main_init_etc ( osal_void )

extern

◆ frw_set_init_state_etc()

osal_void frw_set_init_state_etc ( frw_init_enum_uint16 init_state )

extern

◆ frw_timer_add_timer()

osal_void frw_timer_add_timer ( frw_timeout_stru * timeout )

extern

◆ frw_timer_clean_timer()

osal_void frw_timer_clean_timer ( oam_module_id_enum_uint16 module_id )

extern

◆ frw_timer_create_timer()

osal_void frw_timer_create_timer	(	osal_u32	file_id,
		osal_u32	line_num,
		frw_timeout_stru *	timeout,
		osal_u32	time_val
	)

◆ frw_timer_create_timer_inner()

osal_void frw_timer_create_timer_inner	(	osal_u32	file_id,
		osal_u32	line_num,
		frw_timeout_stru *	timeout,
		osal_u32	time_val
	)

extern

◆ frw_timer_delete_all_timer()

osal_void frw_timer_delete_all_timer ( osal_void )

extern

◆ frw_timer_destroy_timer()

osal_void frw_timer_destroy_timer	(	osal_u32	file_id,
		osal_u32	line_num,
		frw_timeout_stru *	timeout
	)

◆ frw_timer_restart_timer_inner()

osal_void frw_timer_restart_timer_inner	(	frw_timeout_stru *	timeout,
		osal_u32	timeout_val,
		oal_bool_enum_uint8	is_periodic,
		osal_u32	file_id,
		osal_u32	line
	)

extern

◆ frw_timer_stop_timer()

osal_void frw_timer_stop_timer ( frw_timeout_stru * timeout )

extern
