#include <stdbool.h>
#include <stdint.h>
#include "errcode.h"
#include "sle_common.h"

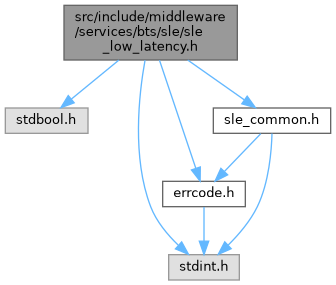

sle_low_latency.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	sle_set_acb_low_latency_t
	星闪层低时延配置接口更多...

struct	sle_low_latency_mouse_callbacks_t
	Mouse侧发送low latency数据回调。更多...

struct	sle_low_latency_tx_callbacks_t
	TX侧发送low latency数据回调。更多...

struct	sle_low_latency_dongle_callbacks_t
	Dongle侧接收low latency数据回调。更多...

struct	sle_low_latency_rx_callbacks_t
	RX侧接收low latency数据回调。更多...

类型定义
typedef errcode_t(*	low_latency_key_value_set_callback) (int8_t button_mask, int16_t x, int16_t y, int8_t wheel)
	Mouse模式数据发送回调接口定义。

typedef uint8_t (	low_latency_general_tx_callback) (uint8_t *len)
	设置HID设备TLV数据的通用接口。

typedef void(*	low_latency_report_callback) (uint8_t *data, uint8_t len)
	Mouse模式数据获取调定义。

typedef void(*	low_latency_general_rx_callback) (uint8_t len, uint8_t *value)
	通用获取数据回调定义。

枚举
enum	sle_low_latency_rate_t { SLE_LOW_LATENCY_125HZ = 0 , SLE_LOW_LATENCY_500HZ , SLE_LOW_LATENCY_1K , SLE_LOW_LATENCY_2K , SLE_LOW_LATENCY_3K , SLE_LOW_LATENCY_4K , SLE_LOW_LATENCY_5K , SLE_LOW_LATENCY_6K , SLE_LOW_LATENCY_7K , SLE_LOW_LATENCY_8K , SLE_LOW_LATENCY_MAX }
	低时延调度速率。更多...

enum	sle_low_latency_status_t { SLE_LOW_LATENCY_DISABLE = 0 , SLE_LOW_LATENCY_ENABLE }
	低时延使能。更多...

enum	sle_low_latency_value_set_status_t { SLE_LOW_LATENCY_VALUE_GET_SUCCESS = 0 , SLE_LOW_LATENCY_VALUE_GET_FAIL }
	低时延使能。更多...

函数
errcode_t	sle_low_latency_mouse_enable (void)
	Mouse模式初始化。

errcode_t	sle_low_latency_mouse_register_callbacks (sle_low_latency_mouse_callbacks_t *mouse_cbk)
	Mouse模式数据获取调定义。

errcode_t	sle_low_latency_dongle_enable (void)
	Mouse模式初始化。

errcode_t	sle_low_latency_set (uint16_t conn_id, uint8_t enable, uint16_t rate)
	低时延使能和调度参数配置。

errcode_t	sle_low_latency_dongle_register_callbacks (sle_low_latency_dongle_callbacks_t *dongle_cbk)
	Dongle模式数据获取回调定义。

errcode_t	sle_low_latency_tx_register_callbacks (sle_low_latency_tx_callbacks_t *tx_cbk)
	TX模式数据获取回调定义。

errcode_t	sle_low_latency_rx_register_callbacks (sle_low_latency_rx_callbacks_t *rx_cbk)
	RX模式数据获取回调定义。

errcode_t	sle_low_latency_tx_enable (void)
	TX模式初始化。

errcode_t	sle_low_latency_rx_enable (void)
	RX模式初始化。
