#include "oal_plat_type.h"
#include "oal_net.h"

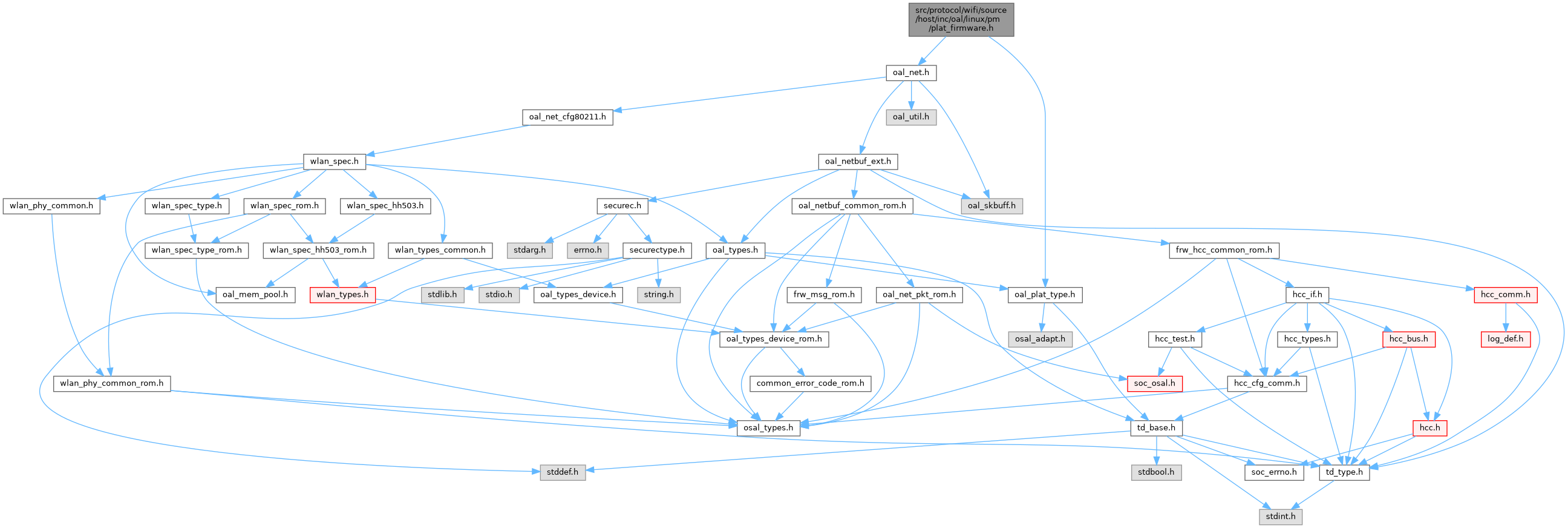

plat_firmware.h 的引用(Include)关系图:

宏定义
#define	OS_KZALLOC_GFP(size) kzalloc(size, (GFP_KERNEL \| __GFP_NOWARN))

#define	READ_MEG_TIMEOUT (2000) /* 200ms */

#define	READ_MEG_JUMP_TIMEOUT (15000) /* 15s */

#define	FILE_CMD_WAIT_TIME_MIN (5000) /* 5000us */

#define	FILE_CMD_WAIT_TIME_MAX (5100) /* 5100us */

#define	SEND_BUF_LEN (520)

#define	RECV_BUF_LEN (512)

#define	VERSION_LEN (64)

#define	READ_CFG_BUF_LEN (2048)

#define	HOST_DEV_TIMEOUT (3)

#define	INT32_STR_LEN (32)

#define	CMD_JUMP_EXEC_RESULT_SUCC (0)

#define	CMD_JUMP_EXEC_RESULT_FAIL (1)

#define	VER_CMD_KEYWORD "VERSION"

#define	JUMP_CMD_KEYWORD "JUMP"

#define	FILES_CMD_KEYWORD "FILES"

#define	SETPM_CMD_KEYWORD "SETPM"

#define	SETBUCK_CMD_KEYWORD "SETBUCK"

#define	SETSYSLDO_CMD_KEYWORD "SETSYSLDO"

#define	SETNFCRETLDO_CMD_KEYWORD "SETNFCRETLDO"

#define	SETPD_CMD_KEYWORD "SETPD"

#define	SETNFCCRG_CMD_KEYWORD "SETNFCCRG"

#define	SETABB_CMD_KEYWORD "SETABB"

#define	SETTCXODIV_CMD_KEYWORD "SETTCXODIV"

#define	RMEM_CMD_KEYWORD "READM"

#define	WMEM_CMD_KEYWORD "WRITEM"

#define	QUIT_CMD_KEYWORD "QUIT"

#define	MSG_FROM_DEV_WRITEM_OK "WRITEM OK"

#define	MSG_FROM_DEV_READM_OK ""

#define	MSG_FROM_DEV_FILES_OK "FILES OK"

#define	MSG_FROM_DEV_READY_OK "READY"

#define	MSG_FROM_DEV_JUMP_OK "JUMP OK"

#define	MSG_FROM_DEV_SET_OK "SET OK"

#define	MSG_FROM_DEV_QUIT_OK ""

#define	COMPART_KEYWORD ' '

#define	CMD_LINE_SIGN ';'

#define	CFG_INFO_RESERVE_LEN (8)

#define	FILE_COUNT_PER_SEND (1)

#define	MIN_FIRMWARE_FILE_TX_BUF_LEN (4096)

#define	MAX_FIRMWARE_FILE_TX_BUF_LEN (512 * 1024)

#define	MAX_FIRMWARE_FILE_RX_BUF_LEN (128 * 1024)

#define	MAX_PACKAGE_SIZE_INI 8

#define	WCPU_ROM_START 0x00008000

#define	WCPU_ROM_END 0x00090000

#define	WCPU_ITCM_START 0x00090000

#define	WCPU_ITCM_END 0x000CFFFF

#define	WCPU_DTCM_START 0x20000000

#define	WCPU_DTCM_END 0x20047FFF

#define	WCPU_PKT_START 0x60000000

#define	WCPU_PKT_END 0x6007FFFF

#define	FIRMWARE_BOARD_INFO_NAME_LEN 10

#define	FIRMWARE_BOARD_INFO_PARA_LEN 50

#define	FIRMWARE_DOWNLOAD_BT_ROM_OFFSET 1

#define	FIRMWARE_DOWNLOAD_BT_RAM_OFFSET 2

#define	FIRMWARE_REG_BOARD_INFO_SET_UU "2,0x50000204,0x693C"

#define	FIRMWARE_REG_BOARD_INFO_SET_UT "2,0x50000204,0x533C"

#define	FIRMWARE_REG_BOARD_INFO_SET_ST "2,0x50000204,0x5353"

#define	FIRMWARE_REG_BOARD_INFO_SET_SS "2,0x50000204,0x3C53"

#define	FIRMWARE_REG_BOARD_INFO_SET_ET "2,0x50000204,0x5370"

#define	FIRMWARE_REG_BOARD_INFO_SET_EU "2,0x50000204,0x7070"

类型定义
typedef enum firmware_cfg_cmd_enum	firmware_cfg_cmd_enum

typedef struct file	os_kernel_file_stru

枚举
enum	firmware_cfg_cmd_enum { ERROR_TYPE_CMD = 0 , FILE_TYPE_CMD , NUM_TYPE_CMD , QUIT_TYPE_CMD }

函数
osal_s32	firmware_download_etc (void)

osal_s32	wifi_device_mem_dump (struct wifi_dump_mem_info *mem_dump_info, osal_u32 count)

osal_s32	read_device_reg16 (osal_u32 address, osal_s16 *value)

osal_s32	write_device_reg16 (osal_u32 address, osal_s16 value)

osal_s32	test_sdio_new_opt (osal_u32 cnt)

osal_s32	test_sdio_new_read (osal_s32 reg_addr)

osal_s32	test_sdio_new_write (osal_s32 reg_addr, osal_s32 val)

osal_s32	test_sdio_newaddr_write (osal_u32 addr, osal_u32 cnt, osal_u32 data, osal_u32 reg_addr)

osal_s32	test_sdio_newaddr_read (osal_u32 addr, osal_u32 cnt, osal_u32 reg_addr)

宏定义说明

◆ CFG_INFO_RESERVE_LEN

#define CFG_INFO_RESERVE_LEN (8)

◆ CMD_JUMP_EXEC_RESULT_FAIL

#define CMD_JUMP_EXEC_RESULT_FAIL (1)

◆ CMD_JUMP_EXEC_RESULT_SUCC

#define CMD_JUMP_EXEC_RESULT_SUCC (0)

◆ CMD_LINE_SIGN

#define CMD_LINE_SIGN ';'

◆ COMPART_KEYWORD

#define COMPART_KEYWORD ' '

◆ FILE_CMD_WAIT_TIME_MAX

#define FILE_CMD_WAIT_TIME_MAX (5100) /* 5100us */

◆ FILE_CMD_WAIT_TIME_MIN

#define FILE_CMD_WAIT_TIME_MIN (5000) /* 5000us */

◆ FILE_COUNT_PER_SEND

#define FILE_COUNT_PER_SEND (1)

◆ FILES_CMD_KEYWORD

#define FILES_CMD_KEYWORD "FILES"

◆ FIRMWARE_BOARD_INFO_NAME_LEN

#define FIRMWARE_BOARD_INFO_NAME_LEN 10

◆ FIRMWARE_BOARD_INFO_PARA_LEN

#define FIRMWARE_BOARD_INFO_PARA_LEN 50

◆ FIRMWARE_DOWNLOAD_BT_RAM_OFFSET

#define FIRMWARE_DOWNLOAD_BT_RAM_OFFSET 2

◆ FIRMWARE_DOWNLOAD_BT_ROM_OFFSET

#define FIRMWARE_DOWNLOAD_BT_ROM_OFFSET 1

◆ FIRMWARE_REG_BOARD_INFO_SET_ET

#define FIRMWARE_REG_BOARD_INFO_SET_ET "2,0x50000204,0x5370"

◆ FIRMWARE_REG_BOARD_INFO_SET_EU

#define FIRMWARE_REG_BOARD_INFO_SET_EU "2,0x50000204,0x7070"

◆ FIRMWARE_REG_BOARD_INFO_SET_SS

#define FIRMWARE_REG_BOARD_INFO_SET_SS "2,0x50000204,0x3C53"

◆ FIRMWARE_REG_BOARD_INFO_SET_ST

#define FIRMWARE_REG_BOARD_INFO_SET_ST "2,0x50000204,0x5353"

◆ FIRMWARE_REG_BOARD_INFO_SET_UT

#define FIRMWARE_REG_BOARD_INFO_SET_UT "2,0x50000204,0x533C"

◆ FIRMWARE_REG_BOARD_INFO_SET_UU

#define FIRMWARE_REG_BOARD_INFO_SET_UU "2,0x50000204,0x693C"

◆ HOST_DEV_TIMEOUT

#define HOST_DEV_TIMEOUT (3)

◆ INT32_STR_LEN

#define INT32_STR_LEN (32)

◆ JUMP_CMD_KEYWORD

#define JUMP_CMD_KEYWORD "JUMP"

◆ MAX_FIRMWARE_FILE_RX_BUF_LEN

#define MAX_FIRMWARE_FILE_RX_BUF_LEN (128 * 1024)

◆ MAX_FIRMWARE_FILE_TX_BUF_LEN

#define MAX_FIRMWARE_FILE_TX_BUF_LEN (512 * 1024)

◆ MAX_PACKAGE_SIZE_INI

#define MAX_PACKAGE_SIZE_INI 8

◆ MIN_FIRMWARE_FILE_TX_BUF_LEN

#define MIN_FIRMWARE_FILE_TX_BUF_LEN (4096)

◆ MSG_FROM_DEV_FILES_OK

#define MSG_FROM_DEV_FILES_OK "FILES OK"

◆ MSG_FROM_DEV_JUMP_OK

#define MSG_FROM_DEV_JUMP_OK "JUMP OK"

◆ MSG_FROM_DEV_QUIT_OK

#define MSG_FROM_DEV_QUIT_OK ""

◆ MSG_FROM_DEV_READM_OK

#define MSG_FROM_DEV_READM_OK ""

◆ MSG_FROM_DEV_READY_OK

#define MSG_FROM_DEV_READY_OK "READY"

◆ MSG_FROM_DEV_SET_OK

#define MSG_FROM_DEV_SET_OK "SET OK"

◆ MSG_FROM_DEV_WRITEM_OK

#define MSG_FROM_DEV_WRITEM_OK "WRITEM OK"

◆ OS_KZALLOC_GFP

#define OS_KZALLOC_GFP ( size ) kzalloc(size, (GFP_KERNEL | __GFP_NOWARN))

◆ QUIT_CMD_KEYWORD

#define QUIT_CMD_KEYWORD "QUIT"

◆ READ_CFG_BUF_LEN

#define READ_CFG_BUF_LEN (2048)

◆ READ_MEG_JUMP_TIMEOUT

#define READ_MEG_JUMP_TIMEOUT (15000) /* 15s */

◆ READ_MEG_TIMEOUT

#define READ_MEG_TIMEOUT (2000) /* 200ms */

◆ RECV_BUF_LEN

#define RECV_BUF_LEN (512)

◆ RMEM_CMD_KEYWORD

#define RMEM_CMD_KEYWORD "READM"

◆ SEND_BUF_LEN

#define SEND_BUF_LEN (520)

◆ SETABB_CMD_KEYWORD

#define SETABB_CMD_KEYWORD "SETABB"

◆ SETBUCK_CMD_KEYWORD

#define SETBUCK_CMD_KEYWORD "SETBUCK"

◆ SETNFCCRG_CMD_KEYWORD

#define SETNFCCRG_CMD_KEYWORD "SETNFCCRG"

◆ SETNFCRETLDO_CMD_KEYWORD

#define SETNFCRETLDO_CMD_KEYWORD "SETNFCRETLDO"

◆ SETPD_CMD_KEYWORD

#define SETPD_CMD_KEYWORD "SETPD"

◆ SETPM_CMD_KEYWORD

#define SETPM_CMD_KEYWORD "SETPM"

◆ SETSYSLDO_CMD_KEYWORD

#define SETSYSLDO_CMD_KEYWORD "SETSYSLDO"

◆ SETTCXODIV_CMD_KEYWORD

#define SETTCXODIV_CMD_KEYWORD "SETTCXODIV"

◆ VER_CMD_KEYWORD

#define VER_CMD_KEYWORD "VERSION"

◆ VERSION_LEN

#define VERSION_LEN (64)

◆ WCPU_DTCM_END

#define WCPU_DTCM_END 0x20047FFF

◆ WCPU_DTCM_START

#define WCPU_DTCM_START 0x20000000

◆ WCPU_ITCM_END

#define WCPU_ITCM_END 0x000CFFFF

◆ WCPU_ITCM_START

#define WCPU_ITCM_START 0x00090000

◆ WCPU_PKT_END

#define WCPU_PKT_END 0x6007FFFF

◆ WCPU_PKT_START

#define WCPU_PKT_START 0x60000000

◆ WCPU_ROM_END

#define WCPU_ROM_END 0x00090000

◆ WCPU_ROM_START

#define WCPU_ROM_START 0x00008000

◆ WMEM_CMD_KEYWORD

#define WMEM_CMD_KEYWORD "WRITEM"

类型定义说明

◆ firmware_cfg_cmd_enum

typedef enum firmware_cfg_cmd_enum firmware_cfg_cmd_enum

◆ os_kernel_file_stru

typedef struct file os_kernel_file_stru

枚举类型说明

◆ firmware_cfg_cmd_enum

enum firmware_cfg_cmd_enum

枚举值
ERROR_TYPE_CMD
FILE_TYPE_CMD
NUM_TYPE_CMD
QUIT_TYPE_CMD

函数说明

◆ firmware_download_etc()

osal_s32 firmware_download_etc ( void )

extern

◆ read_device_reg16()

osal_s32 read_device_reg16	(	osal_u32	address,
		osal_s16 *	value
	)

extern

◆ test_sdio_new_opt()

osal_s32 test_sdio_new_opt ( osal_u32 cnt )

◆ test_sdio_new_read()

osal_s32 test_sdio_new_read ( osal_s32 reg_addr )

◆ test_sdio_new_write()

osal_s32 test_sdio_new_write	(	osal_s32	reg_addr,
		osal_s32	val
	)

◆ test_sdio_newaddr_read()

osal_s32 test_sdio_newaddr_read	(	osal_u32	addr,
		osal_u32	cnt,
		osal_u32	reg_addr
	)

◆ test_sdio_newaddr_write()

osal_s32 test_sdio_newaddr_write	(	osal_u32	addr,
		osal_u32	cnt,
		osal_u32	data,
		osal_u32	reg_addr
	)

◆ wifi_device_mem_dump()

osal_s32 wifi_device_mem_dump	(	struct wifi_dump_mem_info *	mem_dump_info,
		osal_u32	count
	)

extern

◆ write_device_reg16()

osal_s32 write_device_reg16	(	osal_u32	address,
		osal_s16	value
	)

extern
