cali_data_type.h 文件参考

#include "cali_complex_num.h"
#include "cali_base_def.h"
#include "cali_outer_os_if.h"
#include "cali_outer_hal_if.h"
#include "cali_spec.h"

cali_data_type.h 的引用(Include)关系图:

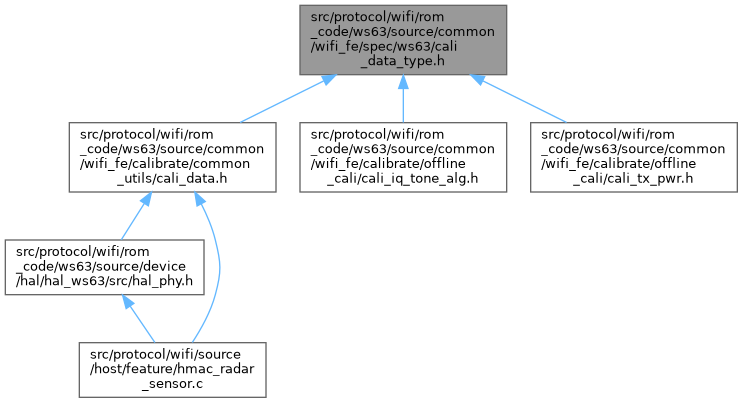

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	cali_rx_dc_comp_val_stru
struct	cali_tx_power_comp_val_stru
struct	cali_logen_comp_val_stru
struct	cali_txdc_comp_val_stru
struct	cali_rxiq_tone_comp_val_stru
struct	cali_txiq_tone_comp_val_stru
struct	cali_param_2g_stru
struct	cali_update_channel_stru
struct	cali_rc_r_c_param_stru
struct	cali_ipa_current_param_stru
struct	hh503_cali_param_tag

宏定义
#define	CALI_TXDC_GAIN_LVL_NUM   (4)
#define	CALI_RXDC_GAIN_LNA_LVL_NUM   (8) /* rx dc补偿值lna档位数目 */
#define	CALI_RXDC_GAIN_VGA_LVL_NUM   (2) /* rx dc补偿值vga档位数目 */
#define	CALI_TXPWR_GAIN_LVL_NUM_MAX   (2) /* tx pwr补偿值预留最大档位数目 */
#define	CALI_DC_OFFSET_NUM   2
#define	CALI_TX_IQ_GAIN_LVL_NUM   2
#define	CALI_RX_IQ_GAIN_LVL_NUM   2
#define	CALI_IQ_LS_COMP_NUM   (5)
#define	CALI_RF_RX_IQ_BANDWIDTH_NUM   1

宏定义说明

CALI_DC_OFFSET_NUM

#define CALI_DC_OFFSET_NUM   2

CALI_IQ_LS_COMP_NUM

#define CALI_IQ_LS_COMP_NUM   (5)

CALI_RF_RX_IQ_BANDWIDTH_NUM

#define CALI_RF_RX_IQ_BANDWIDTH_NUM   1

CALI_RX_IQ_GAIN_LVL_NUM

#define CALI_RX_IQ_GAIN_LVL_NUM   2

CALI_RXDC_GAIN_LNA_LVL_NUM

#define CALI_RXDC_GAIN_LNA_LVL_NUM   (8) /* rx dc补偿值lna档位数目 */

CALI_RXDC_GAIN_VGA_LVL_NUM

#define CALI_RXDC_GAIN_VGA_LVL_NUM   (2) /* rx dc补偿值vga档位数目 */

CALI_TX_IQ_GAIN_LVL_NUM

#define CALI_TX_IQ_GAIN_LVL_NUM   2

CALI_TXDC_GAIN_LVL_NUM

#define CALI_TXDC_GAIN_LVL_NUM   (4)

CALI_TXPWR_GAIN_LVL_NUM_MAX

#define CALI_TXPWR_GAIN_LVL_NUM_MAX   (2) /* tx pwr补偿值预留最大档位数目 */
