wal_ccpriv.h 文件参考

#include "oal_ext_if.h"
#include "hmac_ext_if.h"
#include "wal_main.h"
#include "mac_device_ext.h"
#include "wal_ccpriv_common.h"

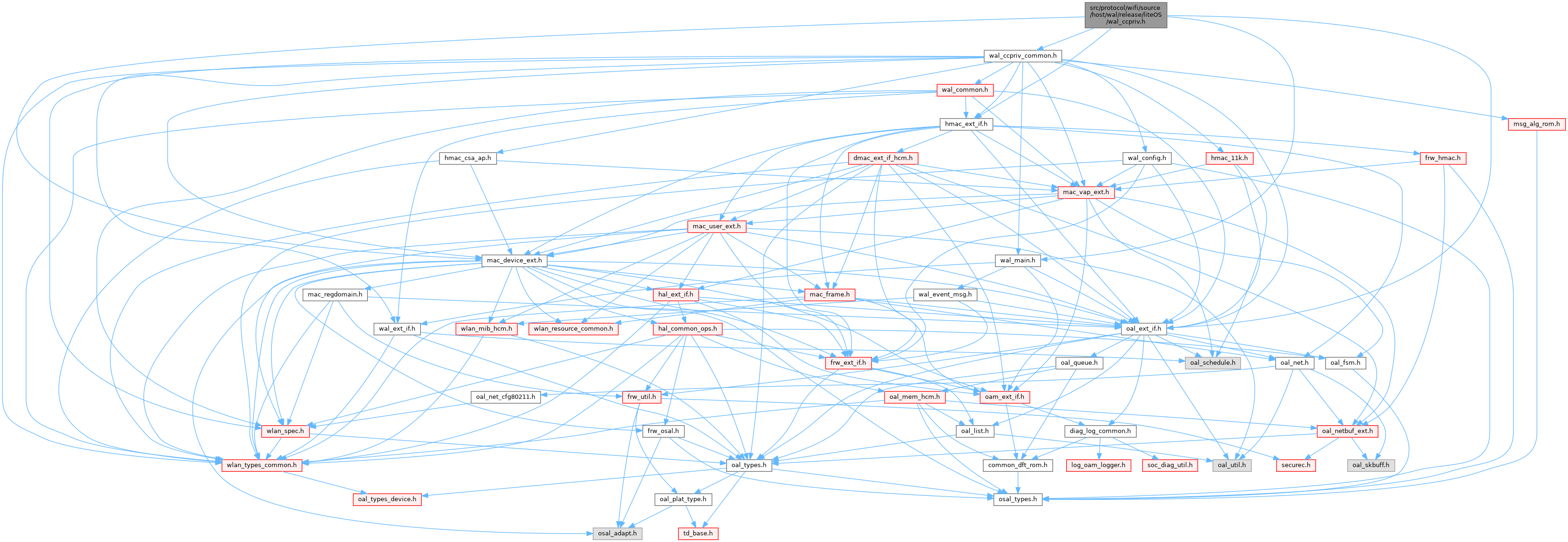

wal_ccpriv.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	wal_ccpriv_two_param_stru
struct	wal_ccpriv_three_param_stru
struct	wal_ccpriv_four_param_stru
struct	al_tx_back_off_time_stru

宏定义
#define	WAL_CCPRIV_CMD_MAX_LEN   1024
#define	WAL_CCPRIV_11B_MCS_MIN   0
#define	WAL_CCPRIV_11B_MCS_MAX   3
#define	WAL_CCPRIV_11G_MCS_MIN   8
#define	WAL_CCPRIV_11G_MCS_MAX   15
#define	WAL_CCPRIV_11N_MCS_MIN   0
#define	WAL_CCPRIV_11N_MCS_MAX   7
#define	WAL_CCPRIV_11AX_MCS_MIN   0
#define	WAL_CCPRIV_11AX_MCS_MAX   11
#define	WAL_CCPRIV_NSS_MIN   1
#define	WAL_CCPRIV_NSS_MAX   4
#define	WAL_CCPRIV_CH_NUM   4
#define	WAL_CCPRIV_SNPRINTF_DST   10
#define	WAL_CCPRIV_BOOL_NIM   0
#define	WAL_CCPRIV_BOOL_MAX   1
#define	WAL_CCPRIV_FREQ_SKEW_ARG_NUM   8
#define	WAL_CCPRIV_MS_TO_S   1000 /* ms和s之间倍数差 */
#define	WAL_CCPRIV_KEEPALIVE_INTERVAL_MIN   5000 /* 受默认老化计数器出发时间所限制 */
#define	WAL_CCPRIV_KEEPALIVE_INTERVAL_MAX   0xffff /* timer间隔时间限制所致(oal_uin16) */
#define	WAL_AL_TX_RATIO_LOW   1
#define	WAL_AL_TX_RATIO_HIGH   10
#define	WAL_SET_MONITER_ON   1
#define	WAL_MONITER_SWITCH_MODE   2
#define	WAL_EXTERNAL_RECORD_ENABLE_ON   1

函数
osal_u8	wal_tx_data_type_debug_on (osal_void)
td_u32	wal_ccpriv_set_mcs (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	wal_ccpriv_del_vap (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	uapi_ccpriv_set_sleep (oal_net_device_stru *net_dev, osal_s8 *pc_param)
td_u32	uapi_ccpriv_vap_info (oal_net_device_stru *netdev, td_s8 *pc_param)
td_u32	wal_ccpriv_remove_proc (td_void)
td_u32	wal_ccpriv_get_bw (oal_net_device_stru *netdev, hal_channel_assemble_enum_uint8 *pen_bw_index)
td_u32	wal_ccpriv_set_bw (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	uapi_ccpriv_getcountry (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	wal_ccpriv_sta_set_psm_offset (oal_net_device_stru *netdev, td_char *param)
td_u32	wal_ccpriv_sta_set_offload_param (oal_net_device_stru *netdev, td_char *param)
td_u32	wal_ccpriv_sta_set_hw_ps_mode (oal_net_device_stru *netdev, td_char *param)
td_u32	wal_ccpriv_set_pm_switch (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	uapi_ccpriv_setcountry (oal_net_device_stru *netdev, td_char *param)
td_u32	uapi_ccpriv_ampdu_tx_on (oal_net_device_stru *netdev, td_s8 *pc_param)
td_u32	wal_ccpriv_amsdu_tx_on (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	wal_ccpriv_tx_proc (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	wal_ccpriv_rx_proc (oal_net_device_stru *netdev, td_char *pc_param)
td_u32	uapi_ccpriv_rx_fcs_info (oal_net_device_stru *netdev, td_char *pc_param)
osal_u32	uapi_ccpriv_user_info (oal_net_device_stru *netdev, td_s8 *pc_param)
td_u32	wal_ccpriv_bsrp_dbg (oal_net_device_stru *netdev, td_char *param)
td_bool	is_under_ps (td_void)
td_void	set_under_ps (td_bool under_ps)
td_u32	uapi_ccpriv_send_pkt (oal_net_device_stru *net_dev, osal_s8 *param)
osal_void	wal_ccpriv_str_to_hex (osal_s8 *param, td_s16 len, osal_u8 *value)
td_u32	wal_send_custom_pkt (oal_net_device_stru *net_dev, osal_u8 *data, osal_u32 len)
oal_bool_enum_uint8	check_unsigned_range (osal_s8 *value, osal_u32 min, osal_u32 max)

宏定义说明

WAL_AL_TX_RATIO_HIGH

#define WAL_AL_TX_RATIO_HIGH   10

WAL_AL_TX_RATIO_LOW

#define WAL_AL_TX_RATIO_LOW   1

WAL_CCPRIV_11AX_MCS_MAX

#define WAL_CCPRIV_11AX_MCS_MAX   11

WAL_CCPRIV_11AX_MCS_MIN

#define WAL_CCPRIV_11AX_MCS_MIN   0

WAL_CCPRIV_11B_MCS_MAX

#define WAL_CCPRIV_11B_MCS_MAX   3

WAL_CCPRIV_11B_MCS_MIN

#define WAL_CCPRIV_11B_MCS_MIN   0

WAL_CCPRIV_11G_MCS_MAX

#define WAL_CCPRIV_11G_MCS_MAX   15

WAL_CCPRIV_11G_MCS_MIN

#define WAL_CCPRIV_11G_MCS_MIN   8

WAL_CCPRIV_11N_MCS_MAX

#define WAL_CCPRIV_11N_MCS_MAX   7

WAL_CCPRIV_11N_MCS_MIN

#define WAL_CCPRIV_11N_MCS_MIN   0

WAL_CCPRIV_BOOL_MAX

#define WAL_CCPRIV_BOOL_MAX   1

WAL_CCPRIV_BOOL_NIM

#define WAL_CCPRIV_BOOL_NIM   0

WAL_CCPRIV_CH_NUM

#define WAL_CCPRIV_CH_NUM   4

WAL_CCPRIV_CMD_MAX_LEN

#define WAL_CCPRIV_CMD_MAX_LEN   1024

WAL_CCPRIV_FREQ_SKEW_ARG_NUM

#define WAL_CCPRIV_FREQ_SKEW_ARG_NUM   8

WAL_CCPRIV_KEEPALIVE_INTERVAL_MAX

#define WAL_CCPRIV_KEEPALIVE_INTERVAL_MAX   0xffff /* timer间隔时间限制所致(oal_uin16) */

WAL_CCPRIV_KEEPALIVE_INTERVAL_MIN

#define WAL_CCPRIV_KEEPALIVE_INTERVAL_MIN   5000 /* 受默认老化计数器出发时间所限制 */

WAL_CCPRIV_MS_TO_S

#define WAL_CCPRIV_MS_TO_S   1000 /* ms和s之间倍数差 */

WAL_CCPRIV_NSS_MAX

#define WAL_CCPRIV_NSS_MAX   4

WAL_CCPRIV_NSS_MIN

#define WAL_CCPRIV_NSS_MIN   1

WAL_CCPRIV_SNPRINTF_DST

#define WAL_CCPRIV_SNPRINTF_DST   10

WAL_EXTERNAL_RECORD_ENABLE_ON

#define WAL_EXTERNAL_RECORD_ENABLE_ON   1

WAL_MONITER_SWITCH_MODE

#define WAL_MONITER_SWITCH_MODE   2

WAL_SET_MONITER_ON

#define WAL_SET_MONITER_ON   1

函数说明

check_unsigned_range()

oal_bool_enum_uint8 check_unsigned_range	(	osal_s8 *	value,
		osal_u32	min,
		osal_u32	max
	)

is_under_ps()

td_bool is_under_ps

(

td_void

)

set_under_ps()

td_void set_under_ps

(

td_bool

under_ps

)

uapi_ccpriv_ampdu_tx_on()

td_u32 uapi_ccpriv_ampdu_tx_on	(	oal_net_device_stru *	netdev,
		td_s8 *	pc_param
	)

uapi_ccpriv_getcountry()

td_u32 uapi_ccpriv_getcountry	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

uapi_ccpriv_rx_fcs_info()

td_u32 uapi_ccpriv_rx_fcs_info	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

uapi_ccpriv_send_pkt()

td_u32 uapi_ccpriv_send_pkt	(	oal_net_device_stru *	net_dev,
		osal_s8 *	param
	)

uapi_ccpriv_set_sleep()

td_u32 uapi_ccpriv_set_sleep	(	oal_net_device_stru *	net_dev,
		osal_s8 *	pc_param
	)

uapi_ccpriv_setcountry()

td_u32 uapi_ccpriv_setcountry	(	oal_net_device_stru *	netdev,
		td_char *	param
	)

uapi_ccpriv_user_info()

osal_u32 uapi_ccpriv_user_info	(	oal_net_device_stru *	netdev,
		td_s8 *	pc_param
	)

uapi_ccpriv_vap_info()

td_u32 uapi_ccpriv_vap_info	(	oal_net_device_stru *	netdev,
		td_s8 *	pc_param
	)

wal_ccpriv_amsdu_tx_on()

td_u32 wal_ccpriv_amsdu_tx_on	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_bsrp_dbg()

td_u32 wal_ccpriv_bsrp_dbg	(	oal_net_device_stru *	netdev,
		td_char *	param
	)

wal_ccpriv_del_vap()

td_u32 wal_ccpriv_del_vap	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_get_bw()

td_u32 wal_ccpriv_get_bw	(	oal_net_device_stru *	netdev,
		hal_channel_assemble_enum_uint8 *	pen_bw_index
	)

wal_ccpriv_remove_proc()

td_u32 wal_ccpriv_remove_proc

(

td_void

)

wal_ccpriv_rx_proc()

td_u32 wal_ccpriv_rx_proc	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_set_bw()

td_u32 wal_ccpriv_set_bw	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_set_mcs()

td_u32 wal_ccpriv_set_mcs	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_set_pm_switch()

td_u32 wal_ccpriv_set_pm_switch	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_ccpriv_sta_set_hw_ps_mode()

td_u32 wal_ccpriv_sta_set_hw_ps_mode	(	oal_net_device_stru *	netdev,
		td_char *	param
	)

wal_ccpriv_sta_set_offload_param()

td_u32 wal_ccpriv_sta_set_offload_param	(	oal_net_device_stru *	netdev,
		td_char *	param
	)

wal_ccpriv_sta_set_psm_offset()

td_u32 wal_ccpriv_sta_set_psm_offset	(	oal_net_device_stru *	netdev,
		td_char *	param
	)

wal_ccpriv_str_to_hex()

osal_void wal_ccpriv_str_to_hex	(	osal_s8 *	param,
		td_s16	len,
		osal_u8 *	value
	)

wal_ccpriv_tx_proc()

td_u32 wal_ccpriv_tx_proc	(	oal_net_device_stru *	netdev,
		td_char *	pc_param
	)

wal_send_custom_pkt()

td_u32 wal_send_custom_pkt	(	oal_net_device_stru *	net_dev,
		osal_u8 *	data,
		osal_u32	len
	)

wal_tx_data_type_debug_on()

osal_u8 wal_tx_data_type_debug_on

(

osal_void

)
