efuse_porting.c 文件参考

#include "hal_efuse_v151.h"
#include "chip_io.h"
#include "securec.h"
#include "soc_porting.h"
#include "efuse.h"
#include "efuse_porting.h"

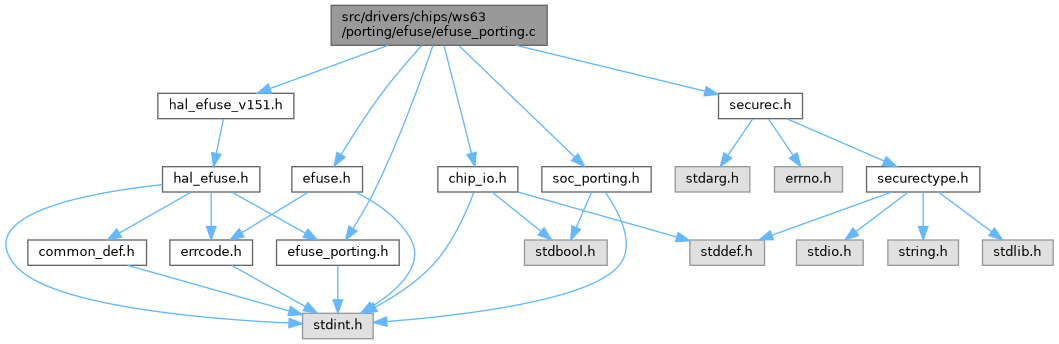

efuse_porting.c 的引用(Include)关系图:

结构体
struct	efuse_stru

宏定义
#define	EFUSE0_BASE_ADDR   0x44008000
#define	HAL_EFUSE0_WRITE_BASE_ADDR   (EFUSE0_BASE_ADDR + 0x800)
#define	HAL_EFUSE0_READ_BASE_ADDR   (EFUSE0_BASE_ADDR + 0x800)
#define	BIT_SIZE_OF_BYTE   8
#define	EFUSE_24M_CLK   0x29
#define	EFUSE_40M_CLK   0x19
#define	FIRST_MAC_ADDR_START_BIT   1584
#define	SECOND_MAC_ADDR_START_BIT   1632
#define	THIRD_MAC_ADDR_START_BIT   1680
#define	FORTH_MAC_ADDR_START_BIT   1728
#define	FIRST_MAC_LOCK_BIT   314
#define	SECOND_MAC_LOCK_BIT   315
#define	THIRD_MAC_LOCK_BIT   316
#define	FORTH_MAC_LOCK_BIT   317
#define	EFUSE_MAC_NUM   4
#define	EFUSE_MAC_LEN   6
#define	BIT_TO_BYTE   8
#define	SLE_MAC_ADDR_START_BIT   1904

函数
void	efuse_port_register_hal_funcs (void)
	将hal funcs对象注册到hal_efuse模块中
void	efuse_port_unregister_hal_funcs (void)
	从hal_efuse模块注销hal funcs对象
hal_efuse_region_t	hal_efuse_get_region (uint32_t byte_addr)
	Get the region of a otp byte address
uint16_t	hal_efuse_get_byte_offset (uint32_t byte_addr)
	Get the offset addr of a otp byte address
uint32_t	efuse_read_item (efuse_idx efuse_id, uint8_t *data, uint16_t data_len)
	Get the value from efuse
void	set_efuse_period (void)
uint32_t	efuse_write_mac (uint8_t *data, uint16_t data_len)
uint32_t	efuse_read_mac (uint8_t *data, uint16_t data_len, uint8_t *left_time)
uint32_t	efuse_write_sle_mac (uint8_t *data, uint16_t data_len)
uint32_t	efuse_read_sle_mac (uint8_t *data, uint16_t data_len)
uint32_t	efuse_write_customer_rsvd_efuse (uint8_t *data, uint16_t data_len)
uint32_t	efuse_write_customer_rsvd2_efuse (uint8_t *data, uint16_t data_len)
uint32_t	efuse_read_customer_rsvd2_efuse (uint8_t *data, uint16_t data_len)

变量
uint32_t	g_efuse_boot_done_addr = 0x44008000 + 0x2c
	EFUSE的上电完成地址
uint32_t	g_efuse_base_addr [1] = { 0x44008000 + 0x30}
	IP的基地址
uint32_t	g_efuse_region_read_address [1] = { ( 0x44008000 + 0x800) }
	IP的读基地址
uint32_t	g_efuse_region_write_address [1] = { ( 0x44008000 + 0x800) }
	IP的写基地址

宏定义说明

BIT_SIZE_OF_BYTE

#define BIT_SIZE_OF_BYTE   8

BIT_TO_BYTE

#define BIT_TO_BYTE   8

EFUSE0_BASE_ADDR

#define EFUSE0_BASE_ADDR   0x44008000

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved.

Description: Provides efuse port template
History:
2023-3-4， Create file.

EFUSE_24M_CLK

#define EFUSE_24M_CLK   0x29

EFUSE_40M_CLK

#define EFUSE_40M_CLK   0x19

EFUSE_MAC_LEN

#define EFUSE_MAC_LEN   6

EFUSE_MAC_NUM

#define EFUSE_MAC_NUM   4

FIRST_MAC_ADDR_START_BIT

#define FIRST_MAC_ADDR_START_BIT   1584

FIRST_MAC_LOCK_BIT

#define FIRST_MAC_LOCK_BIT   314

FORTH_MAC_ADDR_START_BIT

#define FORTH_MAC_ADDR_START_BIT   1728

FORTH_MAC_LOCK_BIT

#define FORTH_MAC_LOCK_BIT   317

HAL_EFUSE0_READ_BASE_ADDR

#define HAL_EFUSE0_READ_BASE_ADDR   (EFUSE0_BASE_ADDR + 0x800)

HAL_EFUSE0_WRITE_BASE_ADDR

#define HAL_EFUSE0_WRITE_BASE_ADDR   (EFUSE0_BASE_ADDR + 0x800)

SECOND_MAC_ADDR_START_BIT

#define SECOND_MAC_ADDR_START_BIT   1632

SECOND_MAC_LOCK_BIT

#define SECOND_MAC_LOCK_BIT   315

SLE_MAC_ADDR_START_BIT

#define SLE_MAC_ADDR_START_BIT   1904

THIRD_MAC_ADDR_START_BIT

#define THIRD_MAC_ADDR_START_BIT   1680

THIRD_MAC_LOCK_BIT

#define THIRD_MAC_LOCK_BIT   316
