#include <stdint.h>
#include "core.h"
#include "interrupt_porting.h"

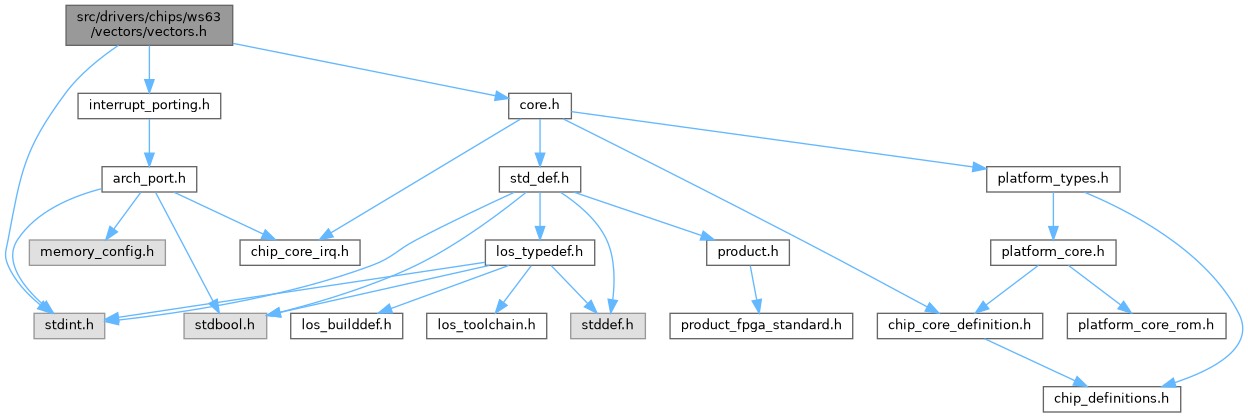

vectors.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	task_context_t

struct	exc_context_t

struct	exc_info

宏定义
#define	ISR_VECTOR_MAX_SUPPORTED (BUTT_IRQN - 1)
	Defined to be the highest ISR_VECTOR supported by the core

#define	LOCIEN_IRQ_NUM 32

#define	LOCIPRI_IRQ_NUM 8

#define	LOCIPRI_IRQ_BITS 4

#define	LOCIPRI_DEFAULT_VAL 0x11111111 /* The default interrupt priority is 1. */

#define	INTERRUPT_PRIO_HIGHEST 7

#define	INTERRUPT_PRIO_LOWEST 1

#define	RISCV_SYS_VECTOR_CNT 26

#define	RISCV_MIE_IRQ_VECTOR_CNT 6

#define	RISCV_CUSTOM_IRQ_VECTOR_CNT 60

#define	RISCV_LOCAL_IRQ_VECTOR_CNT (RISCV_MIE_IRQ_VECTOR_CNT + RISCV_SYS_VECTOR_CNT)

#define	RISCV_VECTOR_CNT (RISCV_LOCAL_IRQ_VECTOR_CNT + RISCV_CUSTOM_IRQ_VECTOR_CNT)

类型定义
typedef struct exc_info	exc_info_t

枚举
enum	isr_vector_t { USER_SOFTWARE_INT_IRQN = 0 , SUPERVISOR_SOFTWARE_INT_IRQN = 1 , RESERVED_INT2_IRQN = 2 , MACHINE_SOFTWARE_INT_IRQN = 3 , USER_TIMER_INT_IRQN = 4 , SUPERVISOR_TIMER_INT_IRQN = 5 , RESERVED_INT6_IRQN = 6 , MACHINE_TIMER_INT_IRQN = 7 , USER_EXTERNAL_INT_IRQN = 8 , SUPERVISOR_EXTERNAL_INT_IRQN = 9 , RESERVED_INT10_IRQN = 10 , MACHINE_EXTERNAL_INT_IRQN = 11 , NON_MASKABLE_INT_IRQN = 12 , RESERVED_INT13_IRQN = 13 , RESERVED_INT14_IRQN = 14 , RESERVED_INT15_IRQN = 15 , ISR_VECTOR_IRQ_0 = 16 , ISR_VECTOR_IRQ_1 , ISR_VECTOR_IRQ_2 , ISR_VECTOR_IRQ_3 , ISR_VECTOR_IRQ_4 , ISR_VECTOR_IRQ_5 , ISR_VECTOR_IRQ_6 , ISR_VECTOR_IRQ_7 , ISR_VECTOR_IRQ_8 , ISR_VECTOR_IRQ_9 , ISR_VECTOR_IRQ_10 , ISR_VECTOR_IRQ_11 , ISR_VECTOR_IRQ_12 , ISR_VECTOR_IRQ_13 , ISR_VECTOR_IRQ_14 , ISR_VECTOR_IRQ_15 , ISR_VECTOR_IRQ_16 , ISR_VECTOR_IRQ_17 , ISR_VECTOR_IRQ_18 , ISR_VECTOR_IRQ_19 , ISR_VECTOR_IRQ_20 , ISR_VECTOR_IRQ_21 , ISR_VECTOR_IRQ_22 , ISR_VECTOR_IRQ_23 , ISR_VECTOR_IRQ_24 , ISR_VECTOR_IRQ_25 , ISR_VECTOR_IRQ_26 , ISR_VECTOR_IRQ_27 , ISR_VECTOR_IRQ_28 , ISR_VECTOR_IRQ_29 , ISR_VECTOR_IRQ_30 , ISR_VECTOR_IRQ_31 , ISR_VECTOR_IRQ_32 , ISR_VECTOR_IRQ_33 , ISR_VECTOR_IRQ_34 , ISR_VECTOR_IRQ_35 , ISR_VECTOR_IRQ_36 , ISR_VECTOR_IRQ_37 , ISR_VECTOR_IRQ_38 , ISR_VECTOR_IRQ_39 , ISR_VECTOR_IRQ_40 , ISR_VECTOR_IRQ_41 , ISR_VECTOR_IRQ_42 , ISR_VECTOR_IRQ_43 , ISR_VECTOR_IRQ_44 , ISR_VECTOR_IRQ_45 , ISR_VECTOR_IRQ_46 , ISR_VECTOR_IRQ_47 , ISR_VECTOR_IRQ_48 , ISR_VECTOR_IRQ_49 , ISR_VECTOR_IRQ_50 , ISR_VECTOR_IRQ_51 , ISR_VECTOR_IRQ_52 , ISR_VECTOR_IRQ_53 , ISR_VECTOR_IRQ_54 , ISR_VECTOR_IRQ_55 , ISR_VECTOR_IRQ_56 , ISR_VECTOR_IRQ_57 , ISR_VECTOR_IRQ_58 , ISR_VECTOR_IRQ_59 , ISR_VECTOR_IRQ_60 , ISR_VECTOR_IRQ_61 , ISR_VECTOR_IRQ_62 , ISR_VECTOR_IRQ_63 , ISR_VECTOR_IRQ_64 , ISR_VECTOR_IRQ_65 , ISR_VECTOR_IRQ_66 , ISR_VECTOR_IRQ_67 , ISR_VECTOR_IRQ_68 , ISR_VECTOR_IRQ_69 , ISR_VECTOR_IRQ_70 , ISR_VECTOR_IRQ_71 , ISR_VECTOR_IRQ_72 , ISR_VECTOR_IRQ_73 , ISR_VECTOR_IRQ_74 , ISR_VECTOR_IRQ_75 , ISR_VECTOR_IRQ_76 , ISR_VECTOR_IRQ_77 , ISR_VECTOR_IRQ_78 , ISR_VECTOR_IRQ_79 , ISR_VECTOR_IRQ_80 , ISR_VECTOR_IRQ_81 }
	Interrupt vector identifiers 更多...

函数
const isr_function *	isr_get_ramexceptiontable_addr (void)
	Get the ram exception table address.

void	reserve_handler (void)
	Reserve handler process.

void	default_handler (void)
	Default handler process.

void	exc_info_display (const exc_info_t *exc)
	Print exception info.
