mac_ie.h 文件参考

#include "oal_ext_if.h"
#include "wlan_spec.h"
#include "mac_frame.h"
#include "wlan_mib_hcm.h"
#include "wlan_types_common.h"
#include "mac_user_ext.h"
#include "mac_vap_ext.h"

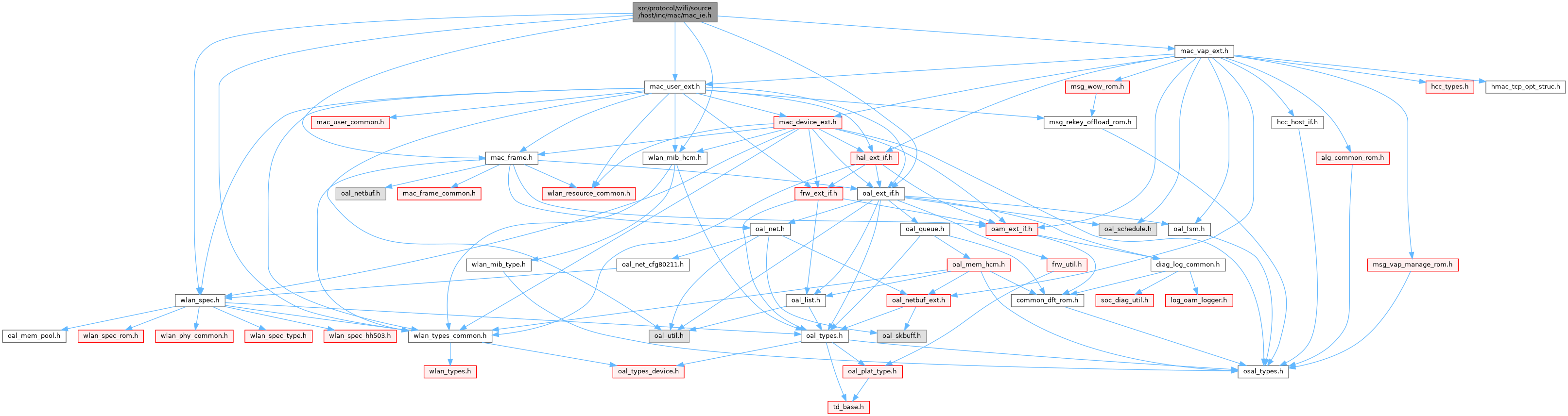

mac_ie.h 的引用(Include)关系图:

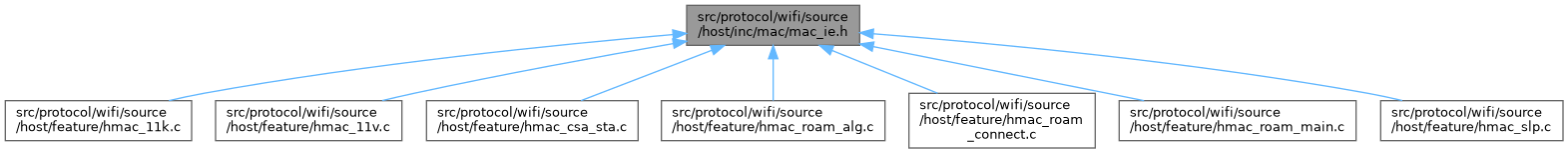

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

宏定义
#define	THIS_FILE_ID   OAM_FILE_ID_MAC_IE_H
#define	mac_ie_remain_len_is_enough(src_ie, curr_ie, ie_len, remain_len)    (((((curr_ie) - (src_ie)) + (remain_len)) <= (ie_len)) ? OSAL_TRUE : OSAL_FALSE)

函数
wlan_mib_mimo_power_save_enum_uint8	hmac_ie_proc_sm_power_save_field_etc (hmac_user_stru *hmac_user, osal_u8 smps)
oal_bool_enum_uint8	mac_ie_proc_ht_green_field_etc (const hmac_user_stru *hmac_user, hmac_vap_stru *hmac_vap, osal_u8 ht_green_field, oal_bool_enum prev_asoc_ht)
oal_bool_enum_uint8	mac_ie_proc_ht_supported_channel_width_etc (const hmac_user_stru *hmac_user, hmac_vap_stru *hmac_vap, osal_u8 supp_chan_width, oal_bool_enum prev_asoc_ht)
oal_bool_enum_uint8	hmac_ie_proc_lsig_txop_protection_support_etc (const hmac_user_stru *hmac_user, hmac_vap_stru *hmac_vap, osal_u8 lsig_txop_prot_supp, oal_bool_enum prev_asoc_ht)
osal_u32	hmac_ie_proc_ext_cap_ie_etc (hmac_user_stru *hmac_user, osal_u8 *payload)
osal_u8	hmac_ie_get_chan_num_etc (osal_u8 *frame_body, osal_u16 frame_len, osal_u16 offset, osal_u8 curr_chan)
oal_bool_enum_uint8	hmac_ie_check_p2p_action_etc (osal_u8 *payload)
osal_u32	mac_ie_proc_ht_sta_etc (const hmac_vap_stru *hmac_vap, osal_u8 *payload, osal_u16 offset_len, hmac_user_stru *mac_user_ap, osal_u16 *amsdu_maxsize)
osal_u8 *	hmac_ie_find_vendor_vht_ie (osal_u8 *frame, osal_u16 frame_len)
osal_u32	hmac_proc_ht_opern_ie_etc (hmac_vap_stru *hmac_vap, osal_u8 *payload, hmac_user_stru *hmac_user)
osal_u32	hmac_ie_proc_vht_opern_ie_etc (const hmac_vap_stru *hmac_vap, osal_u8 *payload, hmac_user_stru *hmac_user)
osal_u32	hmac_ie_get_wpa_cipher (osal_u8 *wpa_ie, mac_crypto_settings_stru *crypto)
osal_u32	hmac_ie_get_rsn_cipher (osal_u8 *rsn_ie, mac_crypto_settings_stru *crypto)

宏定义说明

mac_ie_remain_len_is_enough

#define mac_ie_remain_len_is_enough	(		src_ie,
			curr_ie,
			ie_len,
			remain_len
	)		(((((curr_ie) - (src_ie)) + (remain_len)) <= (ie_len)) ? OSAL_TRUE : OSAL_FALSE)

THIS_FILE_ID

#define THIS_FILE_ID   OAM_FILE_ID_MAC_IE_H

函数说明

hmac_ie_check_p2p_action_etc()

oal_bool_enum_uint8 hmac_ie_check_p2p_action_etc ( osal_u8 *  payload )

extern

hmac_ie_find_vendor_vht_ie()

osal_u8 * hmac_ie_find_vendor_vht_ie ( osal_u8 *  frame, osal_u16  frame_len  )

extern

hmac_ie_get_chan_num_etc()

osal_u8 hmac_ie_get_chan_num_etc ( osal_u8 *  frame_body, osal_u16  frame_len, osal_u16  offset, osal_u8  curr_chan  )

extern

hmac_ie_get_rsn_cipher()

osal_u32 hmac_ie_get_rsn_cipher	(	osal_u8 *	rsn_ie,
		mac_crypto_settings_stru *	crypto
	)

hmac_ie_get_wpa_cipher()

osal_u32 hmac_ie_get_wpa_cipher	(	osal_u8 *	wpa_ie,
		mac_crypto_settings_stru *	crypto
	)

hmac_ie_proc_ext_cap_ie_etc()

osal_u32 hmac_ie_proc_ext_cap_ie_etc ( hmac_user_stru *  hmac_user, osal_u8 *  payload  )

extern

hmac_ie_proc_lsig_txop_protection_support_etc()

oal_bool_enum_uint8 hmac_ie_proc_lsig_txop_protection_support_etc ( const hmac_user_stru *  hmac_user, hmac_vap_stru *  hmac_vap, osal_u8  lsig_txop_prot_supp, oal_bool_enum  prev_asoc_ht  )

extern

hmac_ie_proc_sm_power_save_field_etc()

wlan_mib_mimo_power_save_enum_uint8 hmac_ie_proc_sm_power_save_field_etc ( hmac_user_stru *  hmac_user, osal_u8  smps  )

extern

hmac_ie_proc_vht_opern_ie_etc()

osal_u32 hmac_ie_proc_vht_opern_ie_etc ( const hmac_vap_stru *  hmac_vap, osal_u8 *  payload, hmac_user_stru *  hmac_user  )

extern

hmac_proc_ht_opern_ie_etc()

osal_u32 hmac_proc_ht_opern_ie_etc ( hmac_vap_stru *  hmac_vap, osal_u8 *  payload, hmac_user_stru *  hmac_user  )

extern

mac_ie_proc_ht_green_field_etc()

oal_bool_enum_uint8 mac_ie_proc_ht_green_field_etc ( const hmac_user_stru *  hmac_user, hmac_vap_stru *  hmac_vap, osal_u8  ht_green_field, oal_bool_enum  prev_asoc_ht  )

extern

mac_ie_proc_ht_sta_etc()

osal_u32 mac_ie_proc_ht_sta_etc ( const hmac_vap_stru *  hmac_vap, osal_u8 *  payload, osal_u16  offset_len, hmac_user_stru *  mac_user_ap, osal_u16 *  amsdu_maxsize  )

extern

mac_ie_proc_ht_supported_channel_width_etc()

oal_bool_enum_uint8 mac_ie_proc_ht_supported_channel_width_etc ( const hmac_user_stru *  hmac_user, hmac_vap_stru *  hmac_vap, osal_u8  supp_chan_width, oal_bool_enum  prev_asoc_ht  )

extern
