hmac_user.h 文件参考

#include "hmac_ext_if.h"
#include "mac_resource_ext.h"
#include "hmac_tid.h"
#include "frw_hmac.h"
#include "msg_user_manage_rom.h"

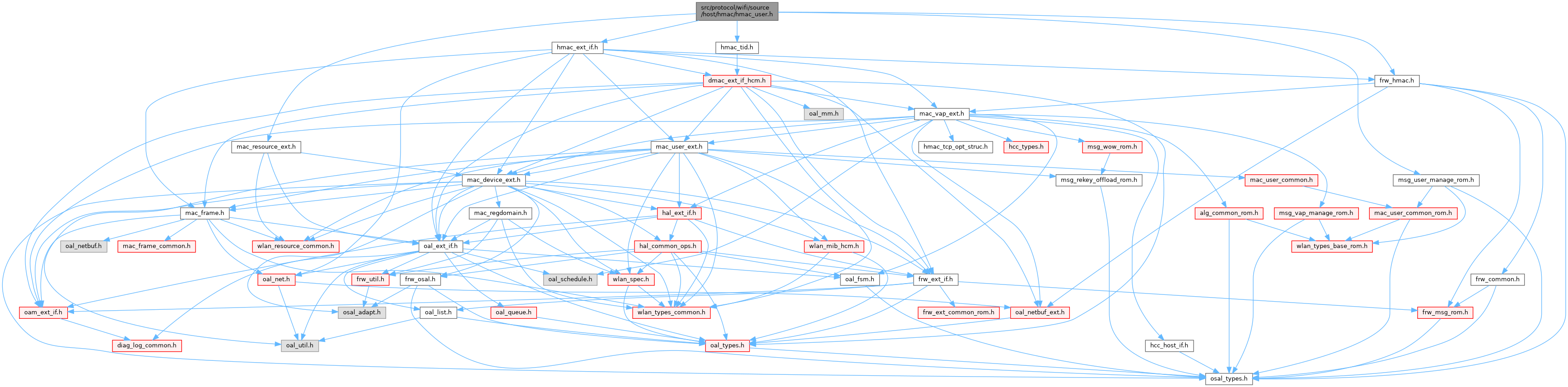

hmac_user.h 的引用(Include)关系图:

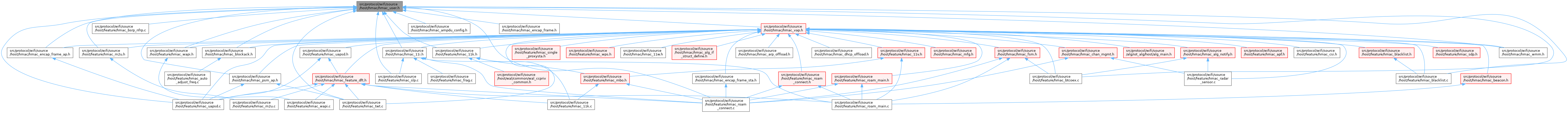

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	hmac_maxtimeout_timer_stru
struct	hmac_interval_timer_stru
struct	hmac_asoc_user_req_ie_stru
struct	hmac_usr_uapsd_statis_stru
struct	hmac_user_psm_stats_stru
struct	hmac_rssi_stat_info_stru
struct	hmac_rate_stat_info_stru
struct	hmac_user_rate_info_stru

宏定义
#define	THIS_FILE_ID   OAM_FILE_ID_HMAC_USER_H
#define	HMAC_ADDBA_EXCHANGE_ATTEMPTS   10 /* 试图建立ADDBA会话的最大允许次数 */
#define	hmac_user_is_amsdu_support(_user, _tid)   (((_user)->amsdu_supported) & (0x01 << ((_tid) & 0x07)))
#define	hmac_user_set_amsdu_support(_user, _tid)   (((_user)->amsdu_supported) |= (0x01 << ((_tid) & 0x07)))
#define	hmac_user_set_amsdu_not_support(_user, _tid)    (((_user)->amsdu_supported) &= (osal_u8)(~(0x01 << ((_tid) & 0x07))))
#define	hmac_user_stats_pkt_incr(_member, _cnt)   ((_member) += (_cnt))
#define	HMAC_COMPATIBILITY_PKT_NUM_LIMIT   2000
#define	HMAC_INVALID_USER_LUT_INDEX   (WLAN_ACTIVE_USER_MAX_NUM) /* 无效的user lut index */

类型定义
typedef osal_u8	hmac_user_ps_state_enum_uint8
typedef osal_u8	hmac_user_state_enum_uint8
typedef osal_u8	psm_queue_type_enum_uint8
typedef osal_u32(*	hmac_user_keepalive_timer_proc_cb) (osal_void *arg)

枚举
enum	hmac_user_ps_state_enum { HMAC_USER_PS_STATE_ACTIVE = 0 , HMAC_USER_PS_STATE_DOZE = 1 , HMAC_USER_PS_STATE_BUTT }
enum	hmac_user_state_enum { HMAC_USER_STATE_PS , HMAC_USER_STATE_ACTIVE , HMAC_USER_STATE_BUTT }
enum	psm_queue_type_enum { PSM_QUEUE_TYPE_NORMAL , PSM_QUEUE_TYPE_IMPORTANT , PSM_QUEUE_TYPE_BUTT }

函数
OAL_STATIC OAL_INLINE oal_bool_enum_uint8	hmac_user_ht_support (const hmac_user_stru *hmac_user)
OAL_STATIC OAL_INLINE oal_bool_enum_uint8	hmac_user_xht_support (const hmac_user_stru *hmac_user)
osal_u32	hmac_user_set_asoc_req_ie (hmac_user_stru *hmac_user, osal_u8 *payload, osal_u32 len, osal_u8 reass_flag)
osal_u32	hmac_user_free_asoc_req_ie (hmac_user_stru *hmac_user)
osal_u32	hmac_user_set_avail_num_space_stream_etc (hmac_user_stru *hmac_user, wlan_nss_enum_uint8 vap_nss)
osal_u32	hmac_user_del_etc (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user)
osal_u32	hmac_user_add_etc (hmac_vap_stru *hmac_vap, osal_u8 *mac_addr, osal_u16 *pus_user_index)
osal_u32	hmac_user_add_multi_user_etc (hmac_vap_stru *hmac_vap, osal_u16 *pus_user_index)
osal_u32	hmac_user_del_multi_user_etc (hmac_vap_stru *hmac_vap)
osal_u32	hmac_user_add_notify_alg_etc (hmac_vap_stru *hmac_vap, osal_u16 user_idx)
osal_u32	hmac_update_user_last_active_time (hmac_vap_stru *hmac_vap, osal_u8 len, osal_u8 *param)
osal_void	hmac_tid_clear_etc (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, osal_bool lock_free_flag)
hmac_user_stru *	mac_res_get_hmac_user_etc (osal_u16 idx)
hmac_user_stru *	mac_vap_get_hmac_user_by_addr_etc (hmac_vap_stru *hmac_vap, const osal_u8 *mac_addr)
osal_u32	mac_user_init_etc (hmac_user_stru *hmac_user, osal_u16 user_idx, osal_u8 *mac_addr, hmac_vap_stru *hmac_vap)
osal_void	hmac_user_set_lut_info (hal_to_dmac_device_stru *hal_device, osal_u8 lut_index, osal_u8 *mac_addr)
osal_void	hmac_user_del_lut_info (osal_u8 lut_index)
osal_u32	hmac_user_set_bandwith_handler (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, wlan_bw_cap_enum_uint8 bw_cap)
osal_u32	hmac_user_add_multi_user (hmac_vap_stru *hmac_vap, osal_u16 multi_user_idx)
osal_s32	hmac_user_add_notify_alg (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, frw_msg *msg)
osal_void	hmac_user_del (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, mac_ap_type_enum_uint8 ap_type)
osal_void	hmac_user_key_search_fail_handler (hmac_vap_stru *hmac_vap, hmac_user_stru *hmac_user, mac_ieee80211_frame_stru *frame_hdr)
osal_void	hmac_user_pause (hmac_user_stru *hmac_user)
osal_u32	hmac_user_resume (hmac_user_stru *hmac_user)
osal_void	hmac_user_init_slottime (const hmac_user_stru *hmac_user)
osal_u32	hmac_user_get_tid_by_num (hmac_user_stru *hmac_user, osal_u8 tid_num, hmac_tid_stru **tid_queue)
osal_void	hmac_ap_pause_all_user (const hmac_vap_stru *hmac_vap)
osal_void	hmac_rx_compatibility_identify (hmac_user_stru *hmac_user, osal_u32 rate_kbps)
osal_void	hmac_rx_compatibility_show_stat (hmac_user_stru *hmac_user)
oal_bool_enum_uint8	hmac_psm_is_psm_empty (hmac_user_stru *hmac_user)
oal_bool_enum_uint8	hmac_psm_is_tid_empty (const hmac_user_stru *hmac_user)
osal_u32	hmac_psm_tid_mpdu_num (const hmac_user_stru *hmac_user)
osal_void	hmac_ap_resume_all_user (hmac_vap_stru *hmac_vap)
osal_void	hmac_user_ps_queue_overrun_notify (const hmac_vap_stru *hmac_vap)
osal_s32	hmac_user_sync (hmac_user_stru *hmac_user)
osal_void	hmac_user_use_cnt_dec (hmac_user_stru *hmac_user)
osal_void	hmac_user_use_cnt_inc (osal_u16 user_idx, hmac_user_stru **user)
osal_u32	hmac_user_keepalive_timer (osal_void *arg)
osal_s32	hmac_config_set_user_app_ie_cb (hmac_vap_stru *hmac_vap, frw_msg *msg)
oal_bool_enum_uint8	hmac_user_get_ps_mode (const hmac_user_stru *hmac_user)
osal_u32	hmac_alg_distance_notify_hook (hal_to_dmac_device_stru *hal_device, osal_u8 distance)

宏定义说明

HMAC_ADDBA_EXCHANGE_ATTEMPTS

#define HMAC_ADDBA_EXCHANGE_ATTEMPTS   10 /* 试图建立ADDBA会话的最大允许次数 */

HMAC_COMPATIBILITY_PKT_NUM_LIMIT

#define HMAC_COMPATIBILITY_PKT_NUM_LIMIT   2000

HMAC_INVALID_USER_LUT_INDEX

#define HMAC_INVALID_USER_LUT_INDEX   (WLAN_ACTIVE_USER_MAX_NUM) /* 无效的user lut index */

hmac_user_is_amsdu_support

#define hmac_user_is_amsdu_support	(		_user,
			_tid
	)		(((_user)->amsdu_supported) & (0x01 << ((_tid) & 0x07)))

hmac_user_set_amsdu_not_support

#define hmac_user_set_amsdu_not_support	(		_user,
			_tid
	)		(((_user)->amsdu_supported) &= (osal_u8)(~(0x01 << ((_tid) & 0x07))))

hmac_user_set_amsdu_support

#define hmac_user_set_amsdu_support	(		_user,
			_tid
	)		(((_user)->amsdu_supported) |= (0x01 << ((_tid) & 0x07)))

hmac_user_stats_pkt_incr

#define hmac_user_stats_pkt_incr	(		_member,
			_cnt
	)		((_member) += (_cnt))

THIS_FILE_ID

#define THIS_FILE_ID   OAM_FILE_ID_HMAC_USER_H

类型定义说明

hmac_user_keepalive_timer_proc_cb

typedef osal_u32(* hmac_user_keepalive_timer_proc_cb) (osal_void *arg)

hmac_user_ps_state_enum_uint8

typedef osal_u8 hmac_user_ps_state_enum_uint8

hmac_user_state_enum_uint8

typedef osal_u8 hmac_user_state_enum_uint8

psm_queue_type_enum_uint8

typedef osal_u8 psm_queue_type_enum_uint8

枚举类型说明

hmac_user_ps_state_enum

enum hmac_user_ps_state_enum

枚举值
HMAC_USER_PS_STATE_ACTIVE
HMAC_USER_PS_STATE_DOZE
HMAC_USER_PS_STATE_BUTT

hmac_user_state_enum

enum hmac_user_state_enum

枚举值
HMAC_USER_STATE_PS
HMAC_USER_STATE_ACTIVE
HMAC_USER_STATE_BUTT

psm_queue_type_enum

enum psm_queue_type_enum

枚举值
PSM_QUEUE_TYPE_NORMAL
PSM_QUEUE_TYPE_IMPORTANT
PSM_QUEUE_TYPE_BUTT

函数说明

hmac_alg_distance_notify_hook()

osal_u32 hmac_alg_distance_notify_hook	(	hal_to_dmac_device_stru *	hal_device,
		osal_u8	distance
	)

hmac_ap_pause_all_user()

osal_void hmac_ap_pause_all_user

(

const hmac_vap_stru *

hmac_vap

)

hmac_ap_resume_all_user()

osal_void hmac_ap_resume_all_user

(

hmac_vap_stru *

hmac_vap

)

hmac_config_set_user_app_ie_cb()

osal_s32 hmac_config_set_user_app_ie_cb	(	hmac_vap_stru *	hmac_vap,
		frw_msg *	msg
	)

hmac_psm_is_psm_empty()

oal_bool_enum_uint8 hmac_psm_is_psm_empty

(

hmac_user_stru *

hmac_user

)

hmac_psm_is_tid_empty()

oal_bool_enum_uint8 hmac_psm_is_tid_empty

(

const hmac_user_stru *

hmac_user

)

hmac_psm_tid_mpdu_num()

osal_u32 hmac_psm_tid_mpdu_num

(

const hmac_user_stru *

hmac_user

)

hmac_rx_compatibility_identify()

osal_void hmac_rx_compatibility_identify	(	hmac_user_stru *	hmac_user,
		osal_u32	rate_kbps
	)

hmac_rx_compatibility_show_stat()

osal_void hmac_rx_compatibility_show_stat

(

hmac_user_stru *

hmac_user

)

hmac_tid_clear_etc()

osal_void hmac_tid_clear_etc ( hmac_vap_stru *  hmac_vap, hmac_user_stru *  hmac_user, osal_bool  lock_free_flag  )

extern

hmac_update_user_last_active_time()

osal_u32 hmac_update_user_last_active_time ( hmac_vap_stru *  hmac_vap, osal_u8  len, osal_u8 *  param  )

extern

hmac_user_add_etc()

osal_u32 hmac_user_add_etc ( hmac_vap_stru *  hmac_vap, osal_u8 *  mac_addr, osal_u16 *  pus_user_index  )

extern

hmac_user_add_multi_user()

osal_u32 hmac_user_add_multi_user	(	hmac_vap_stru *	hmac_vap,
		osal_u16	multi_user_idx
	)

hmac_user_add_multi_user_etc()

osal_u32 hmac_user_add_multi_user_etc ( hmac_vap_stru *  hmac_vap, osal_u16 *  pus_user_index  )

extern

hmac_user_add_notify_alg()

osal_s32 hmac_user_add_notify_alg	(	hmac_vap_stru *	hmac_vap,
		hmac_user_stru *	hmac_user,
		frw_msg *	msg
	)

hmac_user_add_notify_alg_etc()

osal_u32 hmac_user_add_notify_alg_etc ( hmac_vap_stru *  hmac_vap, osal_u16  user_idx  )

extern

hmac_user_del()

osal_void hmac_user_del	(	hmac_vap_stru *	hmac_vap,
		hmac_user_stru *	hmac_user,
		mac_ap_type_enum_uint8	ap_type
	)

hmac_user_del_etc()

osal_u32 hmac_user_del_etc ( hmac_vap_stru *  hmac_vap, hmac_user_stru *  hmac_user  )

extern

hmac_user_del_lut_info()

osal_void hmac_user_del_lut_info

(

osal_u8

lut_index

)

hmac_user_del_multi_user_etc()

osal_u32 hmac_user_del_multi_user_etc ( hmac_vap_stru *  hmac_vap )

extern

hmac_user_free_asoc_req_ie()

osal_u32 hmac_user_free_asoc_req_ie ( hmac_user_stru *  hmac_user )

extern

hmac_user_get_ps_mode()

oal_bool_enum_uint8 hmac_user_get_ps_mode

(

const hmac_user_stru *

hmac_user

)

hmac_user_get_tid_by_num()

osal_u32 hmac_user_get_tid_by_num	(	hmac_user_stru *	hmac_user,
		osal_u8	tid_num,
		hmac_tid_stru **	tid_queue
	)

hmac_user_ht_support()

OAL_STATIC OAL_INLINE oal_bool_enum_uint8 hmac_user_ht_support

(

const hmac_user_stru *

hmac_user

)

hmac_user_init_slottime()

osal_void hmac_user_init_slottime

(

const hmac_user_stru *

hmac_user

)

hmac_user_keepalive_timer()

osal_u32 hmac_user_keepalive_timer

(

osal_void *

arg

)

hmac_user_key_search_fail_handler()

osal_void hmac_user_key_search_fail_handler	(	hmac_vap_stru *	hmac_vap,
		hmac_user_stru *	hmac_user,
		mac_ieee80211_frame_stru *	frame_hdr
	)

hmac_user_pause()

osal_void hmac_user_pause

(

hmac_user_stru *

hmac_user

)

hmac_user_ps_queue_overrun_notify()

osal_void hmac_user_ps_queue_overrun_notify

(

const hmac_vap_stru *

hmac_vap

)

hmac_user_resume()

osal_u32 hmac_user_resume

(

hmac_user_stru *

hmac_user

)

hmac_user_set_asoc_req_ie()

osal_u32 hmac_user_set_asoc_req_ie ( hmac_user_stru *  hmac_user, osal_u8 *  payload, osal_u32  len, osal_u8  reass_flag  )

extern

hmac_user_set_avail_num_space_stream_etc()

osal_u32 hmac_user_set_avail_num_space_stream_etc ( hmac_user_stru *  hmac_user, wlan_nss_enum_uint8  vap_nss  )

extern

hmac_user_set_bandwith_handler()

osal_u32 hmac_user_set_bandwith_handler	(	hmac_vap_stru *	hmac_vap,
		hmac_user_stru *	hmac_user,
		wlan_bw_cap_enum_uint8	bw_cap
	)

hmac_user_set_lut_info()

osal_void hmac_user_set_lut_info	(	hal_to_dmac_device_stru *	hal_device,
		osal_u8	lut_index,
		osal_u8 *	mac_addr
	)

hmac_user_sync()

osal_s32 hmac_user_sync

(

hmac_user_stru *

hmac_user

)

hmac_user_use_cnt_dec()

osal_void hmac_user_use_cnt_dec

(

hmac_user_stru *

hmac_user

)

hmac_user_use_cnt_inc()

osal_void hmac_user_use_cnt_inc	(	osal_u16	user_idx,
		hmac_user_stru **	user
	)

hmac_user_xht_support()

OAL_STATIC OAL_INLINE oal_bool_enum_uint8 hmac_user_xht_support

(

const hmac_user_stru *

hmac_user

)

mac_res_get_hmac_user_etc()

hmac_user_stru * mac_res_get_hmac_user_etc ( osal_u16  idx )

extern

mac_user_init_etc()

osal_u32 mac_user_init_etc ( hmac_user_stru *  hmac_user, osal_u16  user_idx, osal_u8 *  mac_addr, hmac_vap_stru *  hmac_vap  )

extern

mac_vap_get_hmac_user_by_addr_etc()

hmac_user_stru * mac_vap_get_hmac_user_by_addr_etc ( hmac_vap_stru *  hmac_vap, const osal_u8 *  mac_addr  )

extern
