#include "core.h"
#include "errcode.h"
#include "common_def.h"

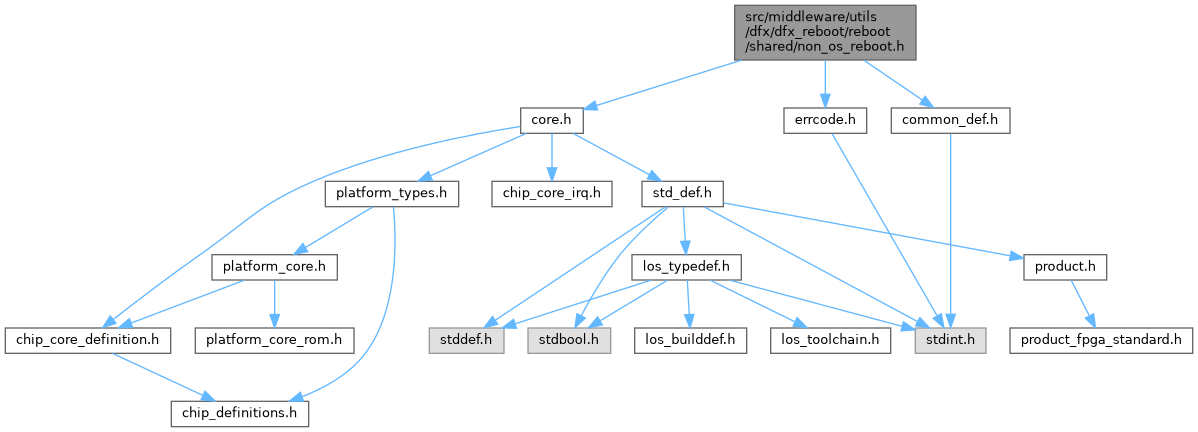

non_os_reboot.h 的引用(Include)关系图:

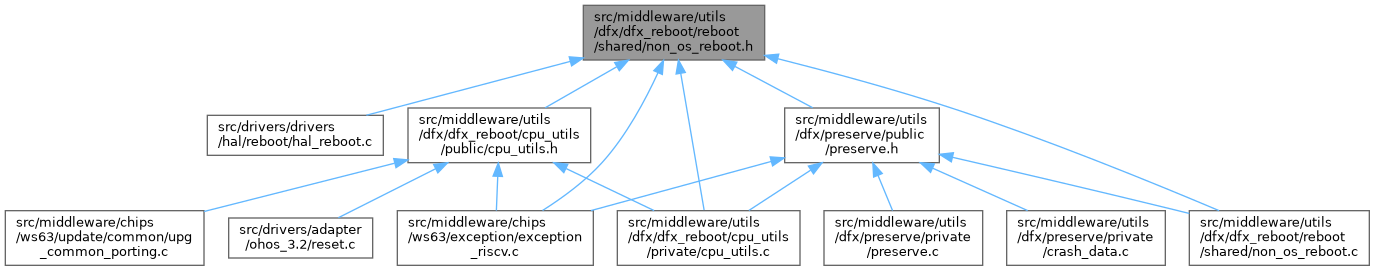

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	REBOOT_POWER_ON_TRIGGER_STATUS 0xdead0001UL

#define	REBOOT_SOFT_RESET_TRIGER_STATUS 0xdead0002UL

#define	REBOOT_NMI_WDGTIMEOUT_TRIGGER_STATUS 0xdead0003UL

#define	REBOOT_NMI_XIP_CTRL_TRIGER_STATUS 0xdead0004UL

#define	REBOOT_NMI_XIP_CACHE_TRIGGER_STATUS 0xdead0005UL

#define	REBOOT_HARD_FAULT_TRIGER_STATUS 0xdead0006UL

#define	REBOOT_SOFT_PANIC_TRIGGER_STATUS 0xdead0007UL

#define	REBOOT_OTHER_CORE_ABNORMAL_TRIGER_STATUS 0xdead0008UL

#define	REBOOT_HARD_WDGTIMEOUT_TRIGER_STATUS 0xdead0009UL

#define	REBOOT_BT_WDGTIMEOUT_TRIGER_STATUS 0xdead000aUL

#define	REBOOT_ULP_WDGTIMEOUT_TRIGER_STATUS 0xdead000bUL

#define	REBOOT_UPG_COMPLETION_TRIGER_STATUS 0xdead000cUL

#define	REBOOT_ULP_PIN_RST_TRIGER_STATUS 0xdead000dUL

#define	REBOOT_UNDEFINED_TRIGER_STATUS 0xdeadaaaaUL

#define	STANDARD_REBOOT_MAGIC 0xdeaddeadUL

#define	ABNORMAL_REBOOT_MAGIC 0xdeadbeafUL

枚举
enum	reboot_cause_t { REBOOT_CAUSE_UNKNOWN = 0x0000 , REBOOT_CAUSE_BT_RESET_UNKNOWN = 0x8000 , REBOOT_CAUSE_BT_SYSRESETREQ = 0x8001 , REBOOT_CAUSE_BT_WATCHDOG = 0x8002 , REBOOT_CAUSE_BT_STANDARD_CHIP_WATCHDOG = 0x8004 , REBOOT_CAUSE_BT_UPDATER_CHIP_WATCHDOG = 0x8005 , REBOOT_CAUSE_BT_RPC_TIMEOUT = 0x8006 , REBOOT_CAUSE_BT_HARDFAULT = 0x8007 , REBOOT_CAUSE_BT_NNMIFAULT = 0x8008 , REBOOT_CAUSE_BT_UNKNOWN_ISR = 0x8009 , REBOOT_CAUSE_BT_PANIC = 0x800a , REBOOT_CAUSE_BT_STD_WDT_FRST = 0x800b , REBOOT_CAUSE_BT_STD_CHIP_WDT_FRST = 0x800c , REBOOT_CAUSE_BT_XIP_HARDFAULT = 0x800d , REBOOT_CAUSE_BT_SSB_EXCEPTION_REBOOT = 0x800e , REBOOT_CAUSE_BT_BUCK1_PROTECT_FRST = 0x8010 , REBOOT_CAUSE_BT_BUCK2_PROTECT_FRST = 0x8020 , REBOOT_CAUSE_BT_MONITOR_REBOOT_REQ = 0x8100 , REBOOT_CAUSE_BT_REGIONS_UPDATED = 0x8101 , REBOOT_CAUSE_BT_FOTA_UPGRADE = 0x8102 , REBOOT_CAUSE_BT_END = REBOOT_CAUSE_BT_FOTA_UPGRADE + 1 , REBOOT_CAUSE_GNSS_GLOBAL = 0x7000 , REBOOT_CAUSE_GNSS_NMI = 0x7001 , REBOOT_CAUSE_GNSS_HARDFAULT = 0x7002 , REBOOT_CAUSE_GNSS_PANIC = 0x7003 , REBOOT_CAUSE_GNSS_END = REBOOT_CAUSE_GNSS_PANIC + 1 , REBOOT_CAUSE_PROTOCOL_GLOBAL = 0x4000 , REBOOT_CAUSE_PROTOCOL_SYSRESETREQ = 0x4001 , REBOOT_CAUSE_PROTOCOL_WATCHDOG = 0x4002 , REBOOT_CAUSE_PROTOCOL_AXI_LOCK = 0x4003 , REBOOT_CAUSE_PROTOCOL_AXI_LOCK_TO_BT = 0x4004 , REBOOT_CAUSE_PROTOCOL_WDT_FRST = 0x4005 , REBOOT_CAUSE_PROTOCOL1_WATCHDOG = 0x4006 , REBOOT_CAUSE_PROTOCOL_ADDR_MON = 0x4007 , REBOOT_CAUSE_PROTOCOL1_ADDR_MON = 0x4008 , REBOOT_CAUSE_PROTOCOL_RPC_TIMEOUT = 0x4100 , REBOOT_CAUSE_PROTOCOL_END = REBOOT_CAUSE_PROTOCOL_RPC_TIMEOUT + 1 , REBOOT_CAUSE_APPLICATION_GLOBAL = 0x2000 , REBOOT_CAUSE_APPLICATION_SYSRESETREQ = 0x2001 , REBOOT_CAUSE_APPLICATION_WATCHDOG = 0x2002 , REBOOT_CAUSE_APPLICATION_PANIC = 0x2003 , REBOOT_CAUSE_APPLICATION_HARDFAULT = 0x2004 , REBOOT_CAUSE_APPLICATION_NNMIFAULT = 0x2005 , REBOOT_CAUSE_APPLICATION_UNKNOWN_ISR = 0x2006 , REBOOT_CAUSE_APPLICATION_WDT_FRST = 0x2007 , REBOOT_CAUSE_APPLICATION_CHIP_WDT = 0x2008 , REBOOT_CAUSE_APPLICATION_XIP_CTRL = 0x2009 , REBOOT_CAUSE_APPLICATION_XIP_CACHE = 0x200a , REBOOT_CAUSE_APPLICATION_MDMA = 0x200b , REBOOT_CAUSE_APPLICATION_SMDMA = 0x200c , REBOOT_CAUSE_APPLICATION_STD_CHIP_WDT_FRST = 0x200d , REBOOT_CAUSE_APPLICATION_STD_BT_WDT_FRST = 0x200e , REBOOT_CAUSE_APPLICATION_STD_ULP_WDT_FRST = 0x200f , REBOOT_CAUSE_APPLICATION_STD_ULP_PIN_FRST = 0x2010 , REBOOT_CAUSE_UPG_COMPLETION = 0x2040 , REBOOT_CAUSE_MON_MEM_ALMOST_EMPTY = 0x2041 , REBOOT_CAUSE_DFU_UPG_FAIL = 0x2042 , REBOOT_CAUSE_APPLICATION_SLDM = 0x2080 , REBOOT_CAUSE_APPLICATION_RPC_TIMEOUT = 0x2100 , REBOOT_CAUSE_POWER_ON = 0xF0F0 }
	This is a special enum, it is split into three sections Only 16 bits are used. Bits 13 to 15 are flags setting which core caused the reboot Bit 8 sets if the reset reason is custom or fixed Bits 0 to 7 contain the reason 更多...

enum	veto_reboot_reason_t { VETO_REBOOT_REASON_RESERVE , VETO_REBOOT_REASON_WR_NV , VETO_REBOOT_REASON_WR_MR_DOC , VETO_REBOOT_REASON_USR_RESERVED_2 , VETO_REBOOT_REASON_USR_RESERVED_3 , VETO_REBOOT_REASON_USR_RESERVED_4 , VETO_REBOOT_REASON_USR_RESERVED_5 , VETO_REBOOT_REASON_USR_RESERVED_6 , VETO_REBOOT_REASON_USR_RESERVED_7 , VETO_REBOOT_REASON_NDM_METER_CHECK , VETO_REBOOT_REASON_TF_IDENTIFY , VETO_REBOOT_REASON_LOCK_NETWORK , VETO_REBOOT_REASON_SYS_RST_DELAY_ENTER_PHY_TEST_MODE , VETO_REBOOT_REASON_UPG , VETO_REBOOT_REASON_BOOT_UPG , VETO_REBOOT_REASON_NO_PB , VETO_REBOOT_REASON_SUIT_NET , VETO_REBOOT_REASON_WRT_SNID , VETO_REBOOT_REASON_RELATING_RANDOM_NUM , VETO_REBOOT_REASON_MAX }

函数
void	reboot_init (void)
	Initialise the reboot subsystem

void	reboot_deinit (void)
	De-initialise the reboot subsystem

void	reboot_chip (void)
	Perform a chip reboot.

reboot_cause_t	reboot_get_security_reboot_reason (void)
	Gets the last reason that the security core rebooted

void	reboot_system (reboot_cause_t cause)
	Perform a software reboot of the entire system.

reboot_cause_t	reboot_get_reset_reason (void)
	Gets the reason of the last reset

uint32_t	uapi_reboot_vote_against (veto_reboot_reason_t reason, uint32_t sec)

void	uapi_reboot_unvote_against (veto_reboot_reason_t reason)

void	uapi_reboot_system_check_veto (reboot_cause_t reason)
