#include "crypto_pke_struct.h"

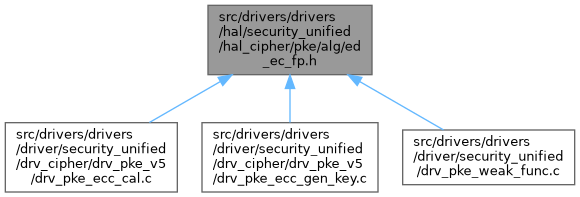

ed_ec_fp.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

函数
td_s32	ed_ecfp_mul_naf (const drv_pke_ecc_curve ecc, const drv_pke_data k, const drv_pke_ecc_point p, const drv_pke_ecc_point r CIPHER_CHECK_WORD)
	R = k * G, point multiplication.

td_s32	ed_ecfp_mul_naf_cal (td_u32 work_len, const drv_pke_data *k)
	R = k * G, point multiplication. ed inner function, while the G is the default point G(gx, gy). And before call this function, the curve init parameters should have been set into PKE DRAM.

td_s32	point_mul_compress (const drv_pke_data k, const drv_pke_ecc_point u, const drv_pke_data p, const drv_pke_ecc_point r)
	R = k * u, point multiplication with point compress.

td_s32	ed_secret_to_public (const drv_pke_ecc_curve ecc, const drv_pke_data priv_key, const drv_pke_ecc_point *pub_key)
	Qu = d * G, get public key from private key.

td_s32	sha512_modq (const drv_pke_data q, const drv_pke_data in1, const drv_pke_data in2, const drv_pke_data in3, const drv_pke_data *out)
	calculate the sha512 result of three segment buffer and modulo the result by q.

td_s32	ed_ecfn_sign_s (const drv_pke_data sk, const drv_pke_data r, const drv_pke_data h, const drv_pke_data n, const drv_pke_data *s)
	multi-multiplication to calculate the signature s. s = (r + h * sk) mod n.

td_s32	ed_mul_sub (const drv_pke_ecc_curve ecc, const drv_pke_data s, const drv_pke_data h, const drv_pke_ecc_point a, const drv_pke_ecc_point *r)
	calculate sB - hA for ed verify. the result is in ed_addr_cx, ed_addr_cy and ed_addr_cz, which is in Jacobin coordinate.

td_s32	secret_expand (const td_u8 secret, td_u8 a, td_u8 *prefix, const td_u32 len)
	private key expand function. from 32 byte private key get 64 byte output. (a, prefix) = sha512(secret).

td_s32	point_decompress (const drv_pke_data enc_pkey, const drv_pke_data p, const drv_pke_ecc_point *pkey)
	point decompress, from little endian data get real point by curve equation.

函数说明

◆ ed_ecfn_sign_s()

td_s32 ed_ecfn_sign_s	(	const drv_pke_data *	sk,
		const drv_pke_data *	r,
		const drv_pke_data *	h,
		const drv_pke_data *	n,
		const drv_pke_data *	s
	)

multi-multiplication to calculate the signature s. s = (r + h * sk) mod n.

参数

sk	the first 32 bytes of the decoded private key.
r	the result of sha512 modulo L, r = sha512(prefix \|\| msg) mod n.
h	the result of sha512 modulo L, h = sha512(R \|\| A \|\| msg) mod n. R and A is the encoded rG and pubkey.
n	the group order of G.
s	the signature result.

返回: td_s32 TD_SUCCESS or others.

◆ ed_ecfp_mul_naf()

td_s32 ed_ecfp_mul_naf	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	k,
		const drv_pke_ecc_point *	p,
		const drv_pke_ecc_point *r	CIPHER_CHECK_WORD
	)

R = k * G, point multiplication.

Create: 2022-10-31

参数

ecc	input ecc curve param.
k	the scalar.
p	the input point.
r	the output point.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回: td_s32 TD_SUCCESS or others.

◆ ed_ecfp_mul_naf_cal()

td_s32 ed_ecfp_mul_naf_cal	(	td_u32	work_len,
		const drv_pke_data *	k
	)

R = k * G, point multiplication. ed inner function, while the G is the default point G(gx, gy). And before call this function, the curve init parameters should have been set into PKE DRAM.

参数

work_len	work_len = align_len / ALIGNED_TO_WORK_LEN_IN_BYTE.
k	the scalar.

返回: td_s32 TD_SUCCESS or others.

◆ ed_mul_sub()

td_s32 ed_mul_sub	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	s,
		const drv_pke_data *	h,
		const drv_pke_ecc_point *	a,
		const drv_pke_ecc_point *	r
	)

calculate sB - hA for ed verify. the result is in ed_addr_cx, ed_addr_cy and ed_addr_cz, which is in Jacobin coordinate.

注意: Need to set rrp and use p to update montgomery parameter first.

参数

ecc	the input ed curve parameters.
s	the decoded signature value.
h	the result of sha512 modulo L, h = sha512(R \|\| A \|\| msg) mod n. R and A is the encoded rG and pubkey.
a	the decoded public key.
r	the output result.

返回: td_s32 TD_SUCCESS or others.

◆ ed_secret_to_public()

td_s32 ed_secret_to_public	(	const drv_pke_ecc_curve *	ecc,
		const drv_pke_data *	priv_key,
		const drv_pke_ecc_point *	pub_key
	)

Qu = d * G, get public key from private key.

参数

ecc	the curve parameter.
priv_key	the input private key.
pub_key	the output public key.

◆ point_decompress()

td_s32 point_decompress	(	const drv_pke_data *	enc_pkey,
		const drv_pke_data *	p,
		const drv_pke_ecc_point *	pkey
	)

point decompress, from little endian data get real point by curve equation.

注意: Need to set rrp and use p to update montgomery parameter first.

参数

enc_pkey	the encoded point value.
p	the module.
pkey	the the decoded point.

返回: td_s32

◆ point_mul_compress()

td_s32 point_mul_compress	(	const drv_pke_data *	k,
		const drv_pke_ecc_point *	u,
		const drv_pke_data *	p,
		const drv_pke_ecc_point *	r
	)

R = k * u, point multiplication with point compress.

参数

k	the scalar.
u	the input point.
p	the modulur.
r	the output point.

返回: td_s32 TD_SUCCESS or others.

◆ secret_expand()

td_s32 secret_expand	(	const td_u8 *	secret,
		td_u8 *	a,
		td_u8 *	prefix,
		const td_u32	len
	)

private key expand function. from 32 byte private key get 64 byte output. (a, prefix) = sha512(secret).

参数

secret	the input private key.
a	the first 32 byte of the sha512(secret).
prefix	the last 32 byte of the sha512(secret).
len	the byte length of the input private key.

返回: td_s32

◆ sha512_modq()

td_s32 sha512_modq	(	const drv_pke_data *	q,
		const drv_pke_data *	in1,
		const drv_pke_data *	in2,
		const drv_pke_data *	in3,
		const drv_pke_data *	out
	)

calculate the sha512 result of three segment buffer and modulo the result by q.

参数

q	the modulus.
in1	the first segment.
in2	the second segment.
in3	the third segment.
out	the result.

返回: td_s32 TD_SUCCESS or others.
