los_queue_pri.h 文件参考

#include "los_queue.h"

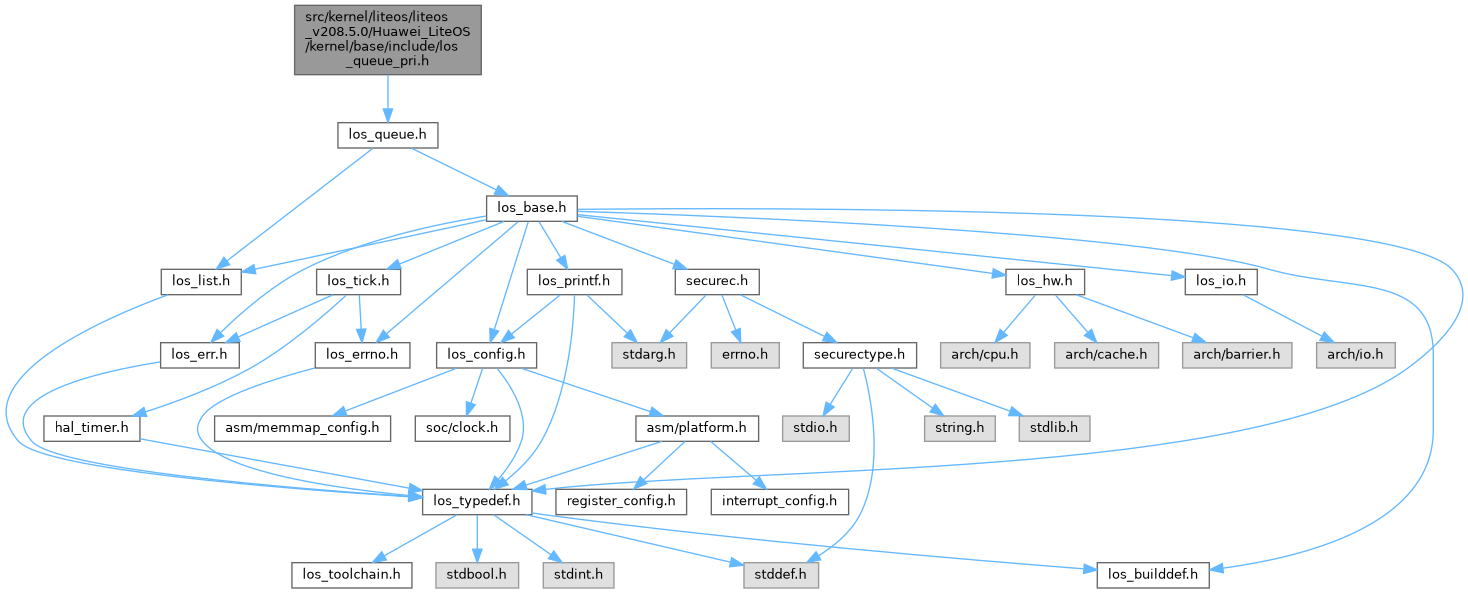

los_queue_pri.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

浏览源代码.

结构体
struct	LosQueueCB

宏定义
#define	OS_QUEUE_OPERATE_TYPE(ReadOrWrite, HeadOrTail)   (((UINT32)(HeadOrTail) << 1) | (ReadOrWrite))
#define	OS_QUEUE_READ_WRITE_GET(type)   ((type) & 0x01U)
#define	OS_QUEUE_READ_HEAD   (OS_QUEUE_READ | (OS_QUEUE_HEAD << 1))
#define	OS_QUEUE_READ_TAIL   (OS_QUEUE_READ | (OS_QUEUE_TAIL << 1))
#define	OS_QUEUE_WRITE_HEAD   (OS_QUEUE_WRITE | (OS_QUEUE_HEAD << 1))
#define	OS_QUEUE_WRITE_TAIL   (OS_QUEUE_WRITE | (OS_QUEUE_TAIL << 1))
#define	OS_QUEUE_OPERATE_GET(type)   ((type) & 0x03U)
#define	OS_QUEUE_IS_READ(type)   (OS_QUEUE_READ_WRITE_GET(type) == OS_QUEUE_READ)
#define	OS_QUEUE_IS_WRITE(type)   (OS_QUEUE_READ_WRITE_GET(type) == OS_QUEUE_WRITE)
#define	OS_QUEUE_ALLOC_DYNAMIC   0
#define	OS_QUEUE_ALLOC_STATIC   1
#define	OS_QUEUE_NORMAL   0
#define	GET_QUEUE_INDEX(queueId)   (queueId)
#define	GET_QUEUE_HANDLE(queueId)   (((LosQueueCB *)g_osAllQueue) + GET_QUEUE_INDEX(queueId))
#define	GET_QUEUE_LIST(ptr)   LOS_DL_LIST_ENTRY(ptr, LosQueueCB, readWriteList[OS_QUEUE_WRITE])

类型定义
typedef UINT32	QueueMsgHead

枚举
enum	QueueReadWrite { OS_QUEUE_READ = 0 , OS_QUEUE_WRITE = 1 , OS_QUEUE_N_RW = 2 }
enum	QueueHeadTail { OS_QUEUE_HEAD = 0 , OS_QUEUE_TAIL = 1 }

函数
VOID *	OsQueueMailAlloc (UINT32 queueId, VOID *mailPool, UINT32 timeout)
UINT32	OsQueueMailFree (UINT32 queueId, VOID *mailPool, VOID *mailMem)
UINT32	OsQueueInit (VOID)

变量
LosQueueCB *	g_osAllQueue

宏定义说明

GET_QUEUE_HANDLE

#define GET_QUEUE_HANDLE

(

queueId

)

(((LosQueueCB *)g_osAllQueue) + GET_QUEUE_INDEX(queueId))

GET_QUEUE_INDEX

#define GET_QUEUE_INDEX

(

queueId

)

(queueId)

GET_QUEUE_LIST

#define GET_QUEUE_LIST

(

ptr

)

LOS_DL_LIST_ENTRY(ptr, LosQueueCB, readWriteList[OS_QUEUE_WRITE])

OS_QUEUE_ALLOC_DYNAMIC

#define OS_QUEUE_ALLOC_DYNAMIC   0

OS_QUEUE_ALLOC_STATIC

#define OS_QUEUE_ALLOC_STATIC   1

OS_QUEUE_IS_READ

#define OS_QUEUE_IS_READ

(

type

)

(OS_QUEUE_READ_WRITE_GET(type) == OS_QUEUE_READ)

OS_QUEUE_IS_WRITE

#define OS_QUEUE_IS_WRITE

(

type

)

(OS_QUEUE_READ_WRITE_GET(type) == OS_QUEUE_WRITE)

OS_QUEUE_NORMAL

#define OS_QUEUE_NORMAL   0

OS_QUEUE_OPERATE_GET

#define OS_QUEUE_OPERATE_GET

(

type

)

((type) & 0x03U)

OS_QUEUE_OPERATE_TYPE

#define OS_QUEUE_OPERATE_TYPE	(		ReadOrWrite,
			HeadOrTail
	)		(((UINT32)(HeadOrTail) << 1) | (ReadOrWrite))

OS_QUEUE_READ_HEAD

#define OS_QUEUE_READ_HEAD   (OS_QUEUE_READ | (OS_QUEUE_HEAD << 1))

OS_QUEUE_READ_TAIL

#define OS_QUEUE_READ_TAIL   (OS_QUEUE_READ | (OS_QUEUE_TAIL << 1))

OS_QUEUE_READ_WRITE_GET

#define OS_QUEUE_READ_WRITE_GET

(

type

)

((type) & 0x01U)

OS_QUEUE_WRITE_HEAD

#define OS_QUEUE_WRITE_HEAD   (OS_QUEUE_WRITE | (OS_QUEUE_HEAD << 1))

OS_QUEUE_WRITE_TAIL

#define OS_QUEUE_WRITE_TAIL   (OS_QUEUE_WRITE | (OS_QUEUE_TAIL << 1))

类型定义说明

QueueMsgHead

typedef UINT32 QueueMsgHead

枚举类型说明

QueueHeadTail

enum QueueHeadTail

枚举值
OS_QUEUE_HEAD
OS_QUEUE_TAIL

QueueReadWrite

enum QueueReadWrite

枚举值
OS_QUEUE_READ
OS_QUEUE_WRITE
OS_QUEUE_N_RW

函数说明

OsQueueInit()

UINT32 OsQueueInit ( VOID  )

extern

OsQueueMailAlloc()

VOID * OsQueueMailAlloc ( UINT32  queueId, VOID *  mailPool, UINT32  timeout  )

extern

OsQueueMailFree()

UINT32 OsQueueMailFree ( UINT32  queueId, VOID *  mailPool, VOID *  mailMem  )

extern

变量说明

g_osAllQueue

LosQueueCB* g_osAllQueue

extern
