wlan_mib_dot11phyhtentry_stru结构体 参考

#include <wlan_mib_hcm.h>

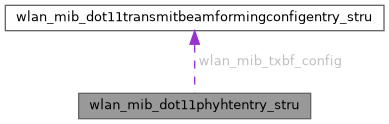

wlan_mib_dot11phyhtentry_stru 的协作图:
Collaboration graph
[图例]

成员变量

oal_bool_enum_uint8 dot11_2g_40mhz_operation_implemented: 1

oal_bool_enum_uint8 dot11_5g_40mhz_operation_implemented: 1

oal_bool_enum_uint8 dot11_ht_greenfield_option_implemented: 1

oal_bool_enum_uint8 dot11_short_gi_option_in_twenty_implemented: 1

oal_bool_enum_uint8 dot112_g_short_gi_option_in_forty_implemented: 1

oal_bool_enum_uint8 dot115_g_short_gi_option_in_forty_implemented: 1

oal_bool_enum_uint8 dot11_ldpc_coding_option_implemented: 1

oal_bool_enum_uint8 dot11_ldpc_coding_option_activated: 1

oal_bool_enum_uint8 dot11_tx_stbc_option_implemented: 1

oal_bool_enum_uint8 dot11_tx_stbc_option_activated: 1

oal_bool_enum_uint8 dot11_rx_stbc_option_implemented: 1

oal_bool_enum_uint8 dot11_tx_mcs_set_defined: 1

oal_bool_enum_uint8 dot11_tx_rx_mcs_set_not_equal: 1

oal_bool_enum_uint8 dot11_tx_unequal_modulation_supported: 1

oal_bool_enum_uint8 en_resv: 2

osal_u32 dot11_highest_supported_data_rate

osal_u32 dot11_tx_maximum_number_spatial_streams_supported

wlan_mib_dot11transmitbeamformingconfigentry_stru wlan_mib_txbf_config


结构体成员变量说明

◆ dot112_g_short_gi_option_in_forty_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot112_g_short_gi_option_in_forty_implemented

◆ dot115_g_short_gi_option_in_forty_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot115_g_short_gi_option_in_forty_implemented

◆ dot11_2g_40mhz_operation_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_2g_40mhz_operation_implemented

◆ dot11_5g_40mhz_operation_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_5g_40mhz_operation_implemented

◆ dot11_highest_supported_data_rate

osal_u32 wlan_mib_dot11phyhtentry_stru::dot11_highest_supported_data_rate

◆ dot11_ht_greenfield_option_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_ht_greenfield_option_implemented

◆ dot11_ldpc_coding_option_activated

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_ldpc_coding_option_activated

◆ dot11_ldpc_coding_option_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_ldpc_coding_option_implemented

◆ dot11_rx_stbc_option_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_rx_stbc_option_implemented

◆ dot11_short_gi_option_in_twenty_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_short_gi_option_in_twenty_implemented

◆ dot11_tx_maximum_number_spatial_streams_supported

osal_u32 wlan_mib_dot11phyhtentry_stru::dot11_tx_maximum_number_spatial_streams_supported

◆ dot11_tx_mcs_set_defined

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_tx_mcs_set_defined

◆ dot11_tx_rx_mcs_set_not_equal

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_tx_rx_mcs_set_not_equal

◆ dot11_tx_stbc_option_activated

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_tx_stbc_option_activated

◆ dot11_tx_stbc_option_implemented

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_tx_stbc_option_implemented

◆ dot11_tx_unequal_modulation_supported

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::dot11_tx_unequal_modulation_supported

◆ en_resv

oal_bool_enum_uint8 wlan_mib_dot11phyhtentry_stru::en_resv

◆ wlan_mib_txbf_config

wlan_mib_dot11transmitbeamformingconfigentry_stru wlan_mib_dot11phyhtentry_stru::wlan_mib_txbf_config
