iot_sfc.c 文件参考

#include "iot_errno.h"
#include "sfc.h"
#include "iot_flash.h"

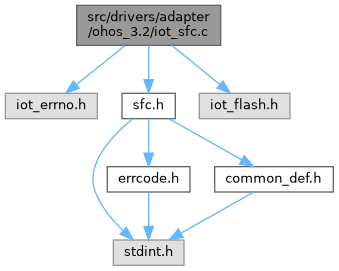

iot_sfc.c 的引用(Include)关系图:

函数
unsigned int	IoTFlashInit (void)
unsigned int	IoTFlashDeinit (void)
unsigned int	IoTFlashWrite (unsigned int flashOffset, unsigned int size, const unsigned char *ramData, unsigned char doErase)
unsigned int	IoTFlashRead (unsigned int flashOffset, unsigned int size, unsigned char *ramData)
unsigned int	IoTFlashErase (unsigned int flashOffset, unsigned int size)

变量
const sfc_flash_config_t	sfc_cfg

函数说明

IoTFlashDeinit()

unsigned int IoTFlashDeinit

(

void

)

IoTFlashErase()

unsigned int IoTFlashErase	(	unsigned int	flashOffset,
		unsigned int	size
	)

IoTFlashInit()

unsigned int IoTFlashInit

(

void

)

IoTFlashRead()

unsigned int IoTFlashRead	(	unsigned int	flashOffset,
		unsigned int	size,
		unsigned char *	ramData
	)

IoTFlashWrite()

unsigned int IoTFlashWrite	(	unsigned int	flashOffset,
		unsigned int	size,
		const unsigned char *	ramData,
		unsigned char	doErase
	)

变量说明

sfc_cfg

const sfc_flash_config_t sfc_cfg

初始值:

= {
    .read_type = FAST_READ_QUAD_OUTPUT,
    .write_type = PAGE_PROGRAM,
    .mapping_addr = 0x200000,
    .mapping_size = 0x800000,
}

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2024-2024. All rights reserved.

Description: Provides iot_flash driver source
History:
2024-01-09， Create file.
