rsa.c 文件参考

#include "hal_pke_reg.h"
#include "hal_pke.h"
#include "crypto_osal_adapt.h"
#include "crypto_drv_common.h"
#include "drv_common_pke.h"
#include "rsa.h"

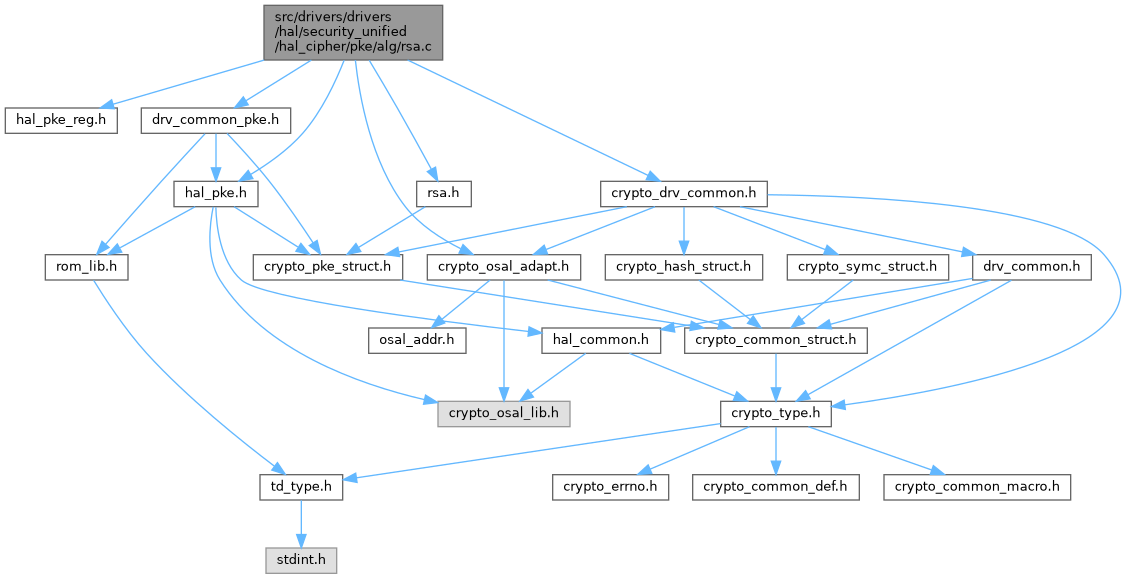

rsa.c 的引用(Include)关系图:

结构体
struct	rrn_loop_table

宏定义
#define	pke_data_ptr_chk(ptr)    crypto_chk_return((ptr) == TD_NULL, PKE_COMPAT_ERRNO(ERROR_PARAM_IS_NULL), "%s is NULL\n", #ptr)
#define	DRV_PKE_CAL_LEN_1536   192
#define	DRV_PKE_CAL_LEN_320   40
#define	MAX_OFFSET_OF_VALID_BIT   2
#define	LOOP_NUMBER_4096   8
#define	LOOP_NUMBER_3072   10
#define	LOOP_NUMBER_2048   7
#define	LOOP_NUMBER_1536   9
#define	LOOP_NUMBER_1024   6
#define	LOOP_NUMBER_192   6
#define	LOOP_NUMBER_256   4
#define	LOOP_NUMBER_320   6
#define	LOOP_NUMBER_384   7
#define	LOOP_NUMBER_512   5
#define	MAX_RRN_SUPPORT_TYPE   10

枚举
enum	rsa_mod_mode { RSA_MOD_ADD , RSA_MOD_SUB , RSA_MOD_MUL }

函数
td_s32	rsa_rrn (const td_u8 *n, const td_u32 key_size, const td_u32 aligned_len, td_u8 *rrn)
	rrn = 2^(2*n_bit_len) mod n.
td_s32	update_rsa_modulus (const td_u8 *n, const td_u32 n_len, const td_u32 aligned_len CIPHER_CHECK_WORD)
td_s32	rsa_regular_mul (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *c CIPHER_CHECK_WORD)
td_s32	rsa_mod (const drv_pke_data *a, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = a mod p.
td_s32	pke_rsa_mod_common_process (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, td_u32 *aligned_len, rsa_mod_mode mode)
td_s32	rsa_add_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a + b) mod p
td_s32	rsa_sub_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a - b) mod p. a could be smaller than b.
td_s32	rsa_mul_mod (const drv_pke_data *a, const drv_pke_data *b, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = (a * b) mod p use montgomery modular multiplication. before call this API, you should have call rsa_rrn API to set rrn into rsa_addr_rr DRAM.
td_s32	rsa_inv_mod (const drv_pke_data *a, const drv_pke_data *p, const drv_pke_data *c CIPHER_CHECK_WORD)
	c = ~a mod p. where a * c mod p = 1 mod p.
td_s32	rsa_exp_mod (const drv_pke_data *n, const drv_pke_data *k, const drv_pke_data *in, const drv_pke_data *out CIPHER_CHECK_WORD)
	out = in ^ k mod n.

变量
const rrn_loop_table	g_rrn_loop_table [10]

宏定义说明

DRV_PKE_CAL_LEN_1536

#define DRV_PKE_CAL_LEN_1536   192

DRV_PKE_CAL_LEN_320

#define DRV_PKE_CAL_LEN_320   40

LOOP_NUMBER_1024

#define LOOP_NUMBER_1024   6

LOOP_NUMBER_1536

#define LOOP_NUMBER_1536   9

LOOP_NUMBER_192

#define LOOP_NUMBER_192   6

LOOP_NUMBER_2048

#define LOOP_NUMBER_2048   7

LOOP_NUMBER_256

#define LOOP_NUMBER_256   4

LOOP_NUMBER_3072

#define LOOP_NUMBER_3072   10

LOOP_NUMBER_320

#define LOOP_NUMBER_320   6

LOOP_NUMBER_384

#define LOOP_NUMBER_384   7

LOOP_NUMBER_4096

#define LOOP_NUMBER_4096   8

LOOP_NUMBER_512

#define LOOP_NUMBER_512   5

MAX_OFFSET_OF_VALID_BIT

#define MAX_OFFSET_OF_VALID_BIT   2

MAX_RRN_SUPPORT_TYPE

#define MAX_RRN_SUPPORT_TYPE   10

pke_data_ptr_chk

#define pke_data_ptr_chk

(

ptr

)

crypto_chk_return((ptr) == TD_NULL, PKE_COMPAT_ERRNO(ERROR_PARAM_IS_NULL), "%s is NULL\n", #ptr)

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2022-2022. All rights reserved. Description: RSA algorithm emplement.

Create: 2022-08-18

枚举类型说明

rsa_mod_mode

enum rsa_mod_mode

枚举值
RSA_MOD_ADD
RSA_MOD_SUB
RSA_MOD_MUL

函数说明

pke_rsa_mod_common_process()

td_s32 pke_rsa_mod_common_process	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		td_u32 *	aligned_len,
		rsa_mod_mode	mode
	)

rsa_add_mod()

td_s32 rsa_add_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a + b) mod p

rsa_exp_mod()

td_s32 rsa_exp_mod	(	const drv_pke_data *	n,
		const drv_pke_data *	k,
		const drv_pke_data *	in,
		const drv_pke_data *out	CIPHER_CHECK_WORD
	)

out = in ^ k mod n.

参数

n	the input modulo.
k	the exponent.
in	the input data.
out	the output data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

rsa_inv_mod()

td_s32 rsa_inv_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = ~a mod p. where a * c mod p = 1 mod p.

rsa_mod()

td_s32 rsa_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = a mod p.

参数

a	the input data, which bit length shouldn't more than 2 * p->bit_length.
p	the modulus.
c	the output data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

rsa_mul_mod()

td_s32 rsa_mul_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a * b) mod p use montgomery modular multiplication. before call this API, you should have call rsa_rrn API to set rrn into rsa_addr_rr DRAM.

rsa_regular_mul()

td_s32 rsa_regular_mul	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

rsa_rrn()

td_s32 rsa_rrn	(	const td_u8 *	n,
		const td_u32	key_size,
		const td_u32	aligned_len,
		td_u8 *	rrn
	)

rrn = 2^(2*n_bit_len) mod n.

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2022-2022. All rights reserved. Description: RSA algorithm header file.

Create: 2022-08-18

参数

n	for rsa n = p * q, for ecc it's prime the order of the base point G.
key_size	rsa key length in byte or ecc curve key length in byte.
rrn	the output rrn data. for RSA there is no need to get this data out to reset it into rsa_addr_rr, but for ecc, it's necessary, for there are two different address. which byte length is the same with n.
aligned_len	aligned length for calculate.

返回

td_s32 TD_SUCCESS or others.

rsa_sub_mod()

td_s32 rsa_sub_mod	(	const drv_pke_data *	a,
		const drv_pke_data *	b,
		const drv_pke_data *	p,
		const drv_pke_data *c	CIPHER_CHECK_WORD
	)

c = (a - b) mod p. a could be smaller than b.

update_rsa_modulus()

td_s32 update_rsa_modulus	(	const td_u8 *	n,
		const td_u32	n_len,
		const td_u32 aligned_len	CIPHER_CHECK_WORD
	)

变量说明

g_rrn_loop_table

const rrn_loop_table g_rrn_loop_table[10]

初始值:

= {
    {DRV_PKE_LEN_3072, &instr_rsa_rrn_add_3072,  10 },
    { 192 , &instr_rsa_rrn_add_3072,  9 },
    {DRV_PKE_LEN_192, &instr_rsa_rrn_add_3072,  6 },
    {DRV_PKE_LEN_256, &instr_rsa_rrn_add,  4 },
    { 40 , &instr_rsa_rrn_add_320,  6 },
    {DRV_PKE_LEN_384, &instr_rsa_rrn_add_3072,  7 },
    {DRV_PKE_LEN_512, &instr_rsa_rrn_add,  5 },
    {DRV_PKE_LEN_1024, &instr_rsa_rrn_add,  6 },
    {DRV_PKE_LEN_2048, &instr_rsa_rrn_add,  7 },
    {DRV_PKE_LEN_4096, &instr_rsa_rrn_add,  8 },
}
