hal_pke.c 文件参考

#include "hal_pke.h"
#include "hal_pke_reg.h"
#include "crypto_errno.h"
#include "crypto_osal_adapt.h"
#include "crypto_drv_common.h"
#include "crypto_common_macro.h"
#include "hal_cipher_trng.h"

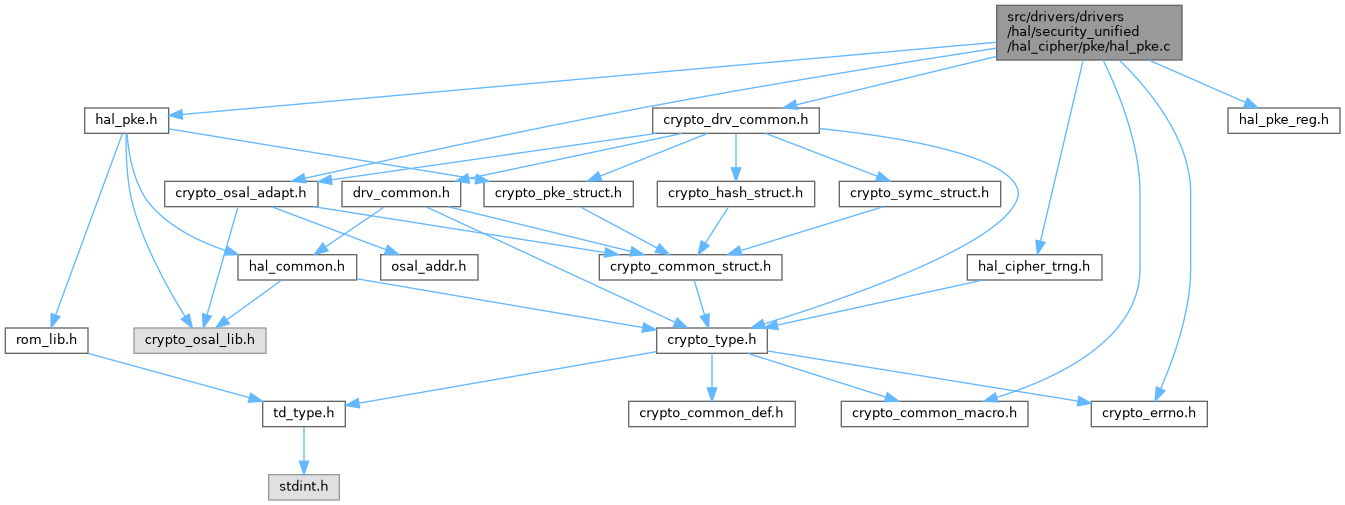

hal_pke.c 的引用(Include)关系图:

结构体
struct	pke_wait_event_type

宏定义
#define	PKE_COMPAT_ERRNO(err_code)   HAL_COMPAT_ERRNO(ERROR_MODULE_PKE, err_code)
#define	crypto_dump_buffer(fmt, args...)

函数
td_s32	pke_lock_condition (const td_void *param __attribute__((unused)))
td_void	hal_pke_calc_int_enable (void)
td_void	hal_pke_calc_int_disable (void)
td_s32	hal_pke_check_robust_warn (void)
td_s32	hal_pke_error_code (void)
td_s32	check_instr_rdy (pke_mode mode)
void	hal_pke_start_pre_process (void)
void	hal_pke_start0 (void)
	start PKE calculate in single instruction0 mode
void	hal_pke_start1 (void)
	start PKE calculate in sigle instruction1 mode
void	hal_pke_batch_start (void)
	start PKE calculate in batch processing mode
td_s32	hal_pke_wait_free (void)
	PKE wait for free in loop
td_s32	wait_free_condition (const td_void *param __attribute__((unused)))
td_s32	hal_pke_wait_free_int (void)
	PKE wait for free by interrupt
td_s32	hal_pke_init (void)
td_s32	hal_pke_deinit (void)
td_s32	get_lock_code (td_u32 *lock_code)
td_s32	hal_pke_lock (void)
void	hal_pke_unlock (void)
void	hal_pke_enable_noise (void)
void	hal_pke_disable_noise (void)
td_s32	hal_pke_pre_process (void)
	set mask random into registerfor set_ram and get_ram.
void	hal_pke_set_wait_event (crypto_wait_t *wait, const crypto_wait_timeout_interruptible wait_func, const td_u32 timeout_ms, const td_bool wait_done)
td_s32	hal_pke_check_free (void)
	check PKE busy, if success, then do next steps.
td_void	hal_pke_set_ram (td_u32 ram_section, const td_u8 *data, td_u32 data_len, td_u32 aligned_len CIPHER_CHECK_WORD)
	set data to PKE DRAM.
td_void	hal_pke_get_ram (td_u32 ram_section, td_u8 *data, td_u32 data_len CIPHER_CHECK_WORD)
	get result data in PKE DRAM
td_s32	hal_pke_clean_ram (void)
	clear the data in DRAM as random value. Only need to clear at the last calculate.
td_s32	hal_pke_set_mode (pke_mode mode, td_u32 single_instr, const rom_lib *batch_instr, pke_data_work_len work_len CIPHER_CHECK_WORD)
	set calculate mode, work_len and instr to register.
td_s32	hal_pke_start (pke_mode mode CIPHER_CHECK_WORD)
	start PKE calculate
td_s32	hal_pke_wait_done (void)
	PKE wait calculation finish
td_s32	hal_pke_get_align_val (const td_u32 len, td_u32 *aligned_len)
	Get the align val object of PKE, which depending on the chip version.
td_s32	hal_pke_set_mont_para (td_u32 low_bit, td_u32 high_bit CIPHER_CHECK_WORD)
	Set the montgomery parameter for modular multiplication.
td_s32	hal_pke_set_curve_param (const pke_ecc_init_param *init_param, const drv_pke_ecc_curve *ecc_curve)
td_s32	hal_pke_set_ed_param (const pke_ecc_init_param *init_param, const drv_pke_ecc_curve *ecc_curve)
td_s32	hal_pke_set_ecc_param (const pke_ecc_init_param *init_param, const drv_pke_ecc_curve *ecc_curve)
td_s32	hal_pke_set_init_param (const pke_ecc_init_param *init_param, const drv_pke_ecc_curve *ecc_curve)
	set the initial parameters into DRAM.

变量
td_u32	g_pke_initialize
pke_wait_event_type	g_pke_wait_event

宏定义说明

crypto_dump_buffer

#define crypto_dump_buffer	(		fmt,
			args...
	)

PKE_COMPAT_ERRNO

#define PKE_COMPAT_ERRNO

(

err_code

)

HAL_COMPAT_ERRNO(ERROR_MODULE_PKE, err_code)

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2022-2022. All rights reserved. Description: PKE driver HAL API and logical algorithm compelement.

Create: 2022-08-09

函数说明

check_instr_rdy()

td_s32 check_instr_rdy

(

pke_mode

mode

)

get_lock_code()

td_s32 get_lock_code

(

td_u32 *

lock_code

)

hal_pke_batch_start()

void hal_pke_batch_start

(

void

)

start PKE calculate in batch processing mode

hal_pke_calc_int_disable()

td_void hal_pke_calc_int_disable

(

void

)

hal_pke_calc_int_enable()

td_void hal_pke_calc_int_enable

(

void

)

hal_pke_check_free()

td_s32 hal_pke_check_free

(

void

)

check PKE busy, if success, then do next steps.

返回

td_s32 TD_SUCCESS or other.

hal_pke_check_robust_warn()

td_s32 hal_pke_check_robust_warn

(

void

)

hal_pke_clean_ram()

td_s32 hal_pke_clean_ram

(

void

)

clear the data in DRAM as random value. Only need to clear at the last calculate.

返回

td_s32

hal_pke_deinit()

td_s32 hal_pke_deinit

(

void

)

hal_pke_disable_noise()

void hal_pke_disable_noise

(

void

)

hal_pke_enable_noise()

void hal_pke_enable_noise

(

void

)

hal_pke_error_code()

td_s32 hal_pke_error_code

(

void

)

hal_pke_get_align_val()

td_s32 hal_pke_get_align_val	(	const td_u32	len,
		td_u32 *	aligned_len
	)

Get the align val object of PKE, which depending on the chip version.

参数

len	the input data len.
aligned_len	the aligned length used to calculate.

hal_pke_get_ram()

td_void hal_pke_get_ram	(	td_u32	ram_section,
		td_u8 *	data,
		td_u32 data_len	CIPHER_CHECK_WORD
	)

get result data in PKE DRAM

参数

ram_section	the address of offset block in DRAM for data to get out.
data	the data value.
data_len	the effective length of data in byte.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

hal_pke_init()

td_s32 hal_pke_init

(

void

)

Copyright (c) HiSilicon (Shanghai) Technologies Co., Ltd. 2023-2023. All rights reserved. Description: Corresponds ROM functions to their implementation ROM addresses.

Create: 2023-05-17

hal_pke_lock()

td_s32 hal_pke_lock

(

void

)

hal_pke_pre_process()

td_s32 hal_pke_pre_process

(

void

)

set mask random into registerfor set_ram and get_ram.

返回

td_s32

hal_pke_set_curve_param()

td_s32 hal_pke_set_curve_param	(	const pke_ecc_init_param *	init_param,
		const drv_pke_ecc_curve *	ecc_curve
	)

hal_pke_set_ecc_param()

td_s32 hal_pke_set_ecc_param	(	const pke_ecc_init_param *	init_param,
		const drv_pke_ecc_curve *	ecc_curve
	)

hal_pke_set_ed_param()

td_s32 hal_pke_set_ed_param	(	const pke_ecc_init_param *	init_param,
		const drv_pke_ecc_curve *	ecc_curve
	)

hal_pke_set_init_param()

td_s32 hal_pke_set_init_param	(	const pke_ecc_init_param *	init_param,
		const drv_pke_ecc_curve *	ecc_curve
	)

set the initial parameters into DRAM.

参数

init_param	the initial parameters.
ecc_curve	the ecc curve type.

返回

td_s32 TD_SUCCESS or others.

hal_pke_set_mode()

td_s32 hal_pke_set_mode	(	pke_mode	mode,
		td_u32	single_instr,
		const rom_lib *	batch_instr,
		pke_data_work_len work_len	CIPHER_CHECK_WORD
	)

set calculate mode, work_len and instr to register.

参数

mode	calculation mode, see pke_mode.
single_instr	If the mode is PKE_SINGLE_INSTR0 or PKE_SINGLE_INSTR1, then set this. Otherwise, set it 0.
batch_instr	If the mode is PKE_BATCH_INSTR, then set this. Otherwise, set it TD_NULL.
work_len	work_len=ceiling(width/64), width is the data aligned bit width length, or work_len=ceiling(aligned_len/8).
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

hal_pke_set_mont_para()

td_s32 hal_pke_set_mont_para	(	td_u32	low_bit,
		td_u32 high_bit	CIPHER_CHECK_WORD
	)

Set the montgomery parameter for modular multiplication.

参数

low_bit	the low 32bit data.
high_bit	the high 32bit data.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

hal_pke_set_ram()

td_void hal_pke_set_ram	(	td_u32	ram_section,
		const td_u8 *	data,
		td_u32	data_len,
		td_u32 aligned_len	CIPHER_CHECK_WORD
	)

set data to PKE DRAM.

参数

ram_section	the address of offset block in DRAM for data to write into.
data	the data value.
data_len	the effective length of data in byte.
aligned_len	the aligned length of data in byte when participate in calculate. In old IP, this is the klen, such as 32(256bit), 48(384bit), 64(512bit), 68(521bit), etc. This API mainly used in RSA calculate, for ecc, the input curve parameters are aligned, no need to process.
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_void

hal_pke_set_wait_event()

void hal_pke_set_wait_event	(	crypto_wait_t *	wait,
		const crypto_wait_timeout_interruptible	wait_func,
		const td_u32	timeout_ms,
		const td_bool	wait_done
	)

hal_pke_start()

td_s32 hal_pke_start

(

pke_mode mode

CIPHER_CHECK_WORD

)

start PKE calculate

参数

mode	SINGLE_INSTR or BATCH_INSTR
CIPHER_CHECK_WORD	ifdef SEC_ENHANCE, the value is XOR result of parameters, otherwise it doesn't exist.

返回

td_s32 TD_SUCCESS or others.

hal_pke_start0()

void hal_pke_start0

(

void

)

start PKE calculate in single instruction0 mode

hal_pke_start1()

void hal_pke_start1

(

void

)

start PKE calculate in sigle instruction1 mode

hal_pke_start_pre_process()

void hal_pke_start_pre_process

(

void

)

hal_pke_unlock()

void hal_pke_unlock

(

void

)

hal_pke_wait_done()

td_s32 hal_pke_wait_done

(

void

)

PKE wait calculation finish

返回

td_s32

hal_pke_wait_free()

td_s32 hal_pke_wait_free

(

void

)

PKE wait for free in loop

返回

td_s32

hal_pke_wait_free_int()

td_s32 hal_pke_wait_free_int

(

void

)

PKE wait for free by interrupt

返回

td_s32

pke_lock_condition()

td_s32 pke_lock_condition

(

const td_void *param

__attribute__(unused)

)

wait_free_condition()

td_s32 wait_free_condition

(

const td_void *param

__attribute__(unused)

)

变量说明

g_pke_initialize

td_u32 g_pke_initialize

g_pke_wait_event

pke_wait_event_type g_pke_wait_event

初始值:

= {
    .wait = TD_NULL,
    .wait_func = TD_NULL,
    .timeout_ms = 0,
    .wait_done = TD_FALSE
}
