#include "los_config.h"

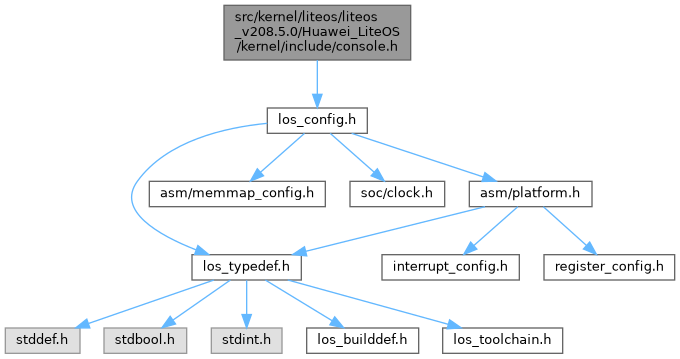

console.h 的引用(Include)关系图:

此图展示该文件直接或间接的被哪些文件引用了:

宏定义
#define	CONSOLE_SERIAL 1

#define	CONSOLE_TELNET 2

#define	STDIN 0

#define	STDOUT 1

#define	STDERR 2

#define	CONSOLE "/dev/console"

#define	CONSOLE_NAMELEN 16

#define	CONSOLE_CMD_RD_BLOCK_SERIAL 0x104

#define	CONSOLE_CMD_RD_BLOCK_TELNET 101

#define	CONSOLE_RD_BLOCK 1

#define	CONSOLE_RD_NONBLOCK 0

#define	CONSOLE_SHELL_KEY_EVENT 0x112

#define	CONSOLE_SHELL_EXITED 0x400

#define	CONSOLE_CONTROL_RIGHTS_CAPTURE 201

#define	CONSOLE_CONTROL_RIGHTS_RELEASE 202

#define	CONSOLE_CONTROL_CAPTURE_LINE 203

#define	CONSOLE_CONTROL_CAPTURE_CHAR 204

#define	CONSOLE_FIFO_SIZE 1024

#define	CONSOLE_NUM 2

函数
INT32	system_console_init (const CHAR *deviceName)
	Create a console device.

INT32	system_console_deinit (const CHAR *deviceName)
	Destroy a console device.

宏定义说明

◆ CONSOLE

#define CONSOLE "/dev/console"

◆ CONSOLE_CMD_RD_BLOCK_SERIAL

#define CONSOLE_CMD_RD_BLOCK_SERIAL 0x104

◆ CONSOLE_CMD_RD_BLOCK_TELNET

#define CONSOLE_CMD_RD_BLOCK_TELNET 101

◆ CONSOLE_CONTROL_CAPTURE_CHAR

#define CONSOLE_CONTROL_CAPTURE_CHAR 204

◆ CONSOLE_CONTROL_CAPTURE_LINE

#define CONSOLE_CONTROL_CAPTURE_LINE 203

◆ CONSOLE_CONTROL_RIGHTS_CAPTURE

#define CONSOLE_CONTROL_RIGHTS_CAPTURE 201

◆ CONSOLE_CONTROL_RIGHTS_RELEASE

#define CONSOLE_CONTROL_RIGHTS_RELEASE 202

◆ CONSOLE_FIFO_SIZE

#define CONSOLE_FIFO_SIZE 1024

◆ CONSOLE_NAMELEN

#define CONSOLE_NAMELEN 16

◆ CONSOLE_NUM

#define CONSOLE_NUM 2

◆ CONSOLE_RD_BLOCK

#define CONSOLE_RD_BLOCK 1

◆ CONSOLE_RD_NONBLOCK

#define CONSOLE_RD_NONBLOCK 0

◆ CONSOLE_SERIAL

#define CONSOLE_SERIAL 1

◆ CONSOLE_SHELL_EXITED

#define CONSOLE_SHELL_EXITED 0x400

◆ CONSOLE_SHELL_KEY_EVENT

#define CONSOLE_SHELL_KEY_EVENT 0x112

◆ CONSOLE_TELNET

#define CONSOLE_TELNET 2

◆ STDERR

#define STDERR 2

◆ STDIN

#define STDIN 0

◆ STDOUT

#define STDOUT 1

函数说明

◆ system_console_deinit()

INT32 system_console_deinit ( const CHAR * deviceName )

extern

Destroy a console device.

Description:: Destroy a console device specified by device name. The device shall already created by system_console_init before destroy.

参数

deviceName [IN] Charactor device name, can be #SERIAL or #TELNET

返回值

#-1	Deinitialize failed
#0	Deinitialize OK

Dependency:

console.h: the header file that contains the API declaration.

◆ system_console_init()

INT32 system_console_init ( const CHAR * deviceName )

extern

Create a console device.

Description:: Create a console device specified by device name.

注意: If a console device is already created, the same device cannot create again before it destroyed.

参数

deviceName [IN] Charactor device name, can be #SERIAL or #TELNET

返回值

#-1	Initialize failed
#0	Initialize OK

Dependency:

console.h: the header file that contains the API declaration.
