#include "oal_types.h"

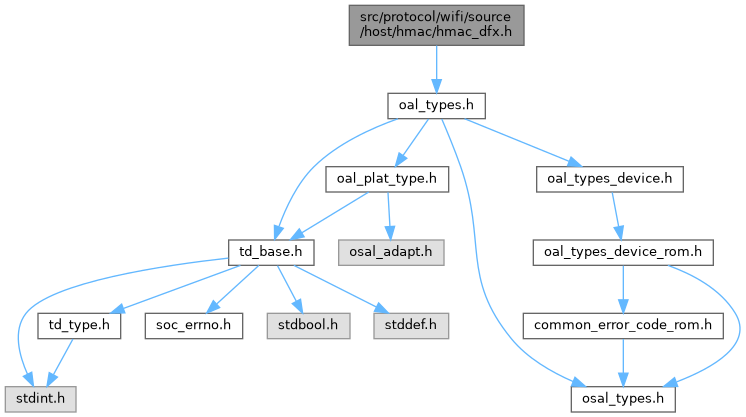

hmac_dfx.h 的引用(Include)关系图:

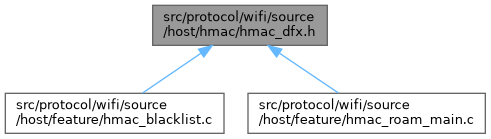

此图展示该文件直接或间接的被哪些文件引用了:

结构体
struct	unconn_reason_item

struct	user_unconn_reason_rd

struct	user_statistic_rd

struct	user_conn_info_rd

struct	user_conn_info_head

struct	special_frame_switch_stru

宏定义
#define	THIS_FILE_ID OAM_FILE_ID_HMAC_DFX_H

#define	MAX_CONN_INFO_RD_NUM 20

#define	MAX_DFX_USER_NUM 16

#define	MAX_DFX_USER_RD_LEN 512

#define	DFX_SUCCESS 0

#define	DFX_FAIL 1

#define	DFX_OFFLINE_PERIOD 50

#define	DFX_CONN_FAIL_PERIOD 10

#define	DFX_CONN_FAIL_CNT 3

类型定义
typedef osal_u8	user_conn_info_enum_uint8

typedef osal_u16	user_conn_fail_reason_enum_uint16

typedef osal_u16	user_conn_offline_reason_enum_uint16

typedef osal_u8	dfx_user_conn_info_record_cmd_enum_u8

typedef osal_void(*	dfx_user_conn_abnormal_record_cb) (osal_u8 vap_id, osal_u8 *mac, osal_u16 reason, osal_u16 type)

typedef osal_void(*	dfx_user_conn_statistic_record_cb) (osal_u8 vap_id, osal_u8 *mac, osal_u8 sub_type, osal_u16 mode, osal_u8 direction)

typedef osal_void(*	dfx_frame_report_hso_cb) (oal_netbuf_stru *netbuf, osal_u8 direction)

typedef osal_void(*	dfx_user_rate_rx_info_record_cb) (osal_u8 id, dmac_rx_ctl_stru *cb_ctrl)

typedef osal_void(*	dfx_scan_frame_report_hso_cb) (mac_bss_dscr_stru *bss_dscr)

枚举
enum	user_conn_info_enum { USER_CONN_FAIL = 0 , USER_CONN_OFFLINE , USER_CONN_STA_STAT , USER_CONN_AP_STAT , USER_CONN_INFO_BUTT }

enum	user_conn_fail_reason_enum { STA_CONN_CANNT_FIND_AP = 1 , STA_CONN_CHECK_BSS_DSCR_ERR , STA_CONN_SET_PARAM_ERR , STA_CONN_SYNC_CFG_ERR , STA_CONN_AUTH_FSM_ERR , STA_CONN_AUTH_RSP_ERR , STA_CONN_AUTH_TIMEOUT_ERR , STA_CONN_ASOC_FSM_ERR , STA_CONN_ASOC_RSP_ERR , STA_CONN_ASOC_TIMEOUT_ERR , AP_AUTH_RSP_ENCAP_ERR , AP_AUTH_FIND_USER_ERR , AP_AUTH_RSP_SEND_ERR , AP_ASOC_WAIT_TIMEOUT_ERR , AP_ASOC_NEGO_CAPABILITY_ERR , AP_ASOC_RSP_ENCAP_ERR , AP_ASOC_RSP_SEND_ERR , USER_CONN_FAIL_BUTT }

enum	user_conn_offline_reason_enum { STA_RCV_AP_DEAUTH_OR_DISASOC = 1 , STA_UP_OTHER_VAP_CLEAN_BSS , AP_RCV_STA_DEAUTH , AP_RCV_STA_DISASOC , AP_BLACKLIST_DEL_STA , AP_DOWN_DEL_STA , AP_AUTH_RSP_DEL_OTHER_STA , AP_CLEAN_BSS , AP_STA_NOUP_RCV_DATA , CFG_KICK_USER , PMF_SA_QUERY_TIMEOUT_DEL_USER , HMAC_DISASOC_NOTICE , ROAM_CONNECTING_FAIL , ROAM_HANDSHAKE_FAIL , USER_CONN_OFFLINE_BUTT }

enum	dfx_user_conn_info_record_cmd_enum { DFX_USER_CONN_INFO_RECORD_CMD_ENABLE , DFX_USER_CONN_INFO_RECORD_CMD_DISABLE , DFX_USER_CONN_INFO_RECORD_CMD_FAIL , DFX_USER_CONN_INFO_RECORD_CMD_OFFLINE , DFX_USER_CONN_INFO_RECORD_CMD_STATISTIC , DFX_USER_CONN_INFO_RECORD_CMD_STATCLR , DFX_USER_CONN_INFO_RECORD_CMD_BUTT }

变量
static osal_u32	used

宏定义说明

◆ DFX_CONN_FAIL_CNT

#define DFX_CONN_FAIL_CNT 3

◆ DFX_CONN_FAIL_PERIOD

#define DFX_CONN_FAIL_PERIOD 10

◆ DFX_FAIL

#define DFX_FAIL 1

◆ DFX_OFFLINE_PERIOD

#define DFX_OFFLINE_PERIOD 50

◆ DFX_SUCCESS

#define DFX_SUCCESS 0

◆ MAX_CONN_INFO_RD_NUM

#define MAX_CONN_INFO_RD_NUM 20

◆ MAX_DFX_USER_NUM

#define MAX_DFX_USER_NUM 16

◆ MAX_DFX_USER_RD_LEN

#define MAX_DFX_USER_RD_LEN 512

◆ THIS_FILE_ID

#define THIS_FILE_ID OAM_FILE_ID_HMAC_DFX_H

类型定义说明

◆ dfx_frame_report_hso_cb

typedef osal_void(* dfx_frame_report_hso_cb) (oal_netbuf_stru *netbuf, osal_u8 direction)

◆ dfx_scan_frame_report_hso_cb

typedef osal_void(* dfx_scan_frame_report_hso_cb) (mac_bss_dscr_stru *bss_dscr)

◆ dfx_user_conn_abnormal_record_cb

typedef osal_void(* dfx_user_conn_abnormal_record_cb) (osal_u8 vap_id, osal_u8 *mac, osal_u16 reason, osal_u16 type)

◆ dfx_user_conn_info_record_cmd_enum_u8

typedef osal_u8 dfx_user_conn_info_record_cmd_enum_u8

◆ dfx_user_conn_statistic_record_cb

typedef osal_void(* dfx_user_conn_statistic_record_cb) (osal_u8 vap_id, osal_u8 *mac, osal_u8 sub_type, osal_u16 mode, osal_u8 direction)

◆ dfx_user_rate_rx_info_record_cb

typedef osal_void(* dfx_user_rate_rx_info_record_cb) (osal_u8 id, dmac_rx_ctl_stru *cb_ctrl)

◆ user_conn_fail_reason_enum_uint16

typedef osal_u16 user_conn_fail_reason_enum_uint16

◆ user_conn_info_enum_uint8

typedef osal_u8 user_conn_info_enum_uint8

◆ user_conn_offline_reason_enum_uint16

typedef osal_u16 user_conn_offline_reason_enum_uint16

枚举类型说明

◆ dfx_user_conn_info_record_cmd_enum

enum dfx_user_conn_info_record_cmd_enum

枚举值
DFX_USER_CONN_INFO_RECORD_CMD_ENABLE
DFX_USER_CONN_INFO_RECORD_CMD_DISABLE
DFX_USER_CONN_INFO_RECORD_CMD_FAIL
DFX_USER_CONN_INFO_RECORD_CMD_OFFLINE
DFX_USER_CONN_INFO_RECORD_CMD_STATISTIC
DFX_USER_CONN_INFO_RECORD_CMD_STATCLR
DFX_USER_CONN_INFO_RECORD_CMD_BUTT

◆ user_conn_fail_reason_enum

enum user_conn_fail_reason_enum

枚举值
STA_CONN_CANNT_FIND_AP
STA_CONN_CHECK_BSS_DSCR_ERR
STA_CONN_SET_PARAM_ERR
STA_CONN_SYNC_CFG_ERR
STA_CONN_AUTH_FSM_ERR
STA_CONN_AUTH_RSP_ERR
STA_CONN_AUTH_TIMEOUT_ERR
STA_CONN_ASOC_FSM_ERR
STA_CONN_ASOC_RSP_ERR
STA_CONN_ASOC_TIMEOUT_ERR
AP_AUTH_RSP_ENCAP_ERR
AP_AUTH_FIND_USER_ERR
AP_AUTH_RSP_SEND_ERR
AP_ASOC_WAIT_TIMEOUT_ERR
AP_ASOC_NEGO_CAPABILITY_ERR
AP_ASOC_RSP_ENCAP_ERR
AP_ASOC_RSP_SEND_ERR
USER_CONN_FAIL_BUTT

◆ user_conn_info_enum

enum user_conn_info_enum

枚举值
USER_CONN_FAIL
USER_CONN_OFFLINE
USER_CONN_STA_STAT
USER_CONN_AP_STAT
USER_CONN_INFO_BUTT

◆ user_conn_offline_reason_enum

enum user_conn_offline_reason_enum

枚举值
STA_RCV_AP_DEAUTH_OR_DISASOC
STA_UP_OTHER_VAP_CLEAN_BSS
AP_RCV_STA_DEAUTH
AP_RCV_STA_DISASOC
AP_BLACKLIST_DEL_STA
AP_DOWN_DEL_STA
AP_AUTH_RSP_DEL_OTHER_STA
AP_CLEAN_BSS
AP_STA_NOUP_RCV_DATA
CFG_KICK_USER
PMF_SA_QUERY_TIMEOUT_DEL_USER
HMAC_DISASOC_NOTICE
ROAM_CONNECTING_FAIL
ROAM_HANDSHAKE_FAIL
USER_CONN_OFFLINE_BUTT

变量说明

◆ used

osal_void used
